Mayan Armoured Stone - Roofing Kit
Couldn't load pickup availability
Key Features:
- Lightweight & Cost-Effective: Uses 43% less stone, reducing roof weight and material costs without compromising strength or durability.
- Low Pitch Capability: Certified waterproof at pitches as low as 17.5° (tested to BS PD CEN/TR 15601 standards).
- Simplified Installation: Utilises only three tile widths (300mm, 450mm, and 600mm), all 450mm long, making it easy to achieve a traditional broken bond pattern.
- Single Lap Design: Eliminates the need for large, heavy stones and significantly reduces installation time and skill requirements.

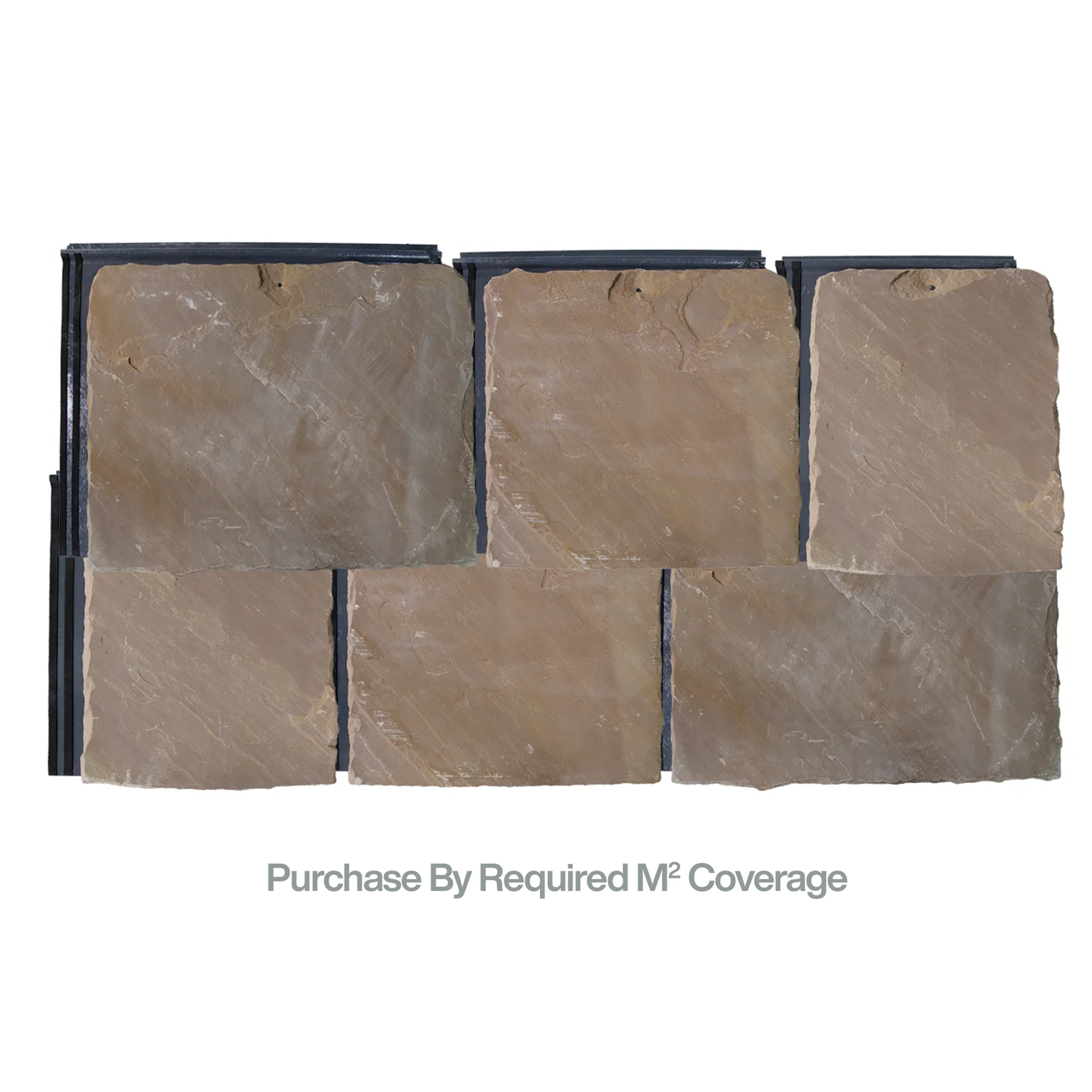

- Fire-Resistant Backing: Each tile is made from premium natural limestone bonded to a fire-resistant GRP (glass reinforced plastic) plate that replaces the lower double lap layers of conventional roofs.
Head lap
- Below 30 degrees – 100mm minimum lap / 350mm gauge - order 10% extra
- Above 30 degrees – 80mm minimum lap / 370mm gauge - order 5% extra

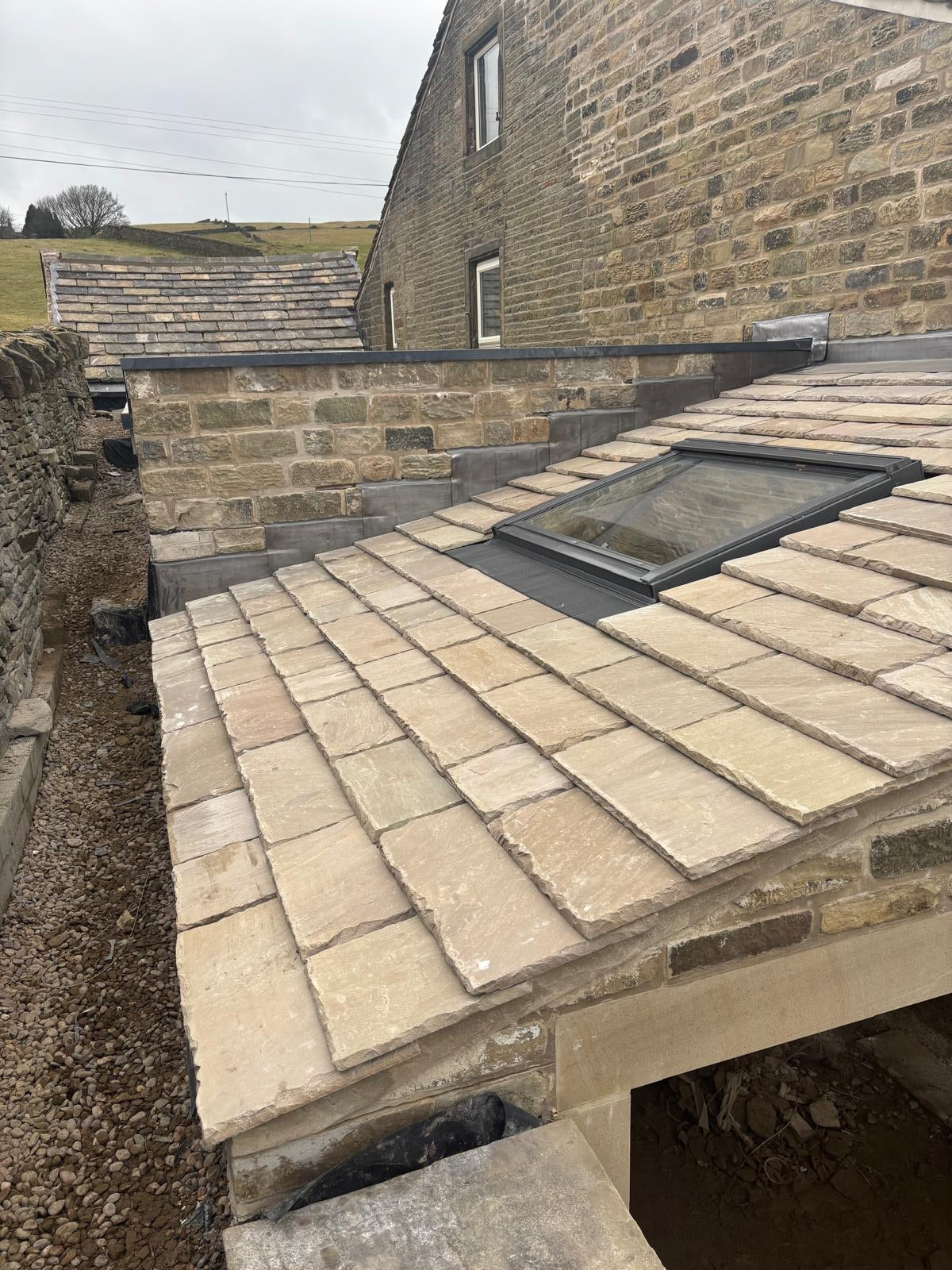

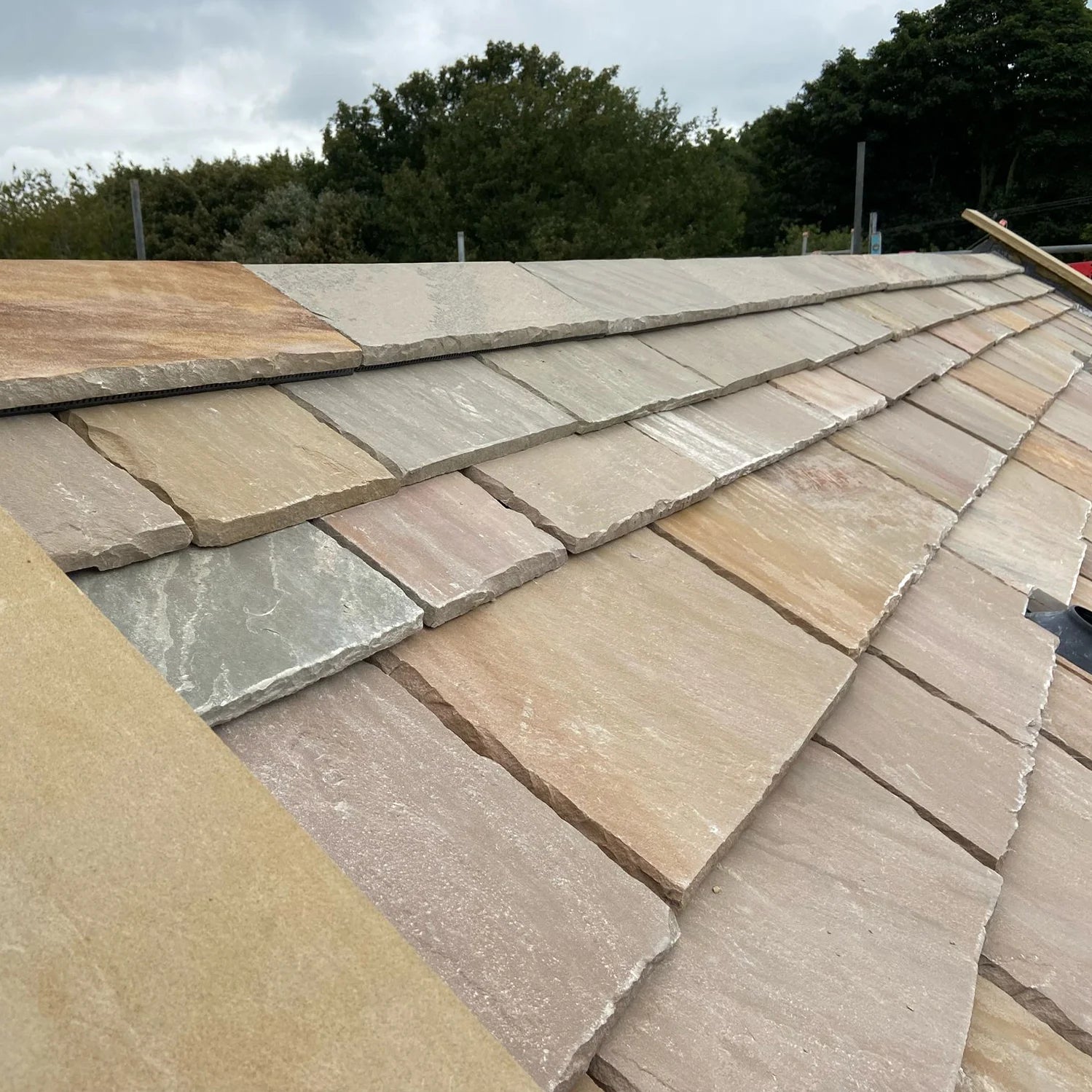

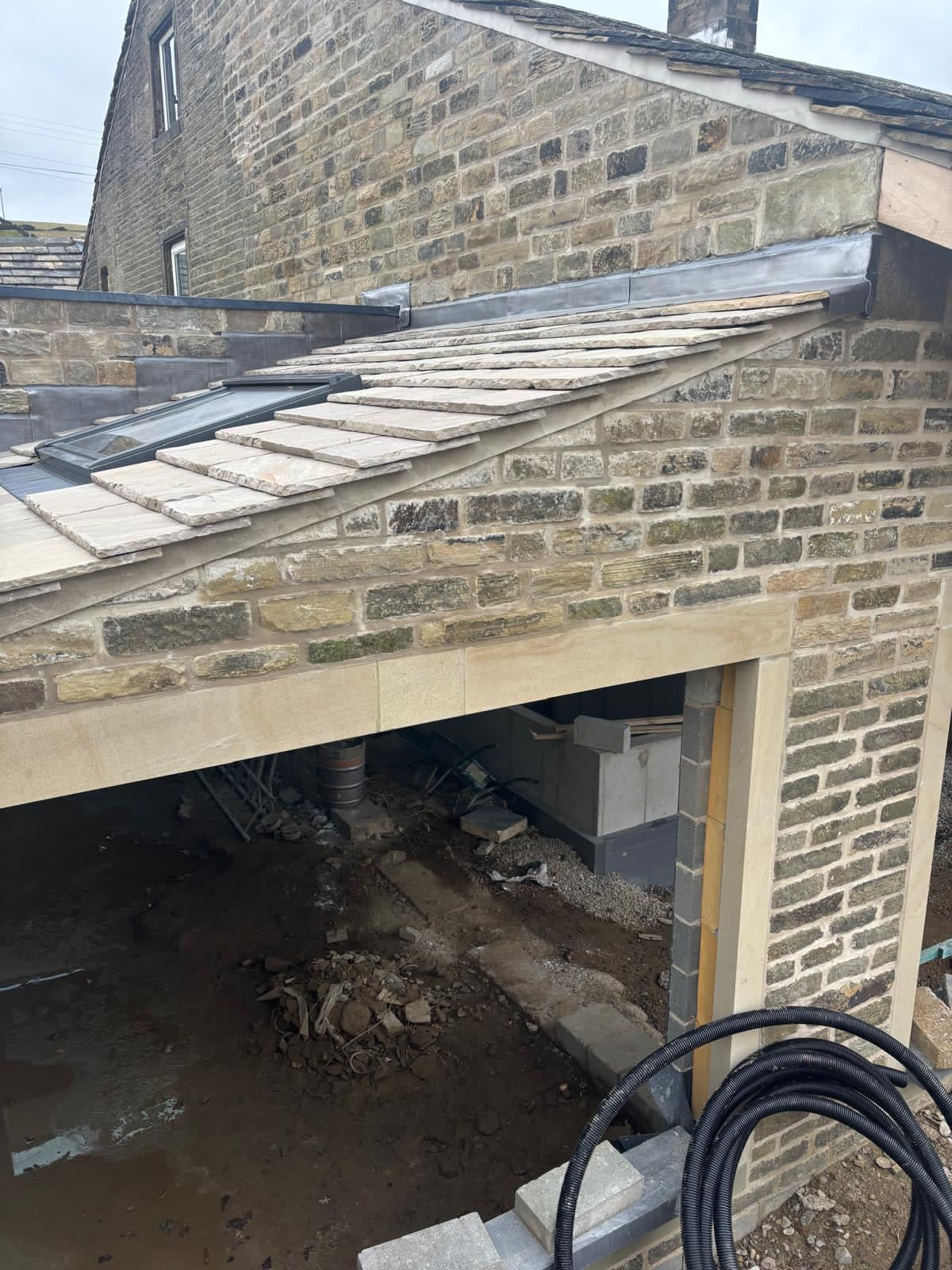

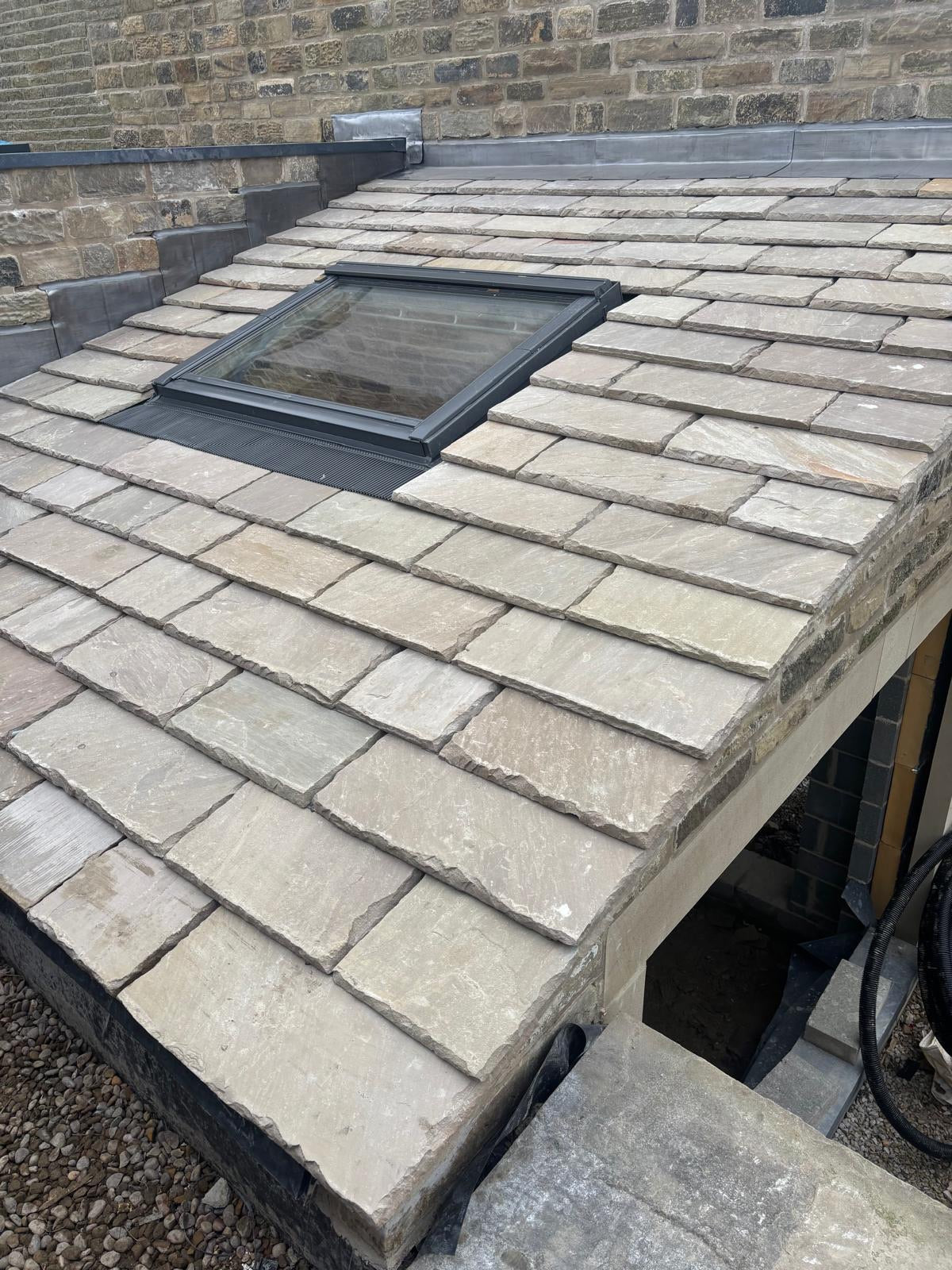

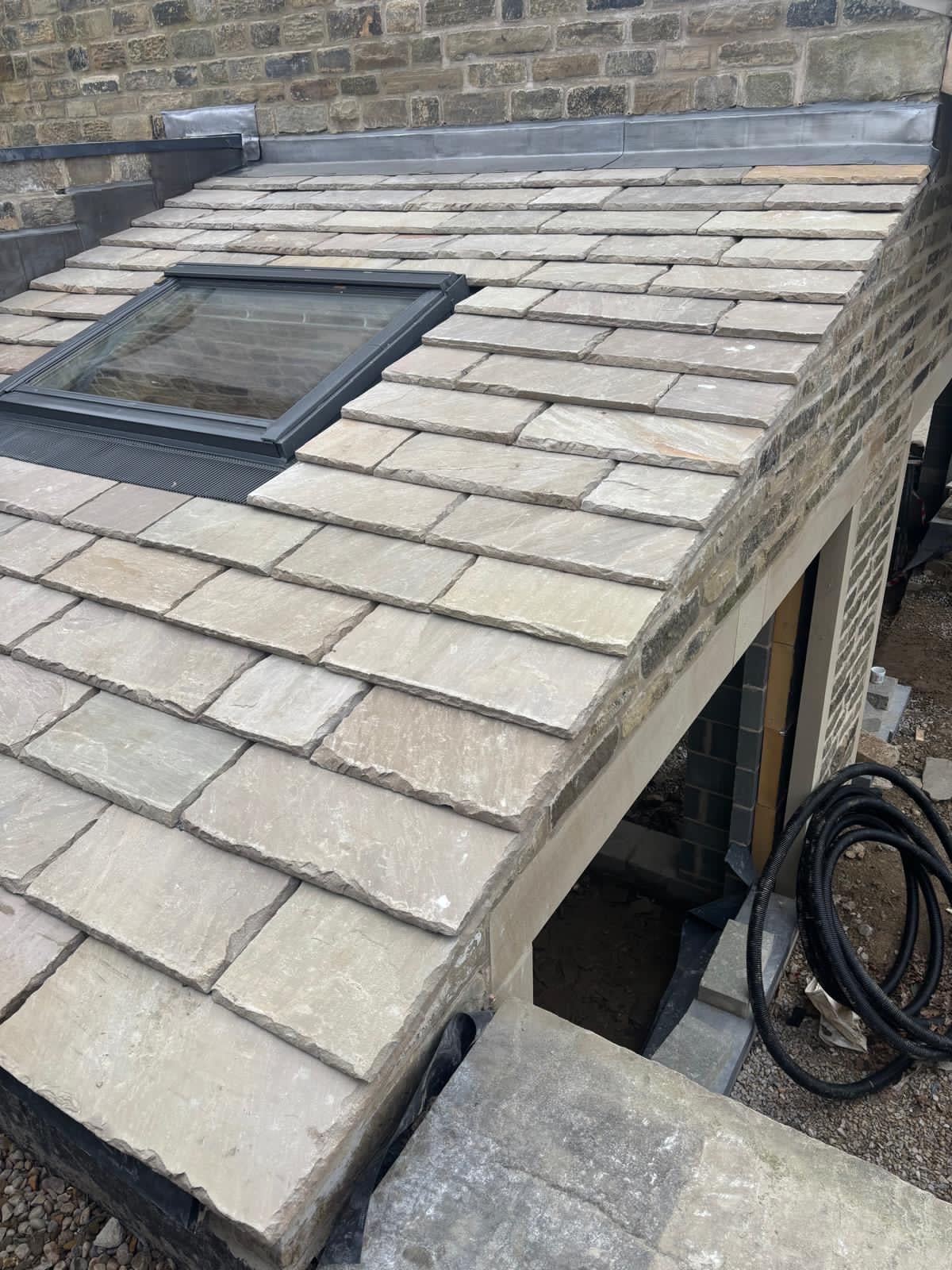

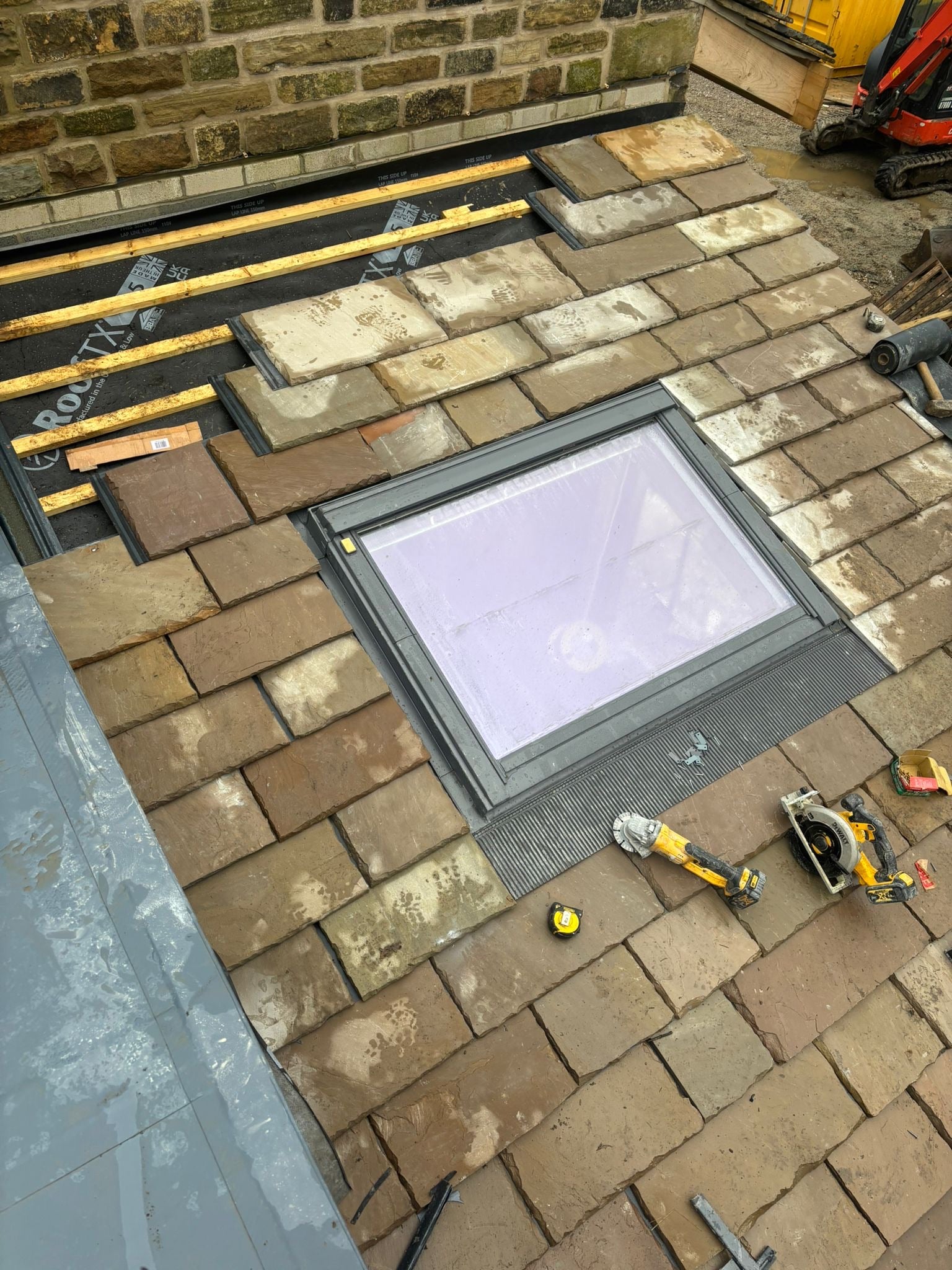

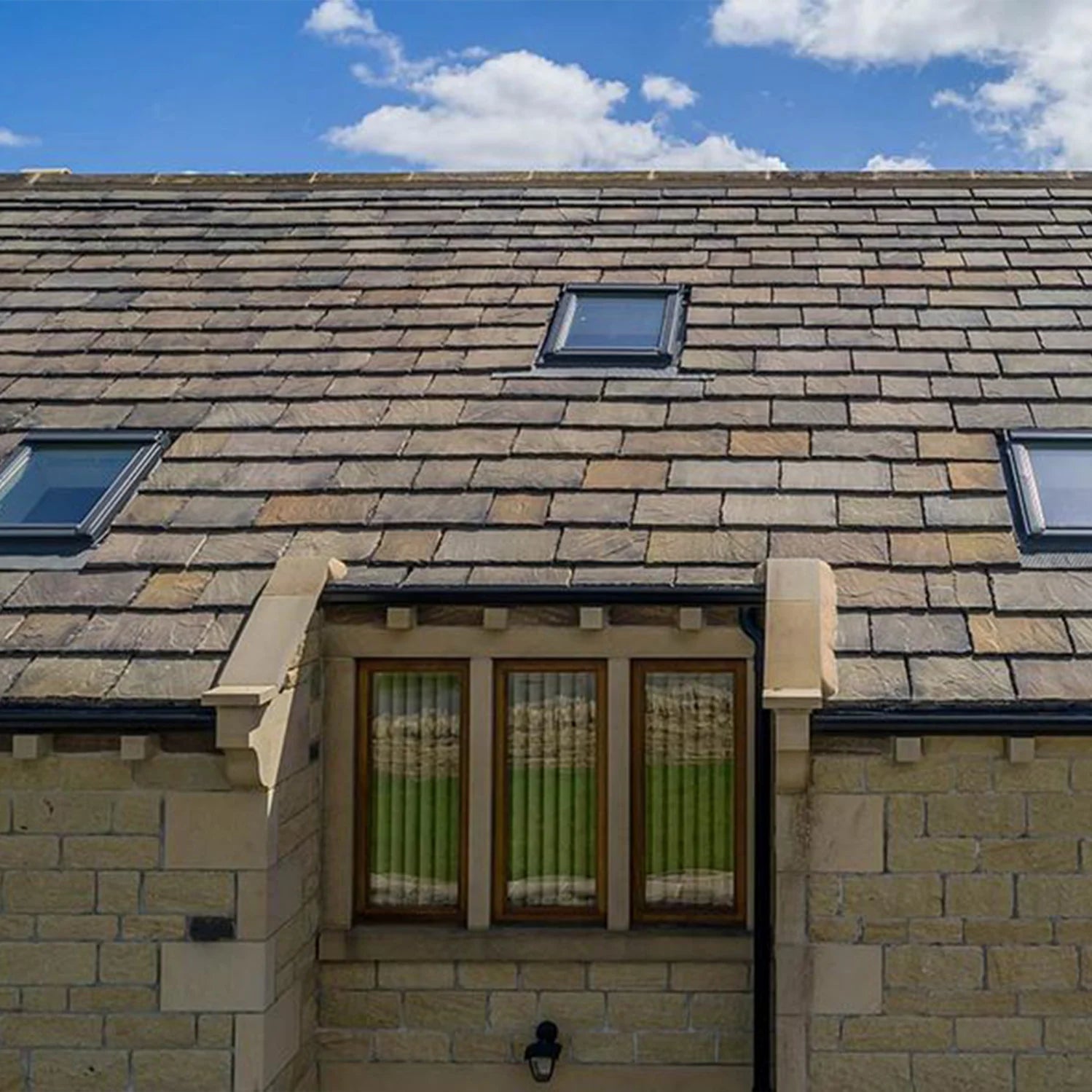

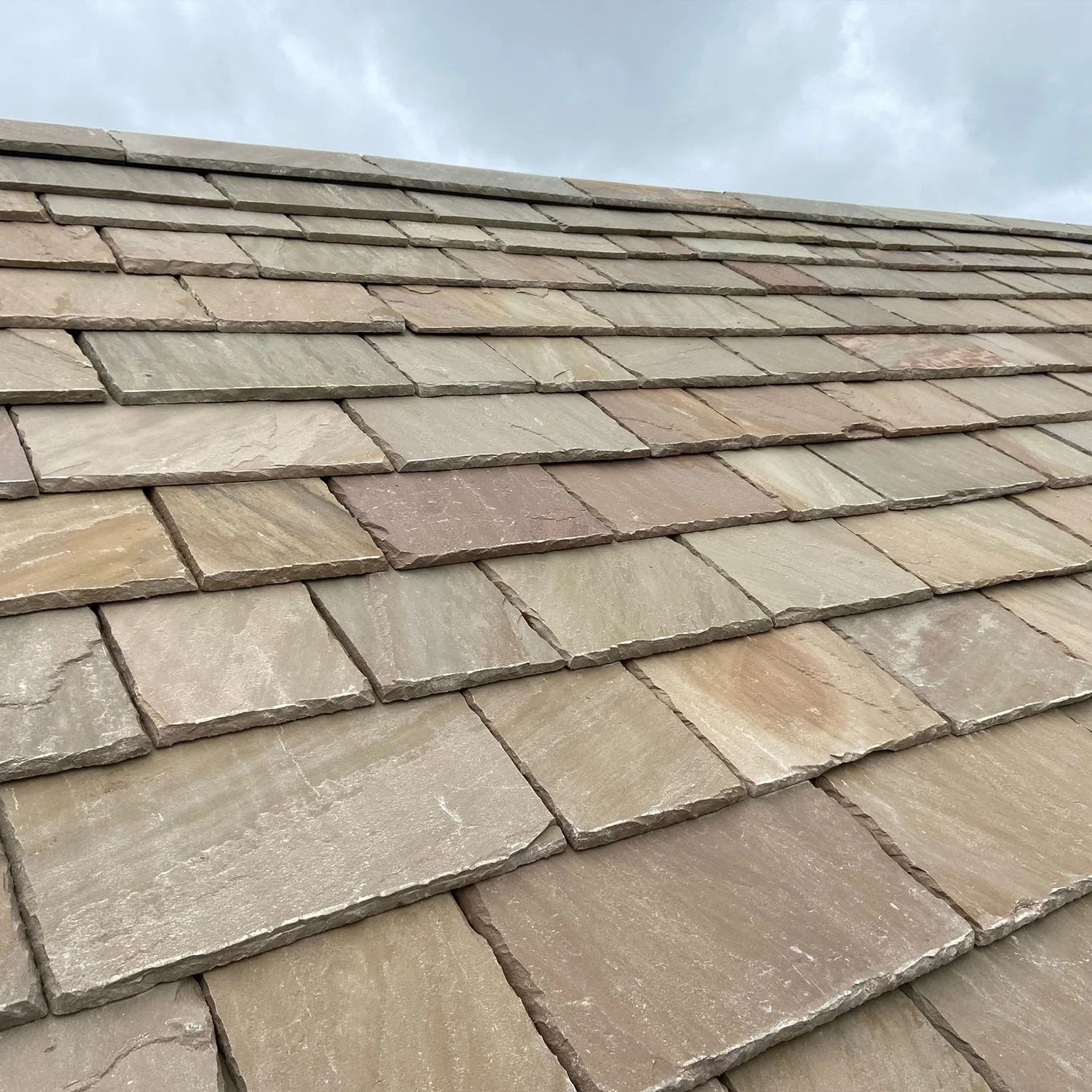

The Mayan Armoured stone roofing system is a breakthrough in natural stone roofing, combining timeless aesthetics with modern performance. Its patented design allows natural stone roofs to be installed on pitches as low as 17.5° — a significant improvement over traditional systems that typically require a minimum pitch of 35°.

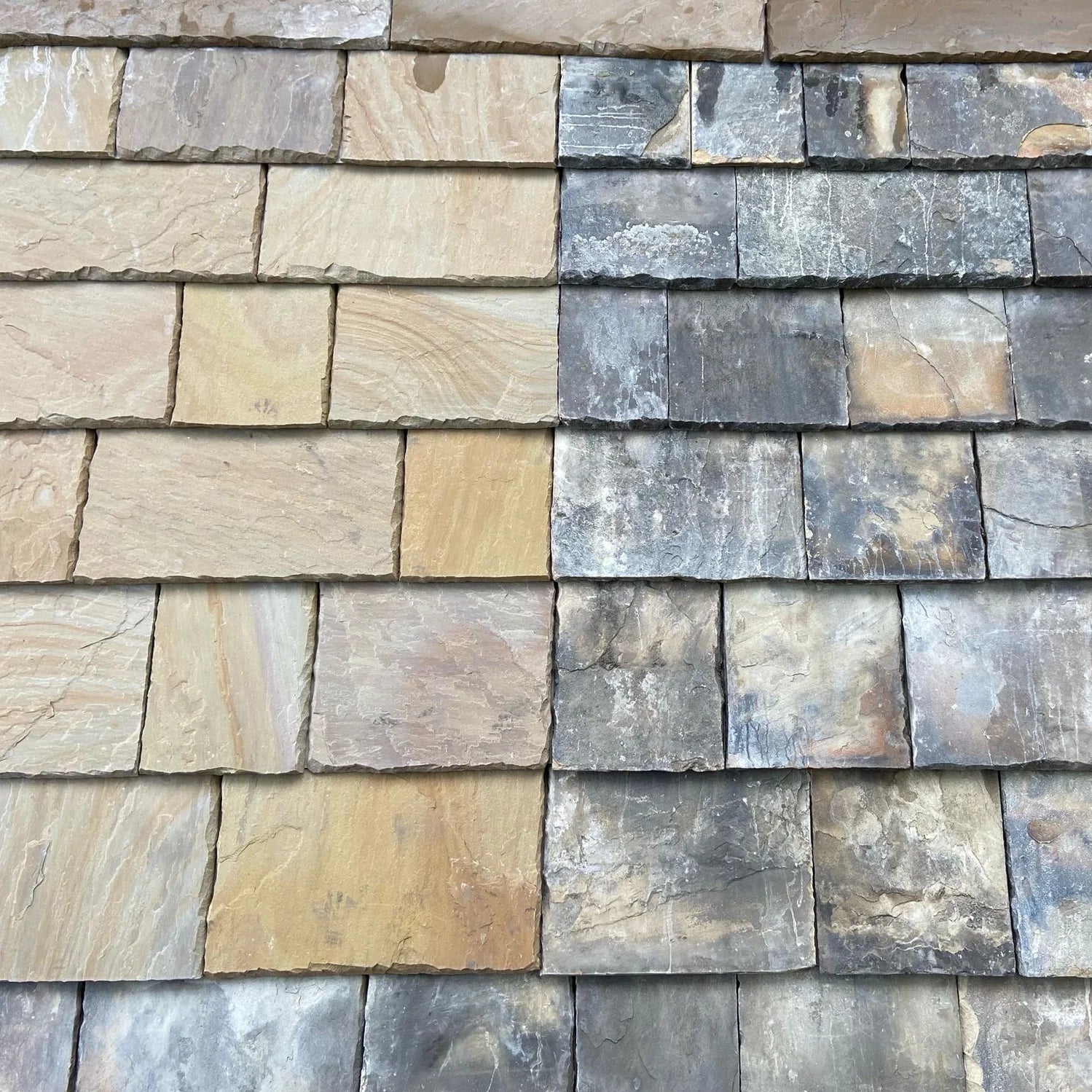

Armoured stone faithfully replicates the appearance of heritage stone roofing, available in a natural beige tone for seamless visual integration. The system is also compatible with reclaimed or recycled stone for conservation and restoration projects.
Advanced Waterproofing
- Integrated Water Bar: Precisely positions each tile for fast, accurate installation.
- Extended Side Lap: Ensures a secure fit between neighbouring tiles.
- EPDM Sealing System: Dual EPDM tape strips create a permanent, watertight seal.
Downloads & Data Sheets:

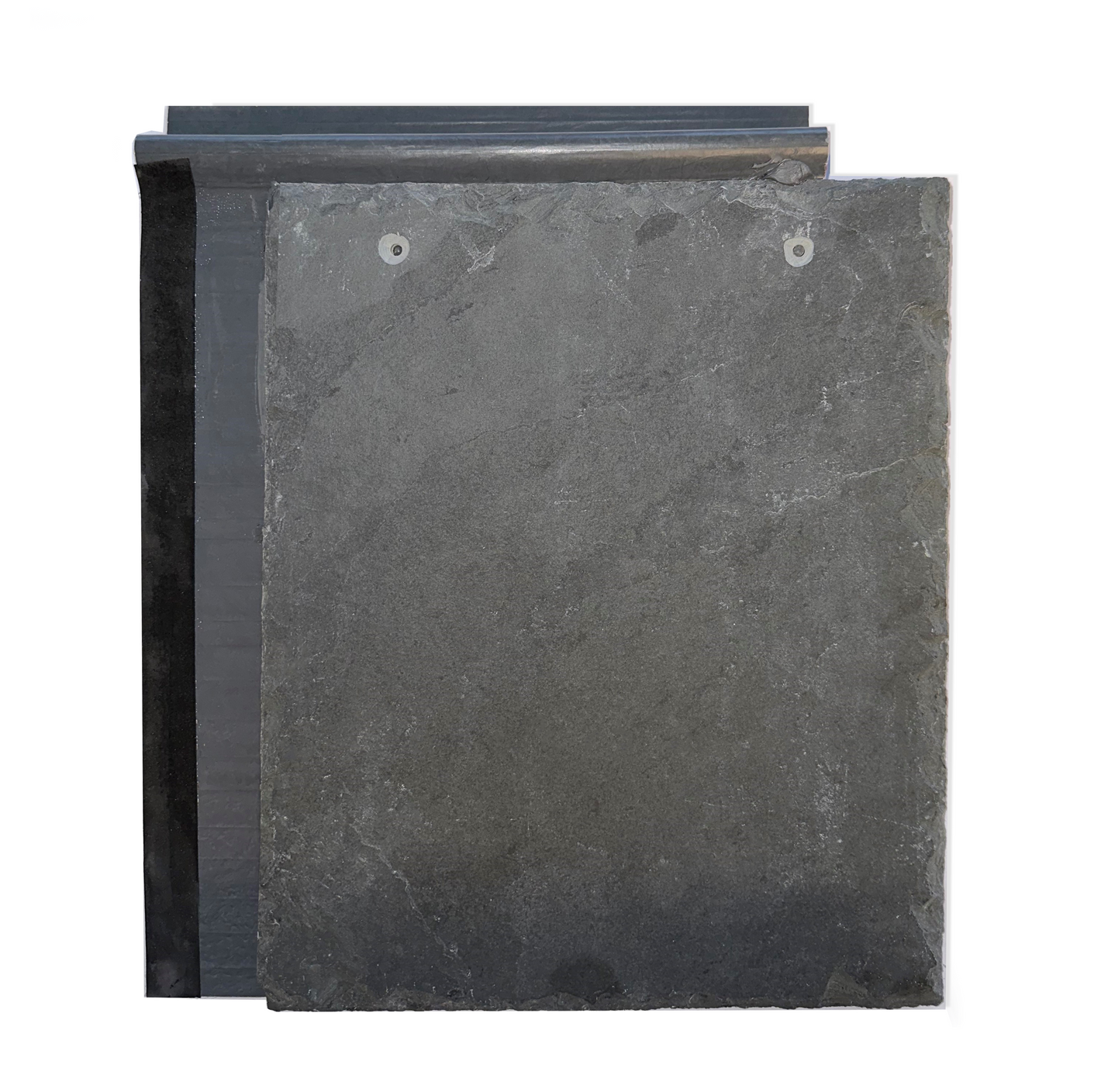

Armoured Slate Fitting Instructions
Key Features:
- Lightweight & Cost-Effective: Uses 43% less stone, reducing roof weight and material costs without compromising strength or durability.
- Low Pitch Capability: Certified waterproof at pitches as low as 17.5° (tested to BS PD CEN/TR 15601 standards).
- Simplified Installation: Utilises only three tile widths (300mm, 450mm, and 600mm), all 450mm long, making it easy to achieve a traditional broken bond pattern.
- Single Lap Design: Eliminates the need for large, heavy stones and significantly reduces installation time and skill requirements.
- Fire-Resistant Backing: Each tile is made from premium natural limestone bonded to a fire-resistant GRP (glass reinforced plastic) plate that replaces the lower double lap layers of conventional roofs.
Head lap
- Below 30 degrees – 100mm minimum lap / 350mm gauge - order 10% extra
- Above 30 degrees – 80mm minimum lap / 370mm gauge - order 5% extra
The Mayan Armoured stone roofing system is a breakthrough in natural stone roofing, combining timeless aesthetics with modern performance. Its patented design allows natural stone roofs to be installed on pitches as low as 17.5° — a significant improvement over traditional systems that typically require a minimum pitch of 35°.
Armoured stone faithfully replicates the appearance of heritage stone roofing, available in a natural beige tone for seamless visual integration. The system is also compatible with reclaimed or recycled stone for conservation and restoration projects.
Advanced Waterproofing
- Integrated Water Bar: Precisely positions each tile for fast, accurate installation.
- Extended Side Lap: Ensures a secure fit between neighbouring tiles.
- EPDM Sealing System: Dual EPDM tape strips create a permanent, watertight seal.
Downloads & Data Sheets:
