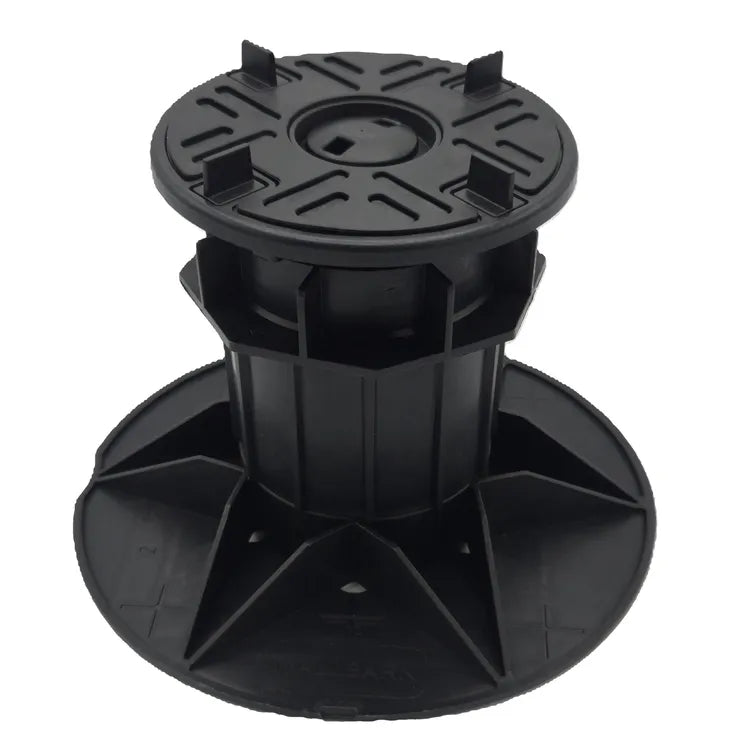

Wallbarn Balance Extra Self-Levelling Adjustable Pedestals 137mm - 237mm

• Adjustable Height: 137mm - 237mm
• Slope correction: Headpiece allows for slope correction of up to 5% (2.86°) in all directions
• Suitable for Paving: Supplied with 2mm Lug

• Suitable for Timber: 60mm Gap when laying timber (ideal for 50mm timber)
• Lug Height: 10mm
• Base Plate Diameter: 200mm

• Head Diameter: 120mm

• Material: High Quality Virgin Polypropylene
• Weight tolerance: 683kg with break point of over 1 tonne
• Use: Designed to provide a stable, level surface for paving and decking on uneven substrates

• Fire Classification: Euro Class E

• Warranty: 15 Years

Description:

Wallbarn Balance pedestals are engineered to counteract unevenness in the underlying deck surface, smoothing out imperfections such as felt overlaps or variations in paving slab thickness to create a level upper surface. Manufactured with a telescopic stem which is twisted by hand to achieve the height required to millimetric precision. With no tools other than your hands when using these pedestals, this saves on time and labour.

The weight of the slabs or decking frame holds the entire system securely in place, eliminating the need for adhesives or fixings to the pedestal. Rainwater drains freely between and beneath the slabs or deck boards, preventing standing water and reducing the risk of slips and hazards. This enhances health and safety, keeping both paved and decked surfaces drier and less slippery. Additionally, the elevated system promotes airflow, helping to prevent moisture build-up and prolonging the lifespan of your system.

Wallbarn Pedestals offer the highest quality pedestal range in the UK, delivering precision, durability, and efficiency for raised paving and decking applications. The Balance Pedestal range features adjustable pedestals for paving or decking, designed to provide a stable, level surface on uneven substrates. With a self-levelling head that compensates for slopes of up to 5% (2.86°), these pedestals simplify installation and improve your project. Whether you’re constructing a paving system with natural stone, concrete, or porcelain tiles, or a decking system using timber or composite materials, Wallbarn Pedestals provide a long-lasting solution.

Paving Projects:

• The self-levelling headpiece features four positioning lugs (fins) arranged in a crucifix formation near the edges
• The special Balance Headpiece allows for slope correction of up to 5% (2.86°) in all directions
• A built-in mechanism at the base of the headpiece enables smooth movement and precise positioning of paving slabs
• The lugs (fins) ensure consistent spacing between slabs and tiles, promoting effective drainage
• The headpiece and lugs create a uniform paving line, ensuring slabs are laid perfectly straight
• A rubber anti-shock pad is included with the headpiece which has a series of ridges, enhancing grip while reducing vibration and noise transmission through the pedestal to the deck below


Decking Projects:

• The lugs (fins) on the headpiece are positioned towards the edges, creating a 55mm gap to house a timber joist
• No need for furrings. Simply adjust the pedestal height to achieve the required level for your decking system
• The self-levelling head automatically adjusts for slopes, making installation faster and more efficient than traditional methods
• The system provides a stable, elevated substructure, preventing direct contact between timber and the deck surface, reducing moisture-related issues
• Pedestals offer precise height adjustment, ensuring a perfectly level deck
• Using our adjustable pedestals allow for improved airflow and drainage, helping to extend the lifespan of the decking structure


Downloads & Data Sheets:

Product Data Sheet

Product CAD Drawing

Operations & Maintenance Guide
