B230 Universal GRP Raised Edge Trim 105mm Face - 3m
Couldn't load pickup availability
Key Features:

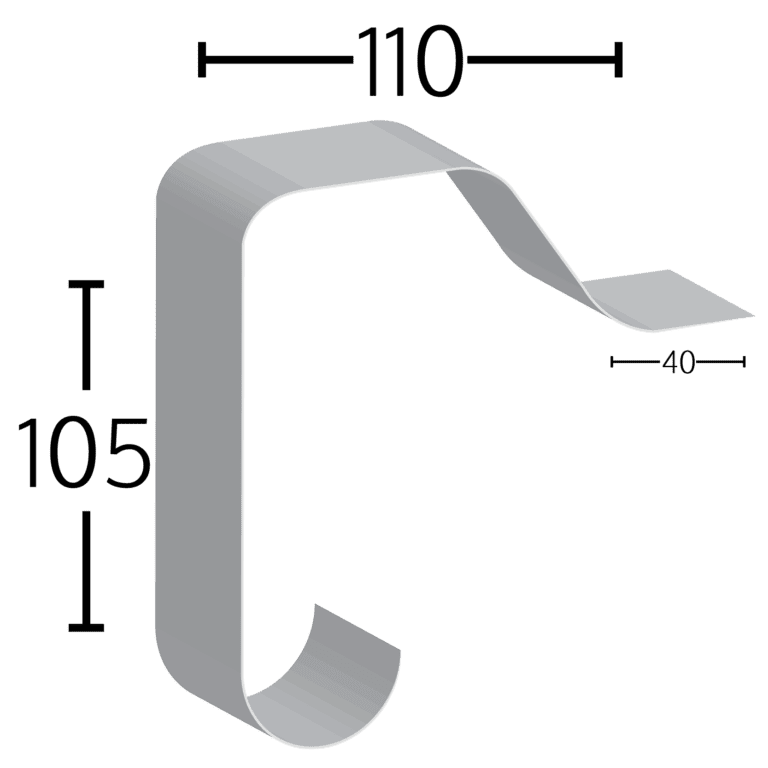

- Length: 3mtr
- Width : 110mm
- Total Face Height : 105mm
- Use: Universal Raised edge trims are used on the non-drainage side if the roof, overlapping on to the fascia.
Description:
B230 Universal GRP Raised Edge Trim is a Flat roof edge detail to prevent water run off. Drip matches A170 Corner trim.

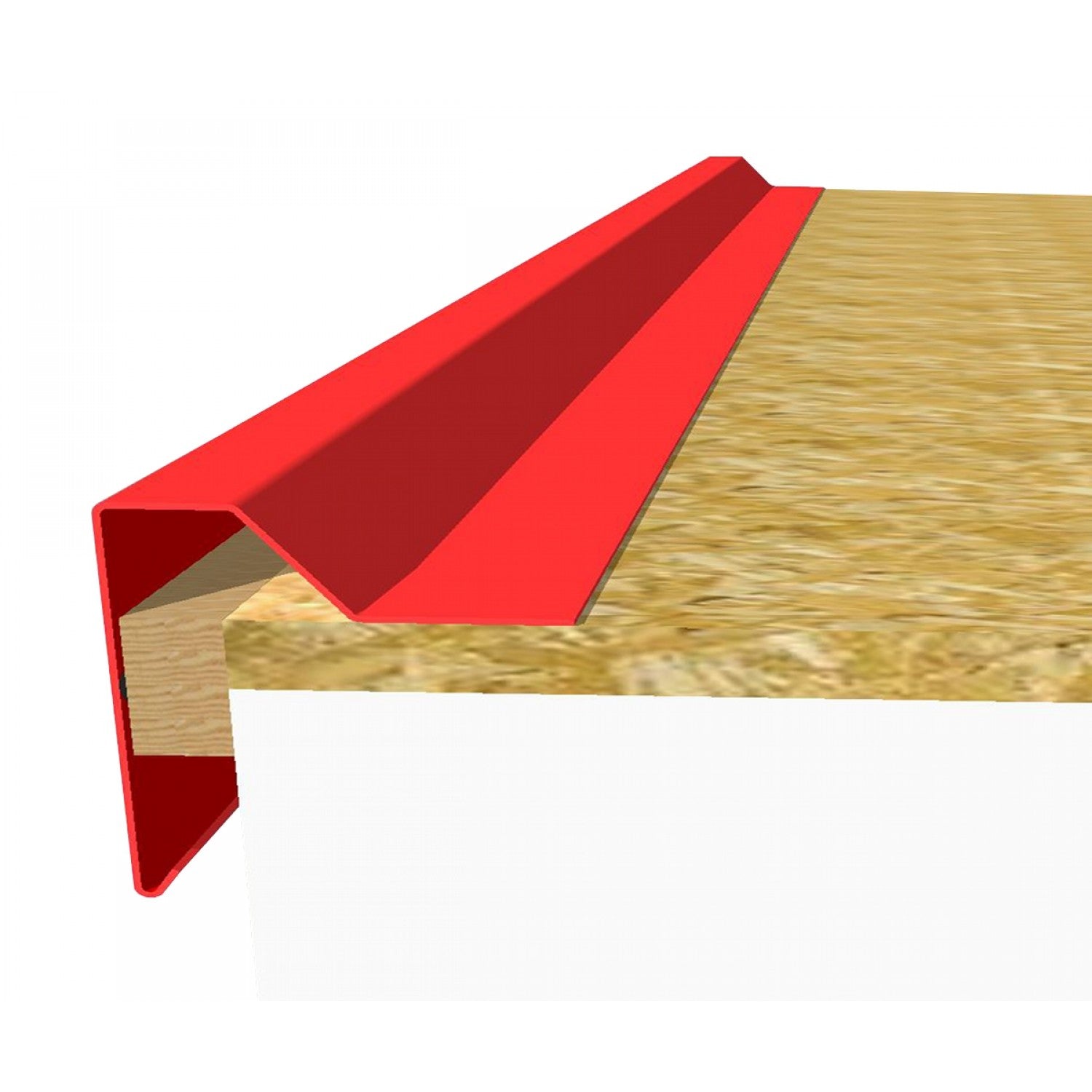

The raised edge trims is placed on the non-draining open edges of a roof, overlapping onto the fascia boards. A single batten should be fixed on the outside of the fascia board level with the top edge of the deck. PU trim adhesive should be applied to the battens in 30mm beads at 300mm centres before bedding the trim.
This is a Glass Reinforced Polyester flat roof system designed and engineered for flat roof applications. Fully integrated all in one system where the components work together on virtually all types of flat roofs and vertical surfaces in any domestic or commercial application to provide the perfect all weather protection.
- B230 raised edge GRP trim provides flat roof edge detail to prevent water run off. Drip matches A170
- Unique high-bond finish. Designed for use with roofing resin and topcoat- no delamination
- Flexible for uneven surfaces
- Pre-pigmented
- UV stabilised
- Easy jointing
