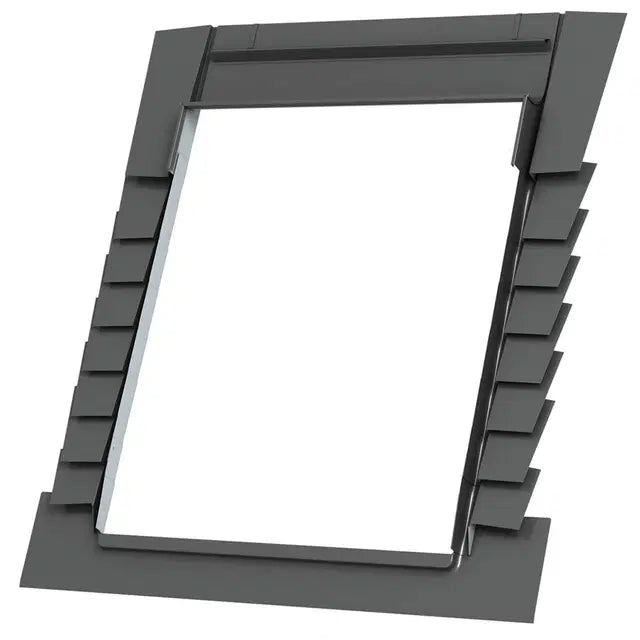

Keylite PTRF Plain Tile Flashing Kit
Couldn't load pickup availability
Key Features:

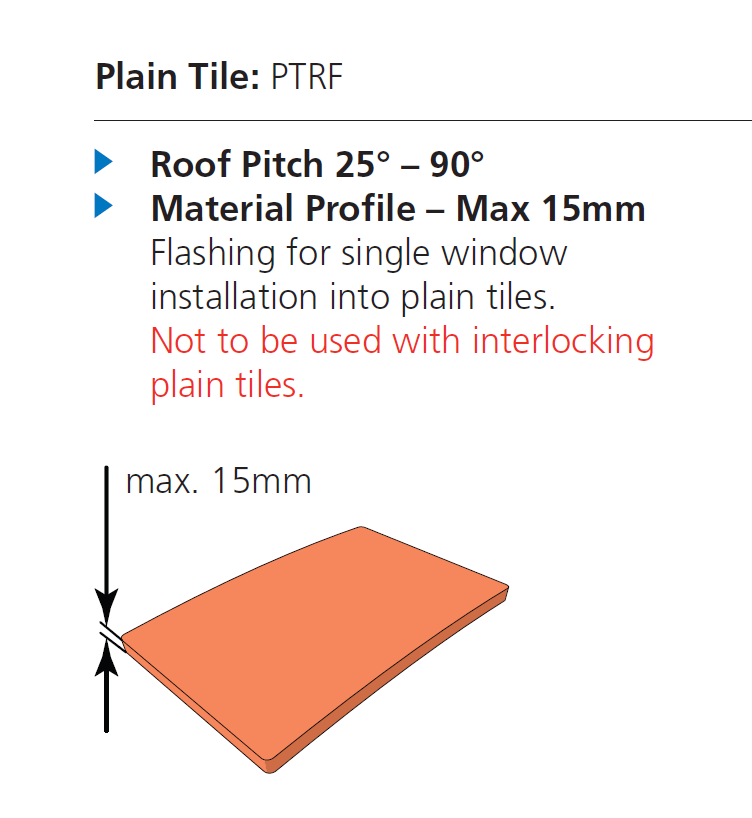

- Compatibility: Designed for Plain tiles
- Max Tile profile: 15mm
- Size: Please select window size from drop down menu
- Suitable for roof pitch: 25° - 90°
Description:

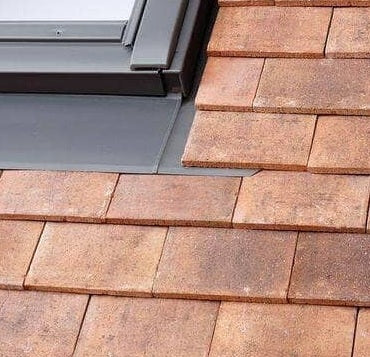

Keylite PTRF Plain Tile Flashing Kits provide a secure and weatherproof installation for roof windows in plain tiles up to 15mm thick and are designed for roof pitches between 25° and 90°.
Keylite Flashing Kits are the most efficient way to ensure a watertight installation for your windows and have been designed to integrate efficiently with specific roofing materials.
Downloads & Data Sheets:
Keylite PTRF Plain Tile Flashing
Keylite Flashing Compatibility
Installation Guide:
PTRF 01 (550mm x 780mm)
- PTRF 01 (550mm x 780mm)
- PTRF 01C (550mm x 1180mm)
- PTRF 02 (550mm x 980mm)
- PTRF 03 (660mm x 1180mm)
- PTRF 04 (780mm x 980mm)
- PTRF 05 (780mm x 1180mm)
- PTRF 06 (780mm x 1400mm)
- PTRF 07 (940mm x 1600mm)
- PTRF 07F (940mm x 1400mm)
- PTRF 08 (1140mm x 1180mm)
- PTRF 09 (1340mm x 980mm)
- PTRF 10 (1340mm x 1400mm)
