Mayan Natural Slate All-in-One Real Ridge Graphite Ridge Tile 500mm
Couldn't load pickup availability
Delivery:
IN STOCK. Delivery: 5 - 7 days
Key Features:
- Type: Brazilian Natural Slate
- Size: 12mm thick / 500mm long / 200mm wide

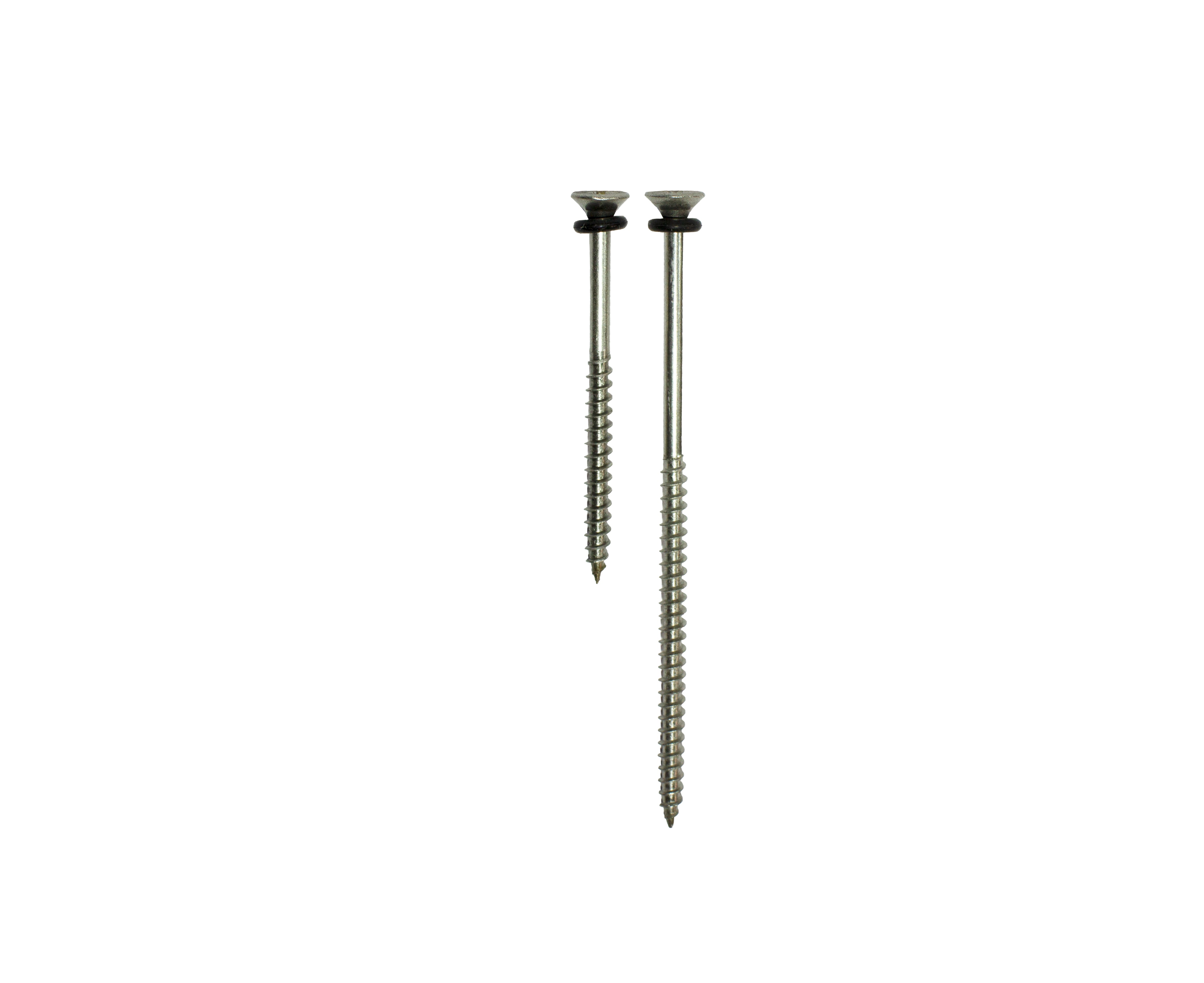

- Components: Slate Ridge/ GRP liner / PVC vent strip / GRP connector / GRP clips / Aluminium rivets / 1 x RidgeFix60mm & 1 x RidgeFix100mm A2 stainless steel fixing screws with nitrile washer
- Fully compliant with BS 5534, BS 5250 and BS 8612
Description:

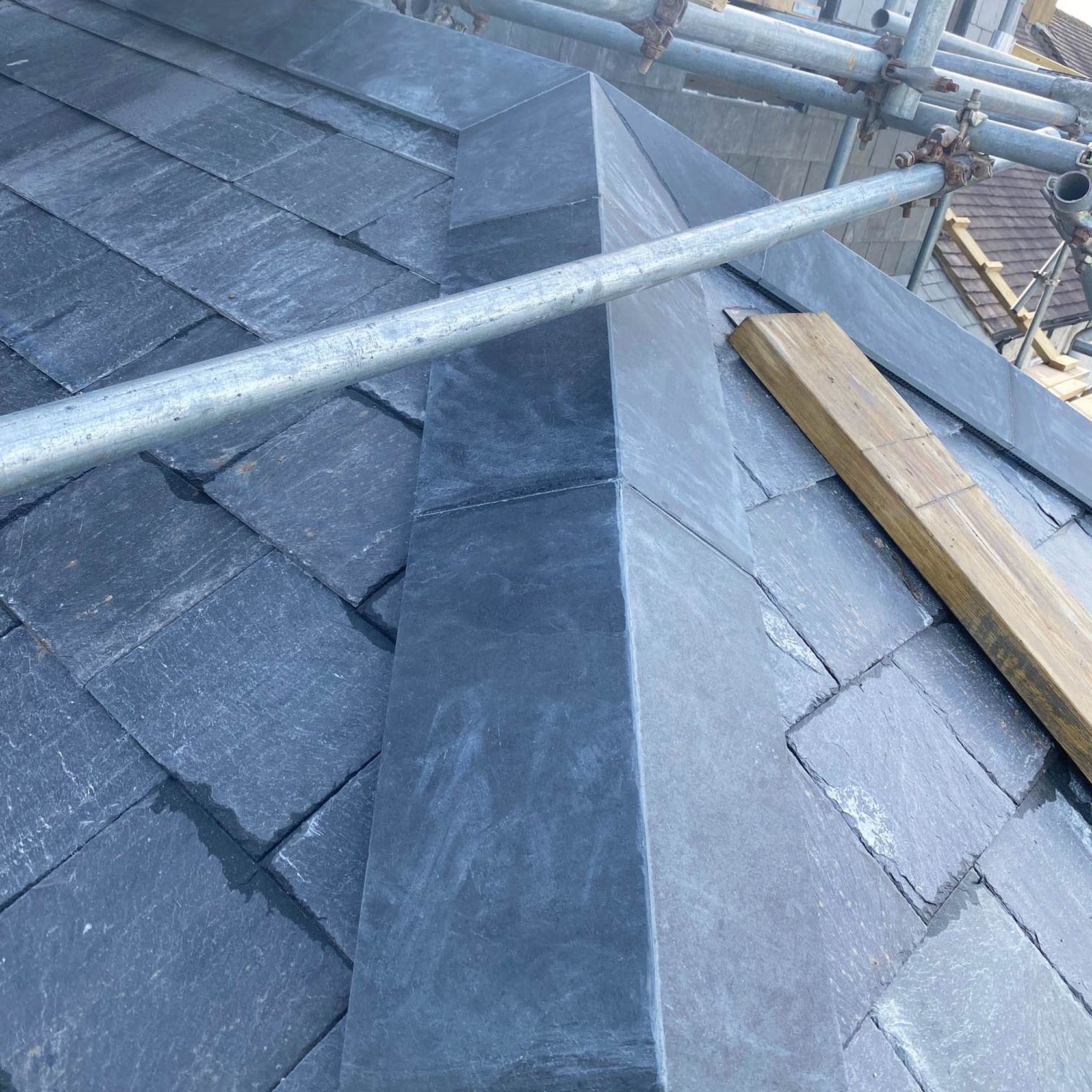

The Mayan all-in-one Real Ridge is a dry ridge system for slate roofs. Made using natural graphite slate that is mechanically and chemically bonded to a GRP fixing and waterproofing system. Our patented system allows for ventilation ridge using our built-in vent strip. Our dry ridge tiles are extremely easy to install using the invisible, ultra strong clip and connector system.
Our complete slate dry ridge system does not require roll-out kit. All fixings are invisible on the roof and included for super easy installation.
Suitable Ridge Angles for roof pitches:

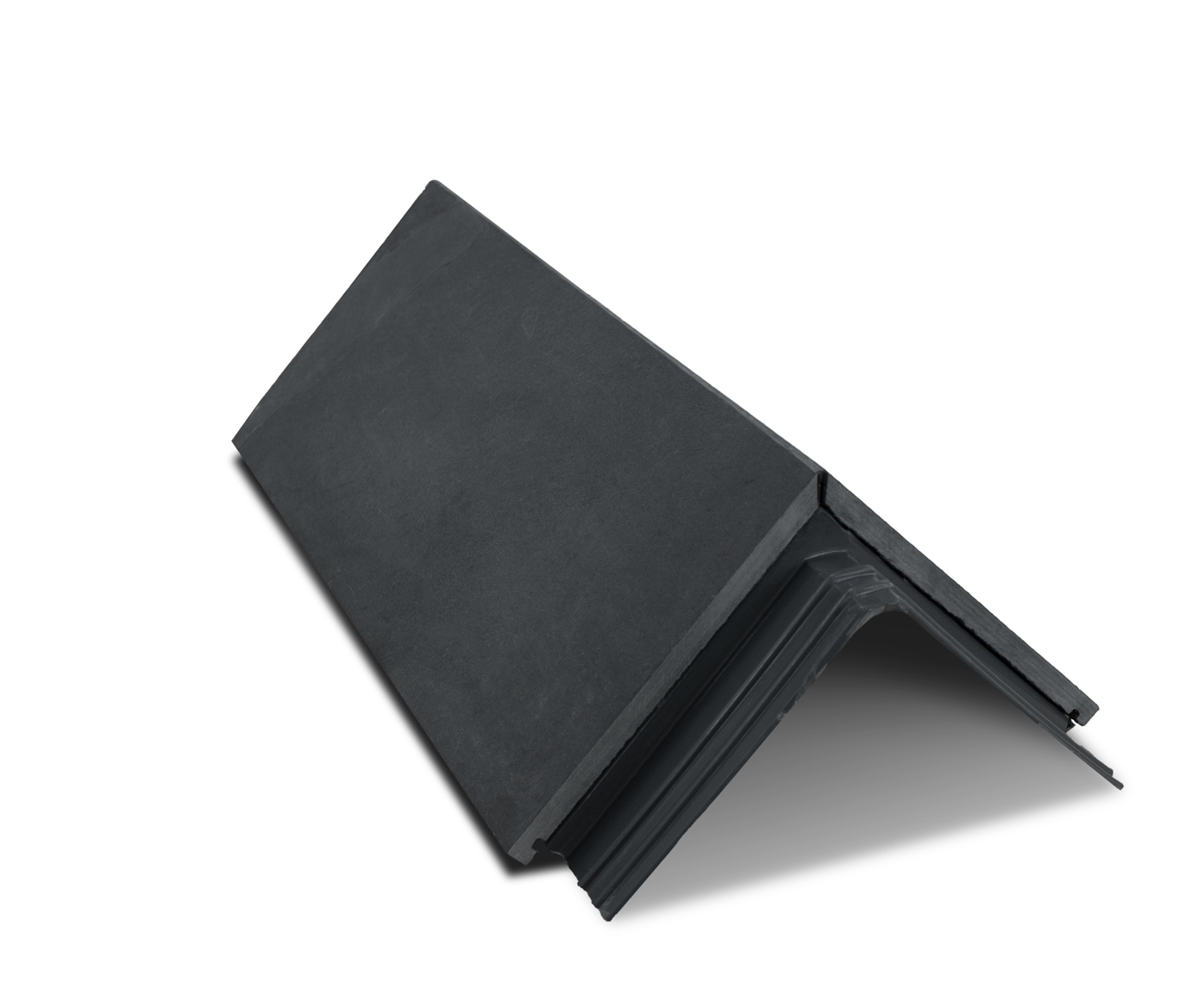

- 90° Suitable for roof pitches from 37.5º - 45º

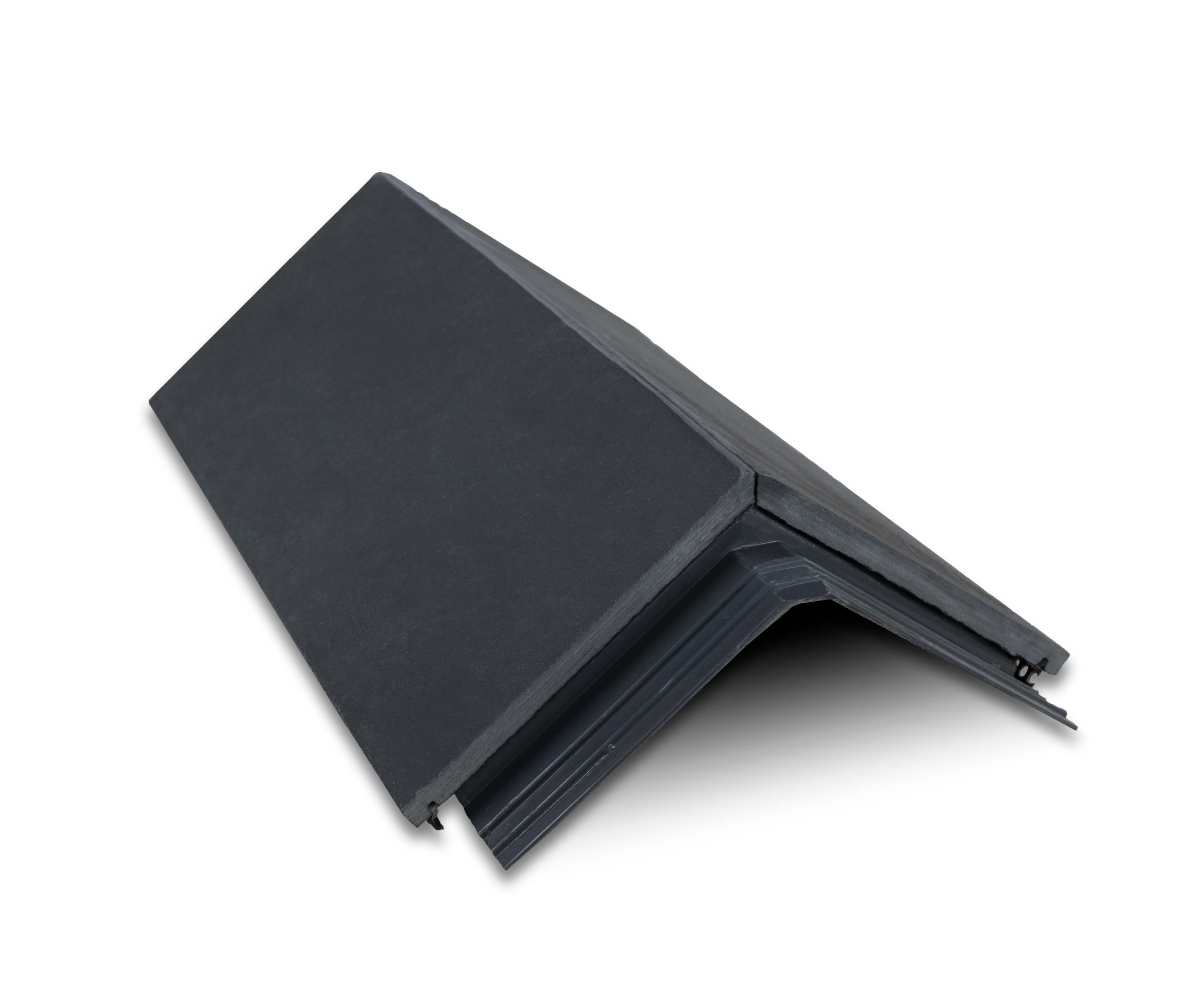

- 105° Suitable for roof pitches from 30º to 37.5º and on hips with roof pitches from 37.5º to 45º

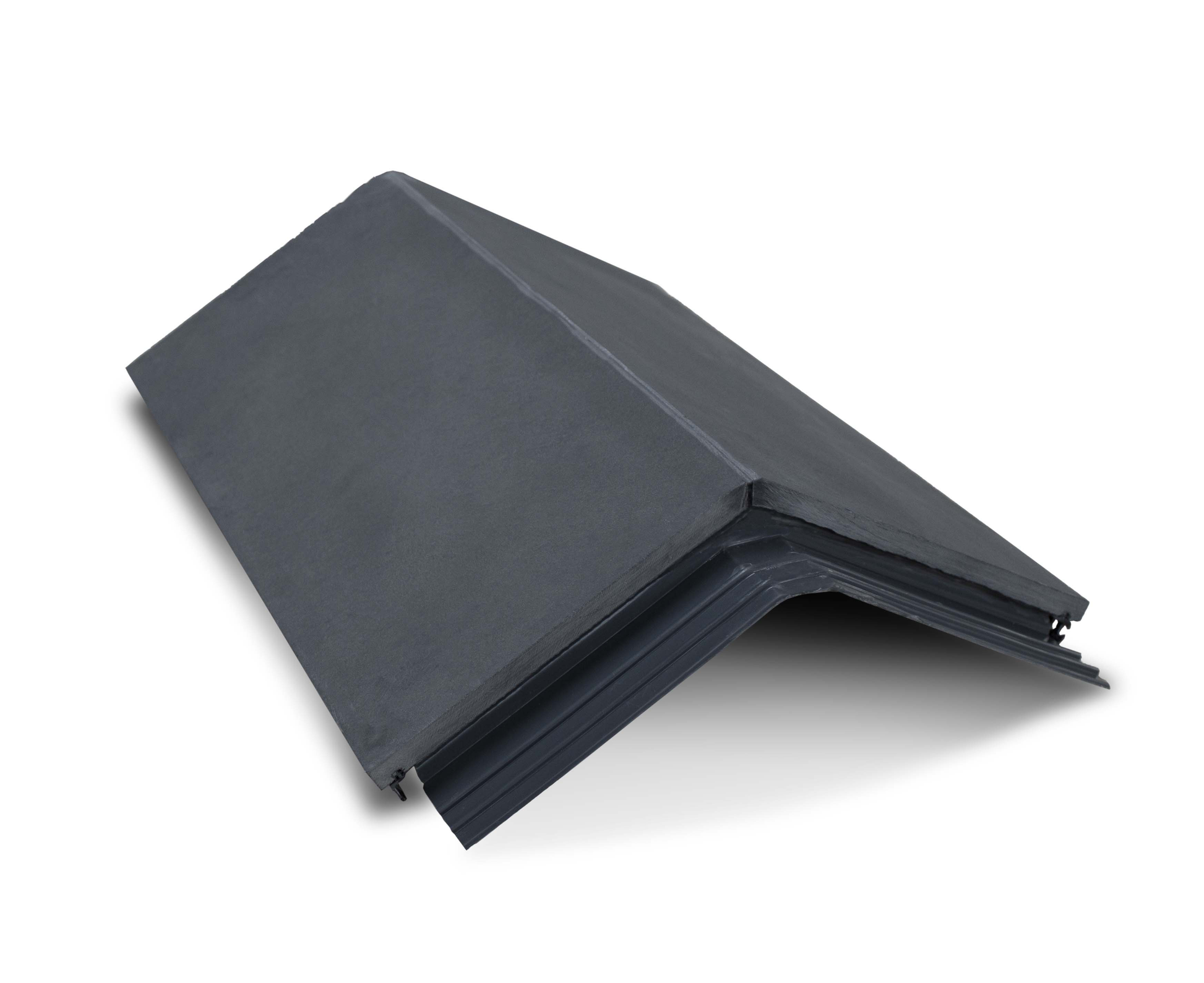

- 120° Suitable for roof pitches from 22.5º to 30º and on hips with roof pitches from 30º to 37.5º

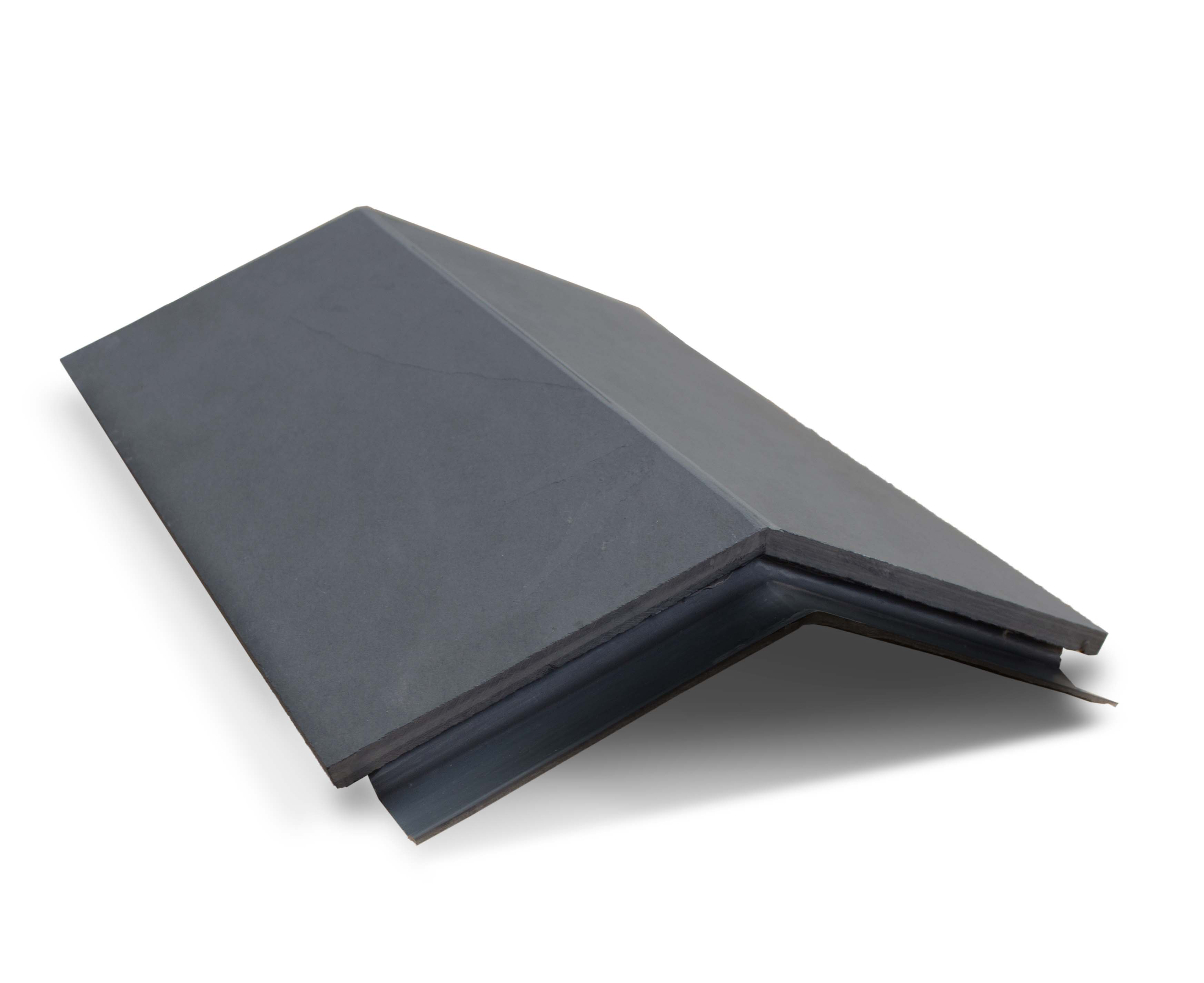

- 135° Suitable for special roofs with a pitch up to 22.5º and on hips with roof pitches from 22.5º to 30º
Downloads & Data Sheets:
RealRidge Slate All-in-One Fitting Instructions
Related Products

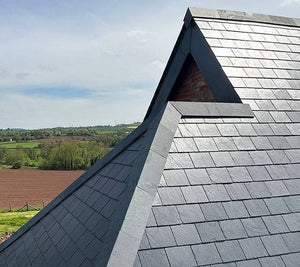

Mayan Armoured Natural Slate Graphite - Low Pitch 10°
