Cladco 34/1000 Box Profile 0.7mm PVC Plastisol Coated Roof Sheet
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- External Finish: PVC Plastisol (please select colour from drop down menu)
- Internal Finish: Light Grey Polyester
- Material: Galvanised Steel
- External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
- Width: 1000mm (when lapped)
- Length: Cut to size 1000mm - 9000mm
- Gauge thickness: 0.7mm
- Weight: 6.22kg/m2
- Application: Wall or Roof
Description:
Cladco 34/1000 trapezoidal box profile sheets are the most popular and strongest profile roofing sheets on the UK market. Each single skin profile sheet features 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1,000mm when installed, these box roofing sheets give you a simple yet strong way to cover your roof.
Box profile roofing sheets are formed from 1250mm wide galvanised steel strips which will give a secure weatherproof lap from profile sheet to profile sheet. Sheets are coated with PVC Plastisol and available in 0.5 or 0.7 mm thickness. Plastisol sheets provide a hard-wearing, low maintenance finish.

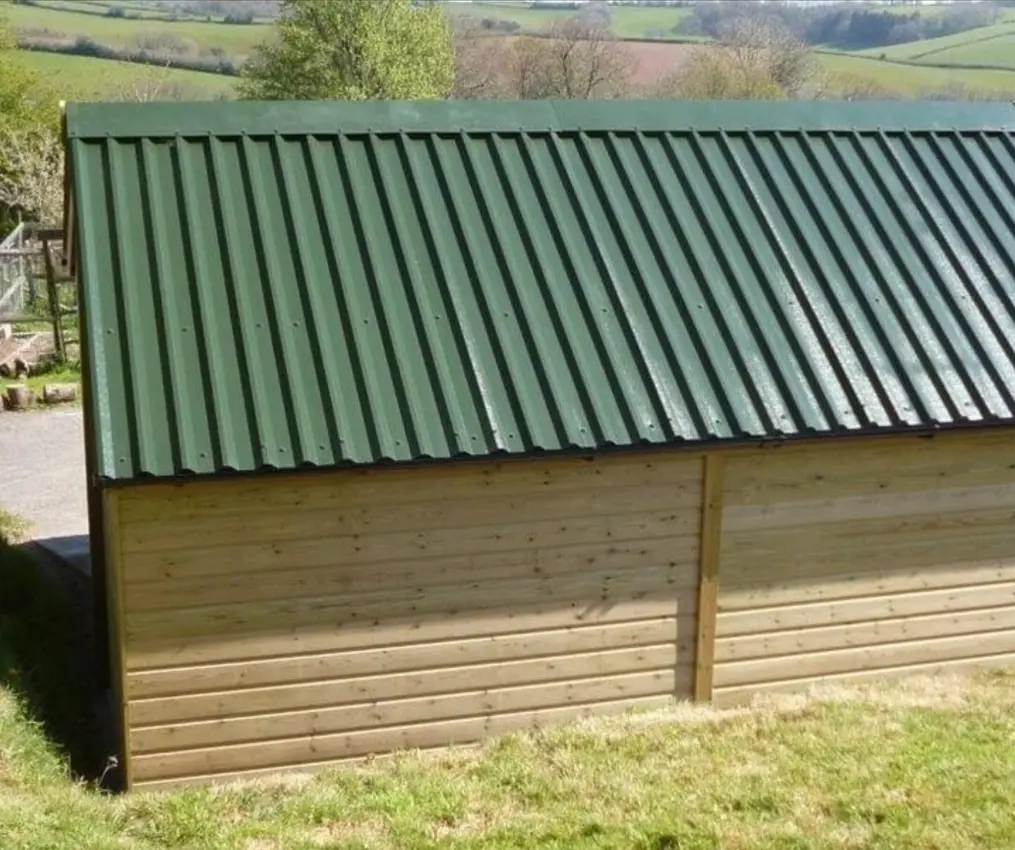

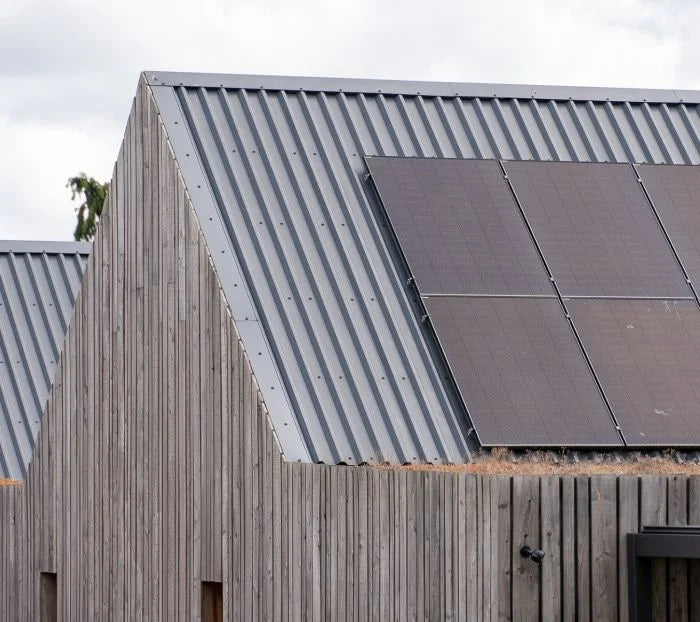

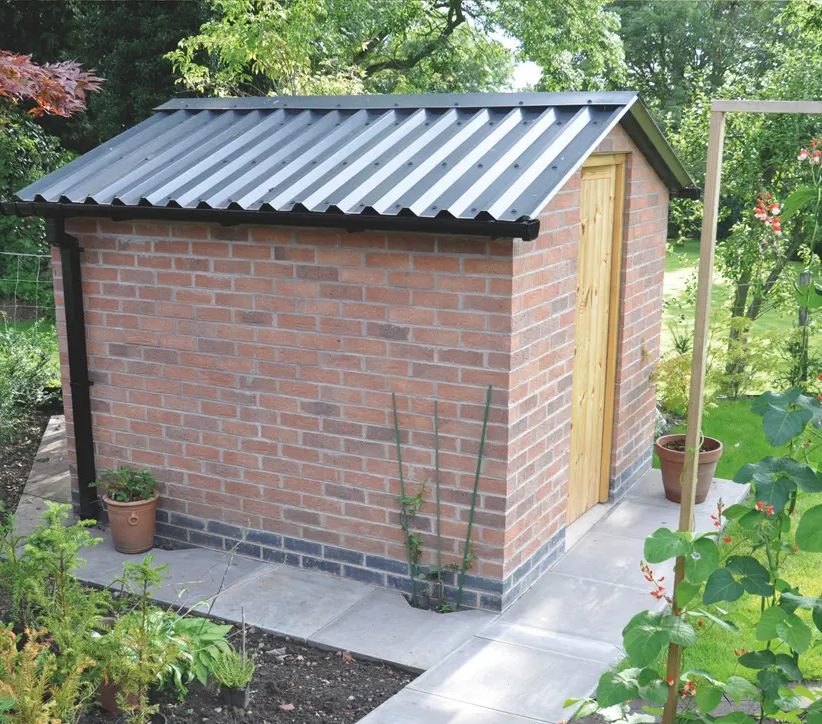

Most commonly seen on industrial, agricultural and commercial buildings, box profile sheets can be used for domestic buildings where required. Available as a single skin profile sheet, it can be used to build up an insulated system, to over clad an existing roof or on its own to provide a solid weatherproof covering on any building. Suitable for roof application of 4 degrees or higher.
Fast and easy to fit, these lightweight box profile steel roofing sheets are an economical way to cover your building. Available in a traditional range of colours and independently tested to current CE EN 14782 requirements, our box profile sheets will provide you with a long-lasting and low maintenance solution for years to come.
Free Sample Pack:
Order a Free of Charge Colour Swatch Sample Pack
Downloads & Data Sheets:
Product Installation Instructions
PVC Plastisol Performance Overview
