120mm - 220mm (DDP04)
Related Products
Delivery:
IN STOCK. Delivery: 1 - 2 days
Key Features:
- Adjustable Heights: 30mm - 420mm
- Paving Spacer: 3mm (5mm on request)
- Base diameter: 177mm
- Cap diameter: 100mm
- Height adjustment: Smooth Height Adjustment
- Load resistance: Up to 1100kg
- Material: High-Strength Polypropylene (PP)
- Ideal Applications: Roof terraces, Balconies, Podium decks, Commercial plazas, Outdoor hospitality spaces, Residential patios and gardens
- Warranty: 20 Years
Description:

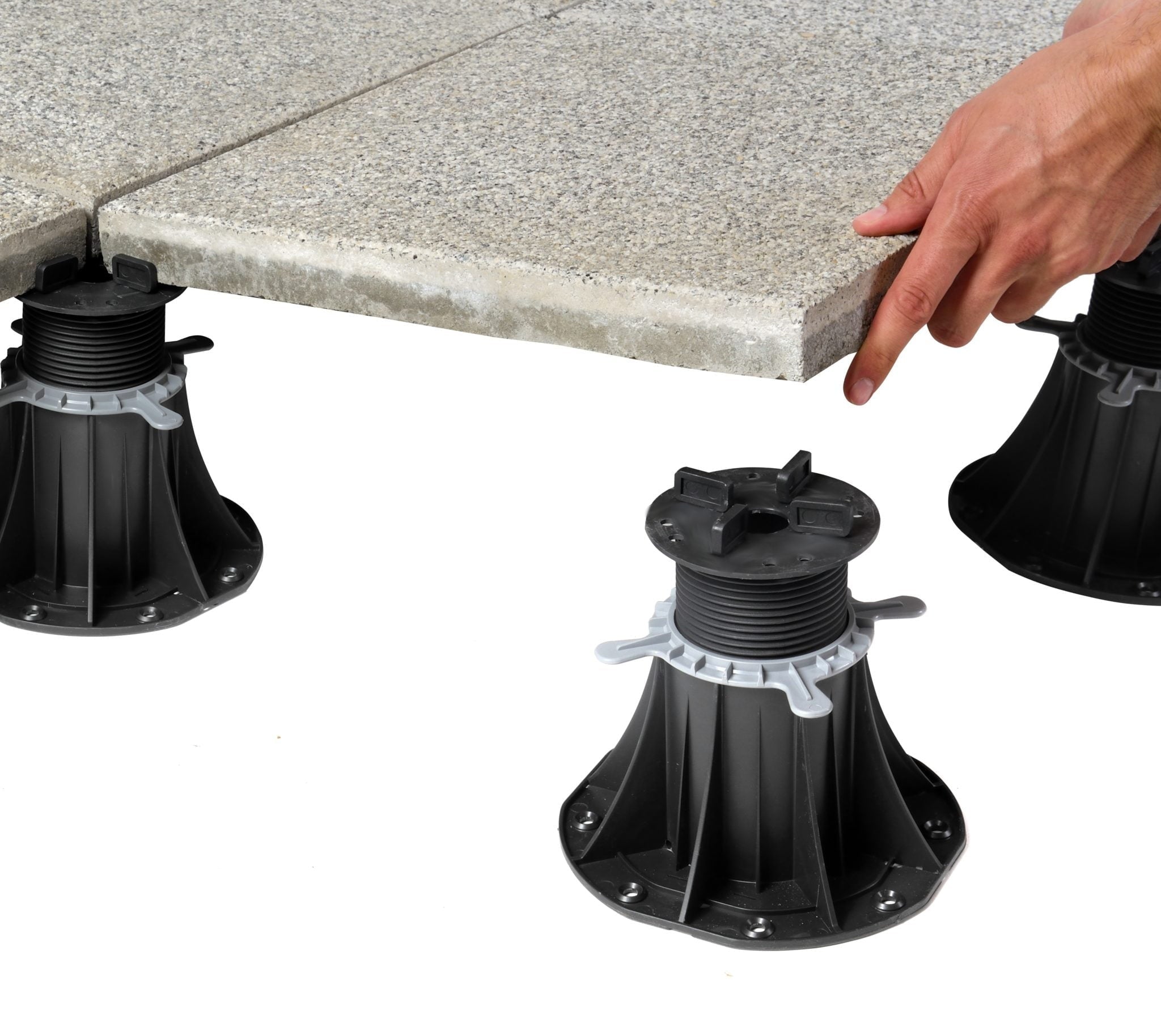

DD Pedestals are the solution if you want a beautiful paved terrace that is free draining, compatible with waterproofing membranes, easy to install and low cost. Designed for use with pavers and decking on flat roofs, balconies and terraces. Supplied with 3mm spacers as standard. 5mm spacers can be provided if required (please make a note when you go through to checkout)
Optional Correction Header Pieces can be added for uneven surfaces.
Optional Joist Adaptor Heads can be added for use with Timber Joists.
Optional Fascia Bracket Sets can be added for a clean face / fascia.
DD Adjustable Pedestals provide a reliable, durable, and versatile support solution for raised decking and paving systems. Designed for both residential and commercial applications, these high-performance pedestals create a stable, level surface while allowing for effective drainage and easy access to underlying services.
Manufactured from robust, weather-resistant materials, DD Adjustable Pedestals offer precise height adjustment, making them ideal for installations on uneven or sloping substrates. Their innovative design enables quick and straightforward installation, reducing labour time and ensuring a professional finish.

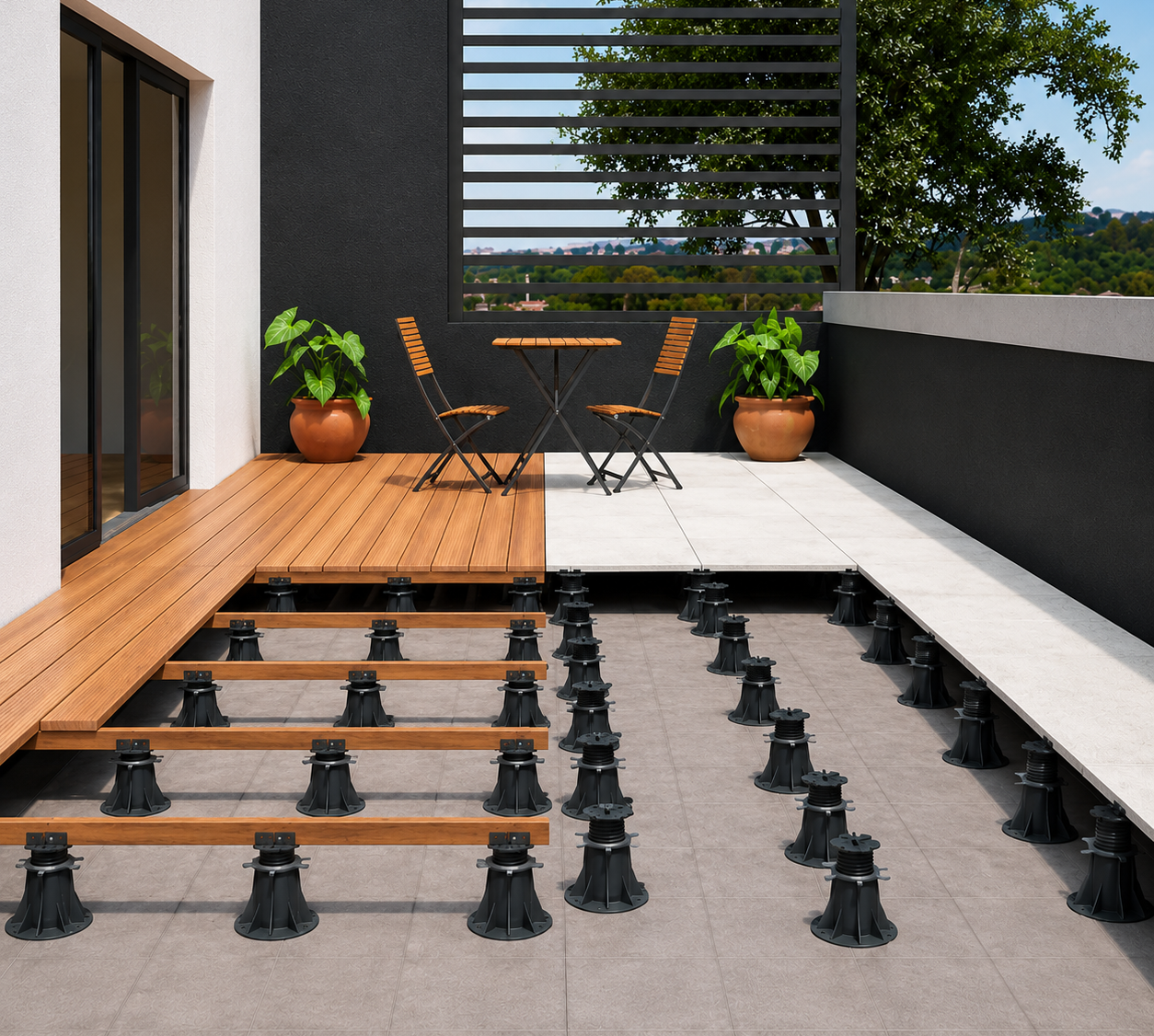

Suitable for supporting porcelain paving, concrete slabs, timber decking, and composite decking systems, DD Adjustable Pedestals help create perfectly level outdoor spaces such as terraces, balconies, rooftop gardens, patios, and podium decks.
DD Pedestals may be used for the smallest balcony projects, private garden terraces through to large terraces in the city, large industrial platforms or complicated projects for public spaces such as those which require strength and precision.
DD Pedestals are supplied as standard with a fixed head piece. If slope correction is required its simply a case of ordering some slope correction head pieces that clip on top securely and easily.

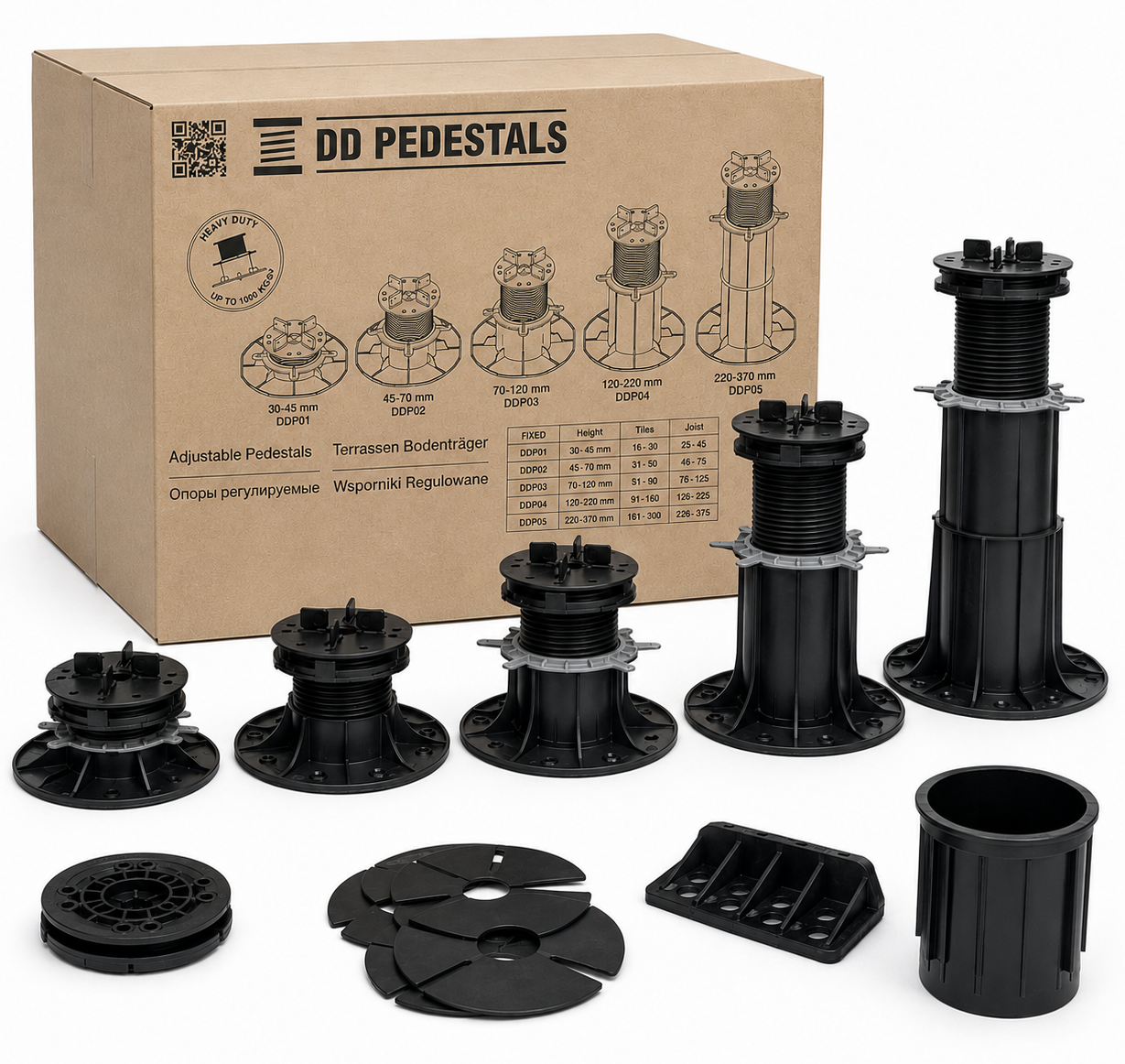

Pedestal Heights:

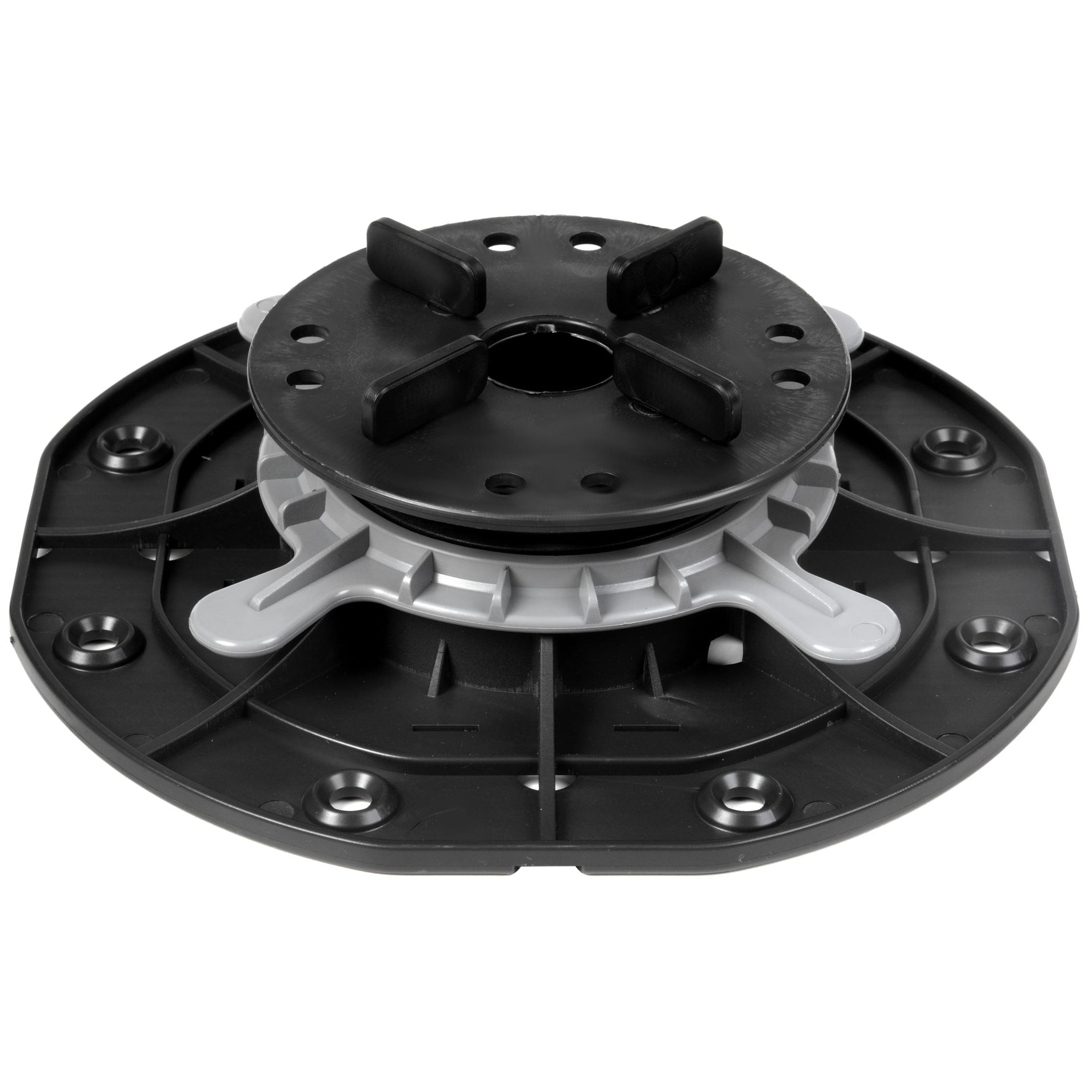

- DDP01: 30mm - 45mm

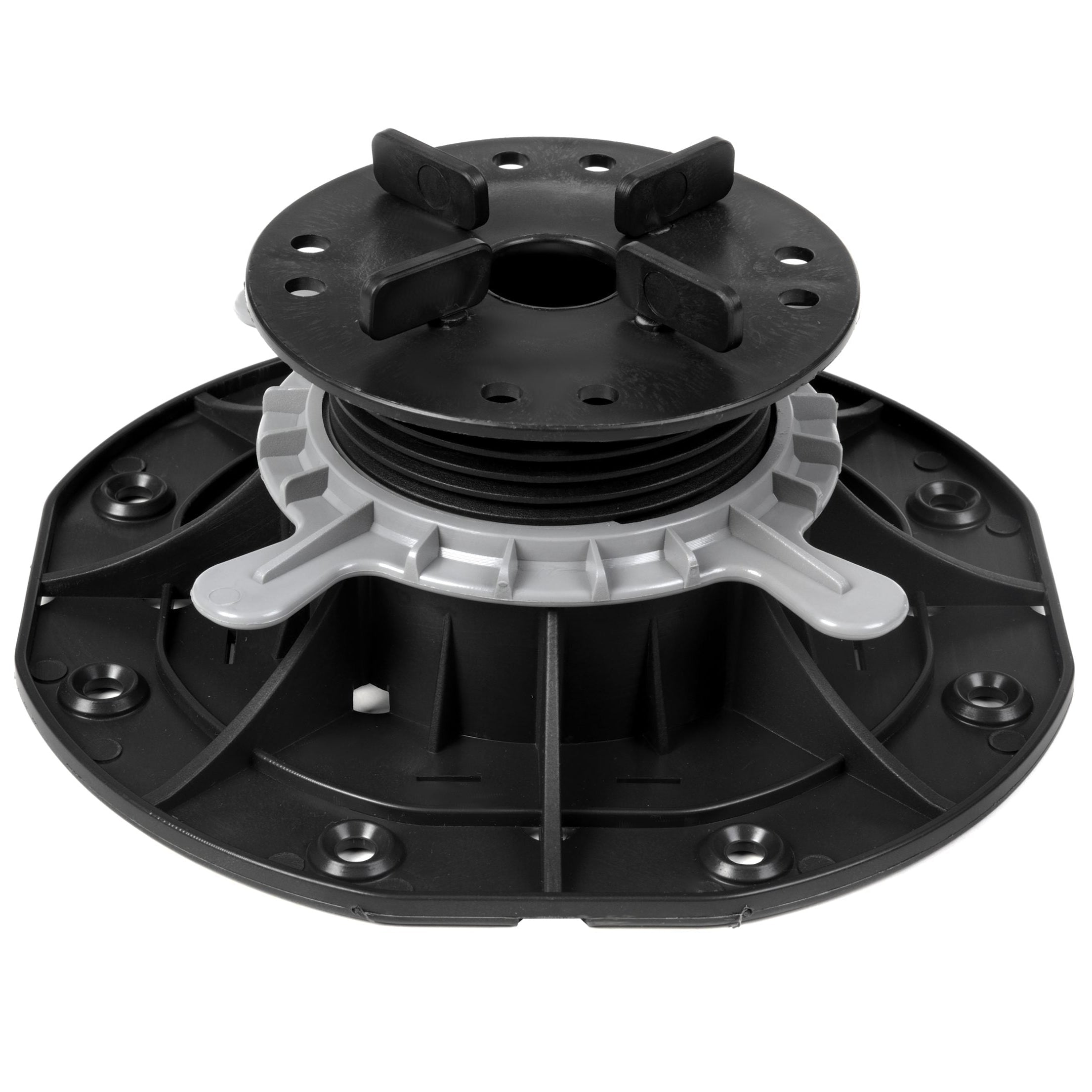

- DDP02: 45mm - 70mm

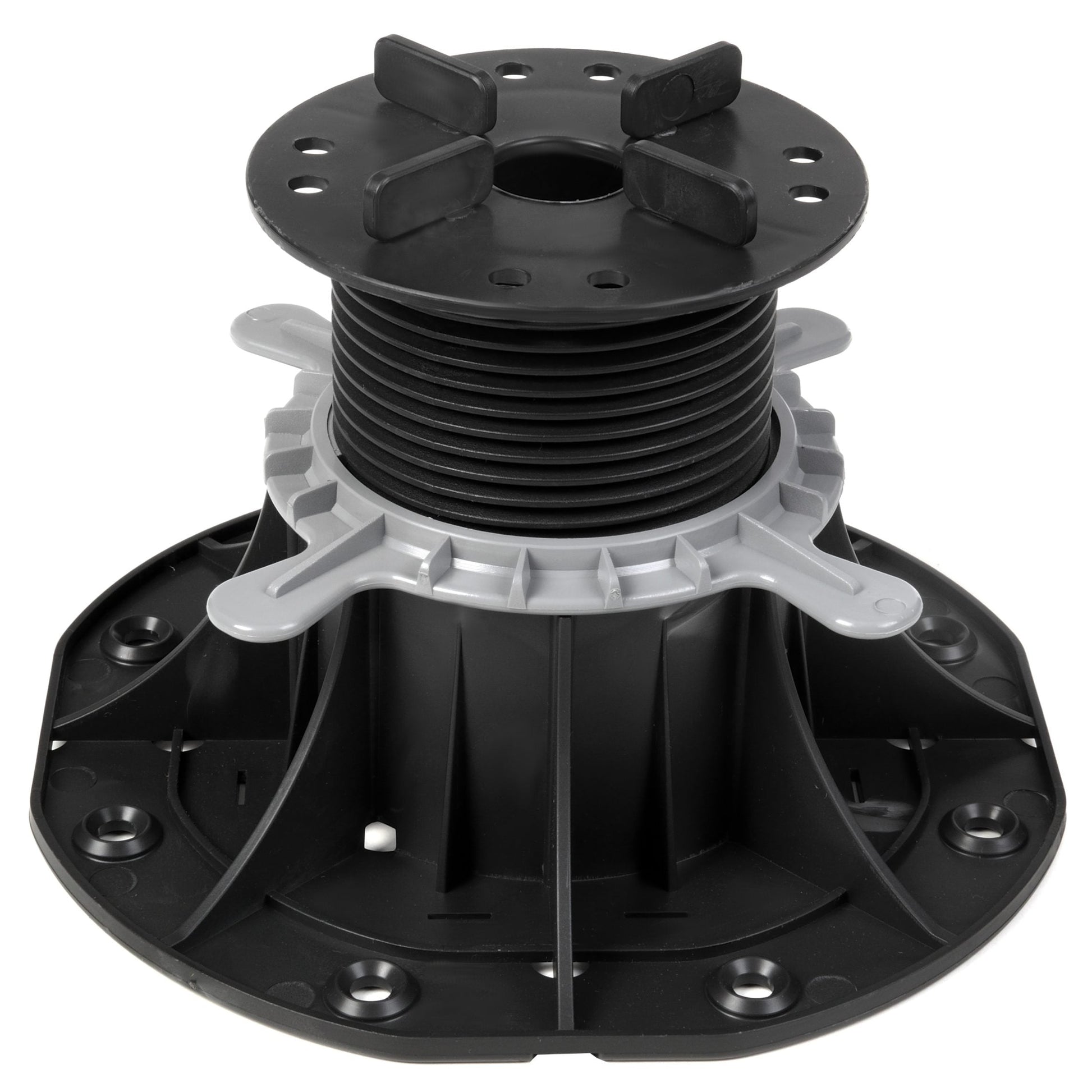

- DDP03: 70mm - 120mm

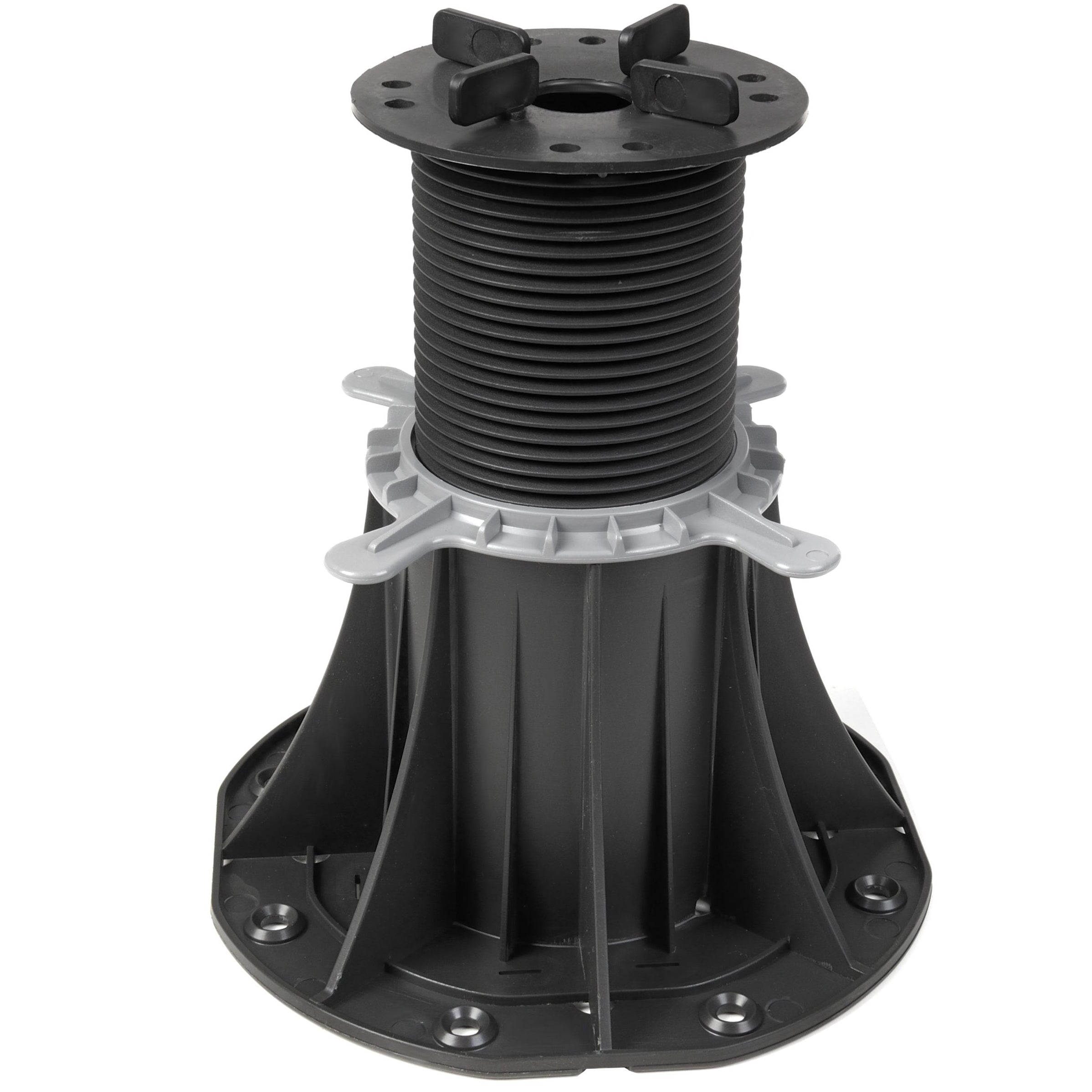

- DDP04: 120mm - 220mm
- DDP05: 220mm - 320mm
Downloads & Data Sheets:
DD Adjustable Pedestal Technical Data
DD Adjustable Pedestal Pedestal Data Sheet
DD Adjustable Pedestal Pedestal Instructions
