By Quinn Therm

Quinn Therm QRFR-PLY Insulated Decking Board - 136mm (130mm + 6mm PLY)

Regular price
£161.28 (inc VAT)
£134.40
(ex VAT)
Regular price Sale price
£161.28
Delivery:

IN STOCK. Delivery 1-2 days

Free Delivery on orders over £650.00

Key Features:
  • Board size: 2400mm x 1200mm x 136mm
  • PIR Insulation Thickness: 130mm
  • Plywood Thickness: 6mm
  • Coverage: 2.88m2 per board

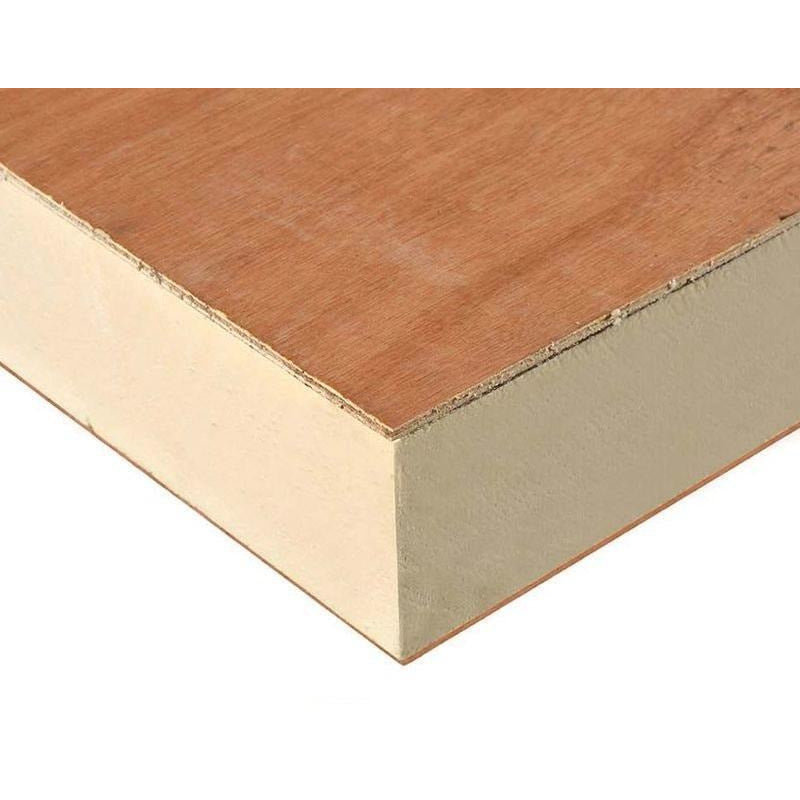

  • Facing: Aluminium composite foil on one side and 6 mm plywood on the other
Description:

Quinn Therm QRFR-PLY PIR Insulation is a high performance, fibre free board, with a rigid thermoset insulation core and faced with a low emissivity composite foil facing on the inner side and 6mm water and boil proof (WBP) plywood on the outer.

The low thermal conductivity, minimises the thickness required to achieve the design U-value while the composite board offers rapid coverage and straightforward installation.

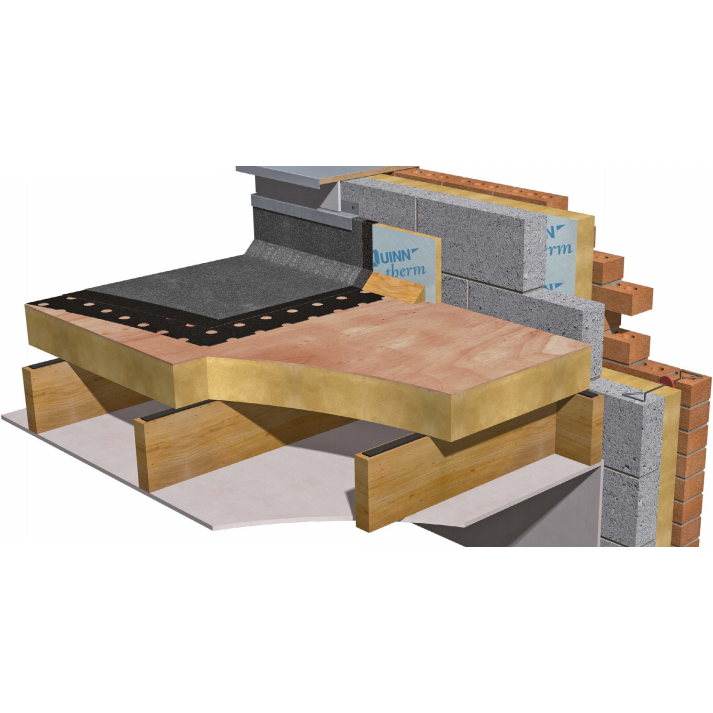

Quinn Therm QRFR-PLY PIR Insulation boards allow for the installation of a roof structure in one operation, as the product provides the deck, insulation and vapour control layer all-in-one.

Quinn Therm QRFR-PLY PIR Insulation is compatible with a wide variety of weathering systems as it helps reduce the risk of condensation and eliminates the need for ventilation beneath the deck.

Applications:

Insulated Decking Board can be used with the following applications:

  • Single ply mechanically fixed
  • Single ply adhered
  • EDPM Rubber Cover
  • GRP Cover
  • Torch on felt
  • Single Ply Membranes
  • Mastic Asphalt
  • Roll and Pour Felt
Downloads & Data Sheets:
