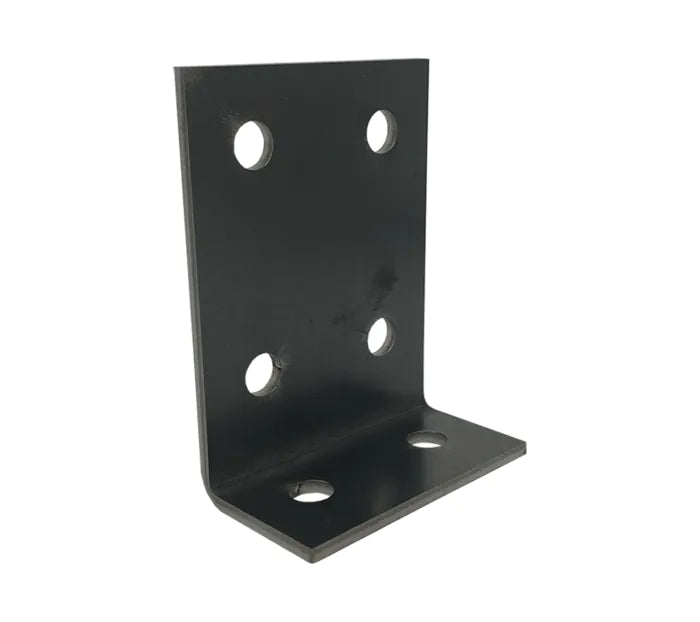

Cladco C & Z Purlin Cleat Brackets
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- Lengths: 135mm, 173mm, 195mm
- Width: 129mm
- Depth: 69mm
- Punched hole size: 18.25mm
- Material: S450 Pre-Galvanised Steel
Description:
Cladco C & Z Purlin Cleat Brackets are compatible with our Z purlins and C purlins, Cladco metal cleat brackets are ideal for fixing the purlins themselves to the main structure of your build. This will allow for a quick and easy installation for both cladding and roofing structures.
Clado metal pre-punched cleats are designed specifically with our existing Z and C purlins in mind. These corresponding purlin cleats ease the installation process of purlins onto the structural frame, ideal for either cladding and roofing projects.
This metal bracket is secured to a supporting fixture, such as an RSJ, allowing for your purlins to be easily attached to the structural joists. Cleats can be mounted either on the top of the joist or positioned perpendicularly within it, enabling the purlin to sit flush with the edge. This configuration can be chosen based on your specific purlin support requirements.
The cleats are manufactured from high-strength galvanised steel to ensure that potential rusting and corrosion is minimal and that the purlin system remains sturdy and properly secured.
As well as being tailor-made for our range of metal purlins, the pre-punched cleats fit seamlessly with our bolt set. This will allow you to complete your purlin roofing or cladding installation with ease. These fixings are also sold as a set, or separately if needed.
It is advised to store the cleats in a dry and covered area to minimise contact with moisture and reduce the risk of rust. Keep off the ground using pallets and cover where possible to avoid any unnecessary wear and tear or water damage prior to installation.
Cladco recommend using two cleats for every purlin used, for a highly secure finish.
- Made from structural-grade steel
- Independently-tested to current CE EN 14782 requirements
- Face size: 129mm x 145mm

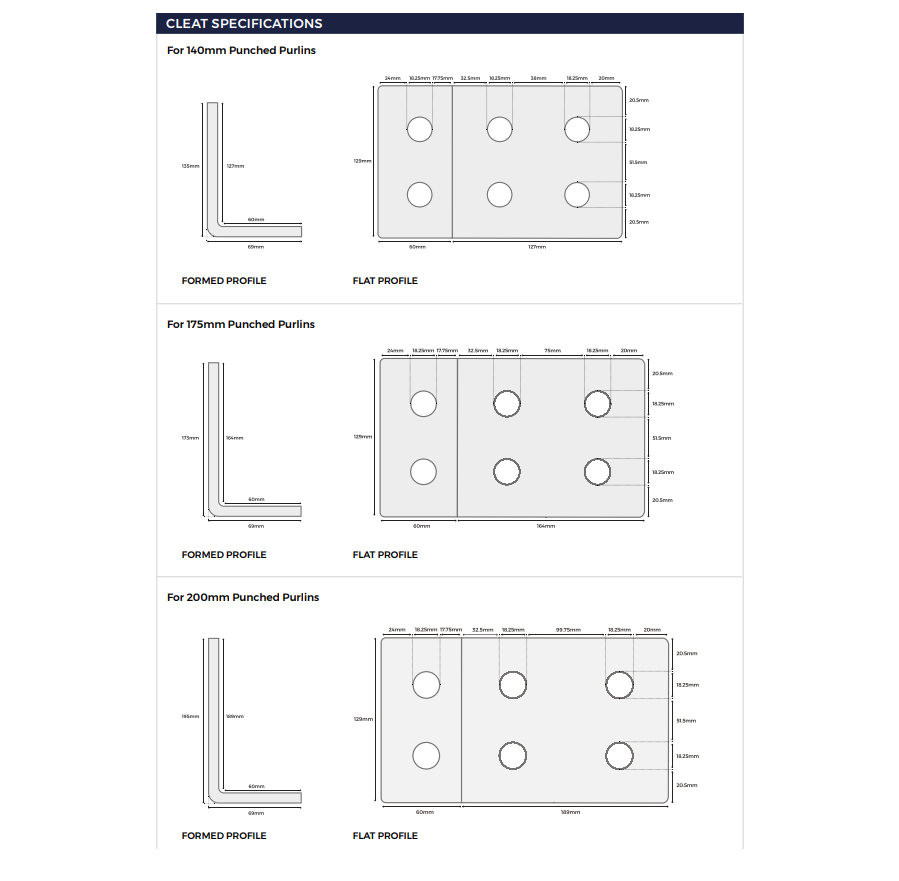

Downloads & Data Sheets:
135mm - (Suitable For 140mm Purlins)
