Cladco Metal C Purlins - 200mm
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days
Key Features:
- Depth: 200mm
- Length: 1.5m - 9m (any precise length can be cut to size between 1.5m - 9m)
- Thickness: 1.8mm
- Weight: 4.3kg per meter
- Material: Z39 Galvanised Steel

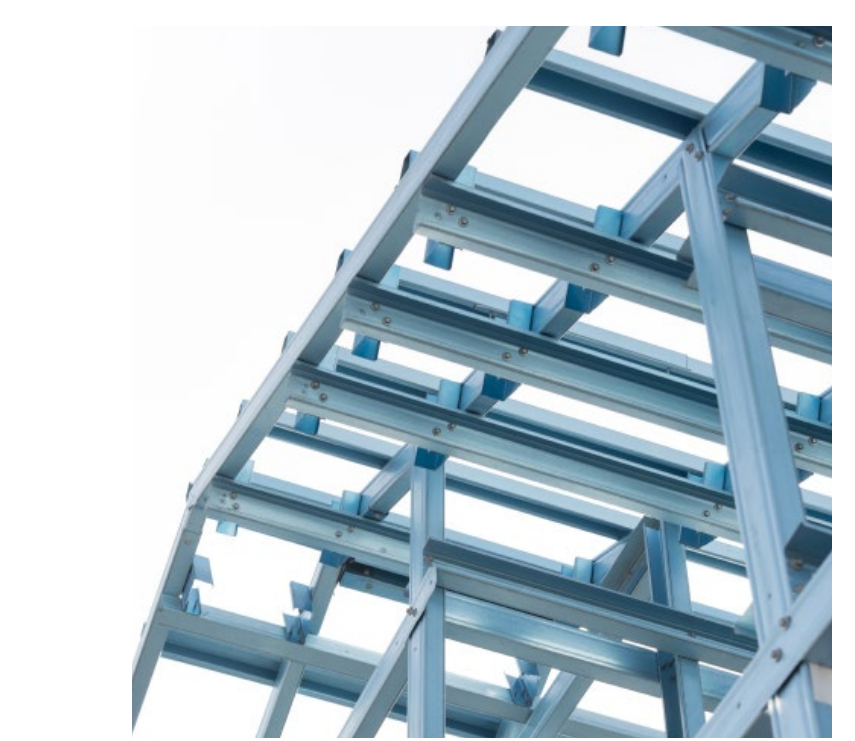

- Use: C Section Purlins are used for the construction of framework for walls and flooring where structural beams are required
Description:
Cladco C Section Purlins deliver reliable structural support for walls and floors where beams are required for cladding sheets. Manufactured to your specified lengths from 1.5m to 9m, these C Purlins are produced from high-quality Z39 galvanised steel and are available in a range of depths to suit different applications. Choose from punched or unpunched options depending on your project needs.
Designed for strength and durability, our metal C Purlins are ideal for structural builds requiring dependable wall or floor support. They are available in 140mm, 175mm, and 200mm depths and formed from robust 1.8mm thick steel to provide dependable load-bearing performance.

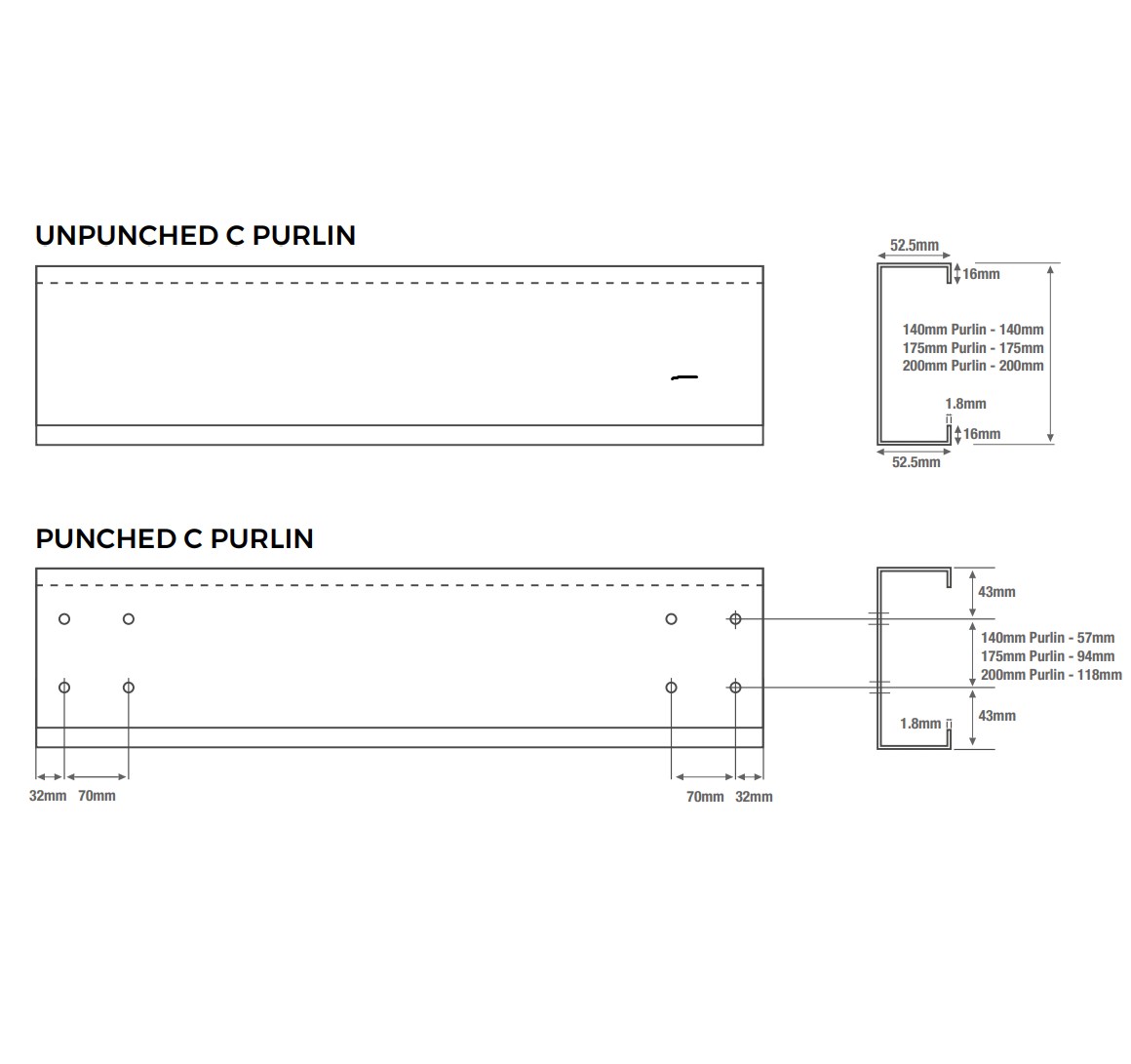

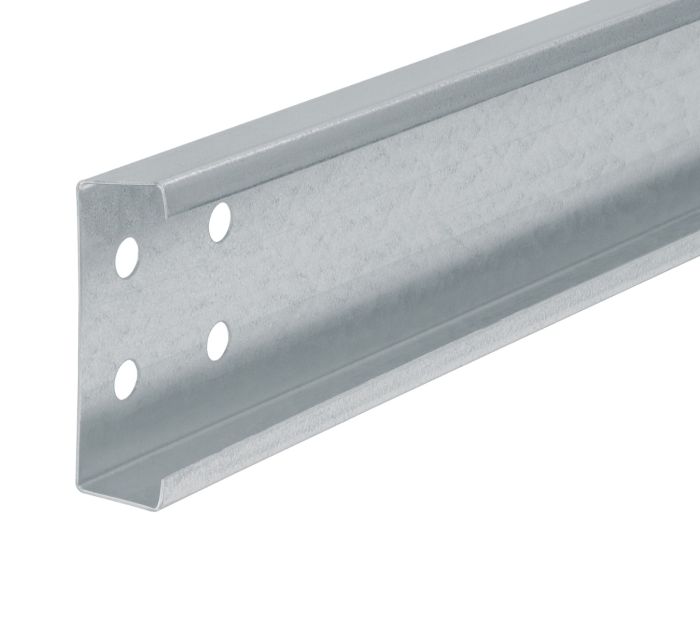

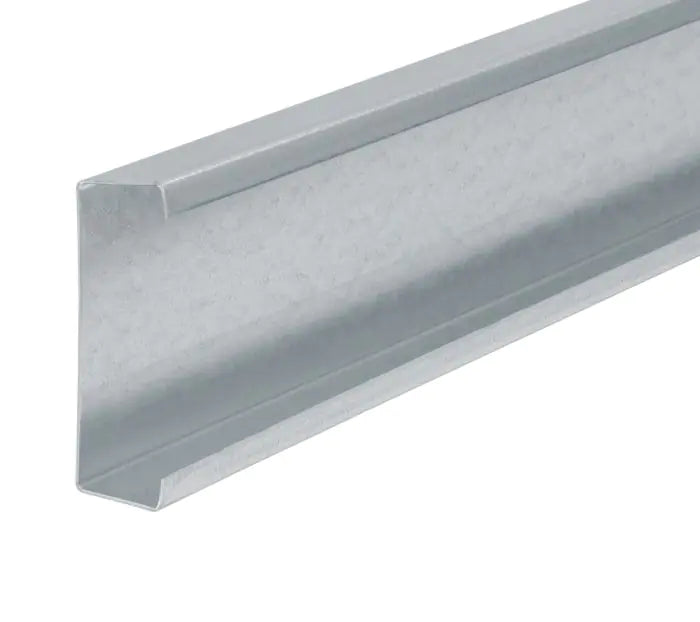

Punched C Purlins are compatible with our Purlin Cleats, while unpunched options offer flexibility for bespoke installations.
Thanks to their straightforward design, C Section Purlins are quick and easy to install. Complete your project to a professional standard with our range of Metal Cladding Sheets, Z Purlins, and Accessories for a durable, high-quality finish.
Manufactured using precision production systems, Cladco C Section Purlins are made to exacting standards. Their galvanised finish offers excellent resistance to rust and corrosion, ensuring long-term stability and performance.
All Purlins have been independently load tested, with maximum load capacities detailed in accredited test documentation. Always confirm suitability for your specific project requirements.
Tollerence: Purlin cleats are fastened to the roofing structure and serve as attachment points for securing the purlins. When installing cleats, ensure they are positioned within ±5mm of the intended location and aligned within 1 degree of the correct angle. Please note, positioning cleats within this ±5mm tolerance can result in a total spacing variation of up to 10mm between purlins and rails.
- Manufactured to exact lengths
- Made from structural grade Z39 galvanised steel
- 1.8mm thick for maximum strength and longevity
- Lighter, stronger and cheaper than timber purlins
- Independently tested to current CE EN 14782 requirements
