Ubbink Ventus Insulated Roof Terminal for Pitched Roofs 200-180mm
Couldn't load pickup availability
Delivery:
Current Delivery Time: 3 - 5 days
Key Features:
- Spigot Connection Size: 180mm / 200mm
- Overall Height: 1065mm
- Width: 600mm
- Length: 600mm
- Weight: Approx. 6.5kg
- Suitable Pitch: 15° – 55°
- Total Gross Length: 1227mm
- Airflow: Supply / Extract
- Flashing Material: Ubiflex Standard
- Insulated: Insulated roof terminal for improved ventilation performance
- Application: For use on a pitched roof with Roof Tiles and Sheeting
- Extraction: Suitable for bathroom fans & cooker extractors
- Manufacturers code: 169880
Description:
The Ubbink Ventus Insulated Roof Terminal 200-180mm is a high-performance roof ventilation terminal designed for use with heat recovery ventilation (MVHR) systems and other mechanical ventilation applications.
Designed specifically for pitched roofs between 15° and 55°, the Ventus combines an insulated air terminal with an integrated tile base, helping provide a neat, secure and weather-resistant roof penetration. Its clever perpendicular installation design also helps make fitting quicker and easier.
The terminal has been engineered to minimise pressure loss, helping ventilation systems operate efficiently while reducing unnecessary energy consumption. Its raised outlet and integrated drainage design also help prevent the ingress of rain and snow.
Suitable for both air supply and extract, the Ventus connects directly to Ubbink Aerfoam 160mm and 200mm insulated ductwork, with adaptors allowing connection to 150mm and 180mm ducting.
- Suitable for pitched roofs from 15° to 55°
- Designed for MVHR and mechanical ventilation systems
- Suitable for both supply and extract air
- Insulated roof terminal for improved ventilation performance
- Optimised design for low pressure loss
- Helps improve ventilation efficiency and reduce energy consumption
- Raised outlet helps prevent rain and snow ingress
- Integrated drainage channels
- Perpendicular roof penetration for quick and straightforward installation
- Integrated tile base with Ubiflex flashing
- Compatible with 160mm and 200mm Aerfoam ducting
- Adaptors allow connection to 150mm and 180mm ducting
- Black finish

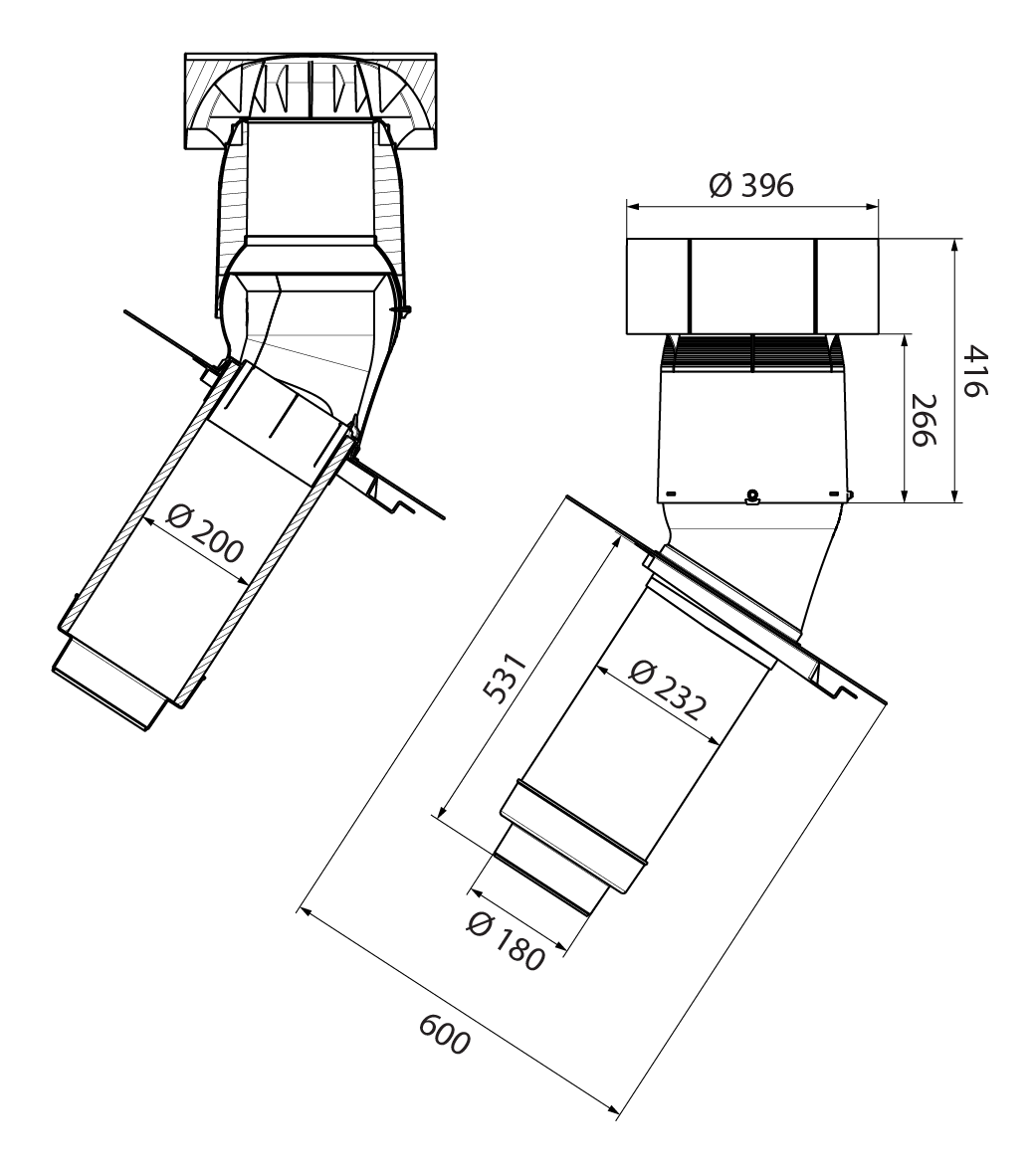

Technical Information
- Connection Size: 180mm / 200mm
- Airflow: Supply / Extract
- Roof Pitch: 15° – 55°
- Flashing Material: Ubiflex Standard
- Colour: Black
- Overall Height: 1065mm
- Width: 600mm
- Length: 600mm
- Weight: Approx. 6.5kg
- Ubbink Article Number: 169880
The Ubbink Ventus 200-180mm Pitched Roof Terminal provides a neat, weather-resistant and energy-efficient termination point for larger diameter ventilation systems, making it particularly well suited to modern MVHR and mechanical ventilation installations.
