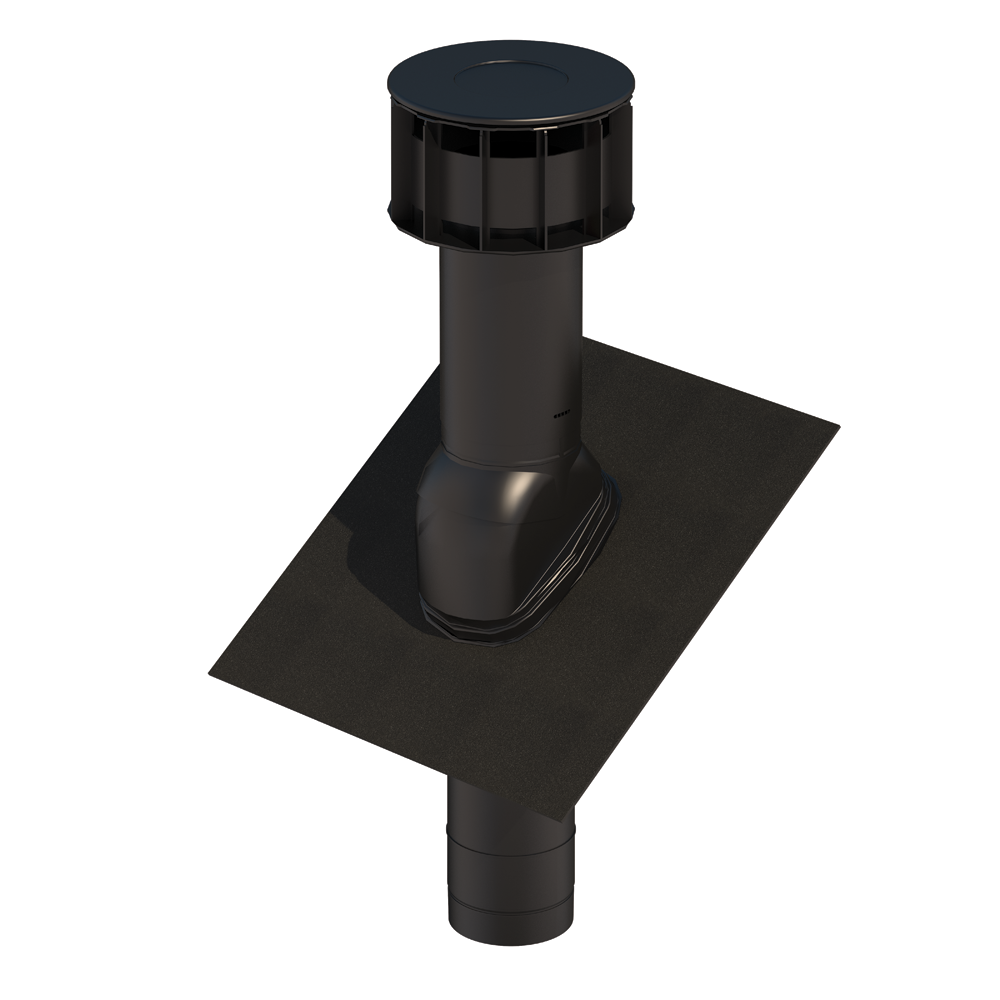

Ubbink UB35 Multivent Roof Terminal - 160mm Diameter for Tiles
Couldn't load pickup availability
Delivery:
Current Delivery Time: 2 - 3 Days
Key Features:
- Spigot Diameter: 160mm
- Height above roof: 500mm
- Flashing collar: 500mm x 600mm
- Total gross length: 883mm
- Suitable Pitch: 25° - 45°
- Material: Injection moulded/Vacuum formed/Ubiflex construction.
- Application: For use on a pitched roof with Tiles
- Extraction: Suitable for mechanical extraction such as bathroom fans & cooker extractors
- Manufacturers Product Code: 50145680 UB35/160 black+ UL tile
Description:
Ubbink multivents are specially designed for systems requiring a low resistance terminal. The multivent service terminals are suitable for mechanical and natural (passive) ventilation installations. They are a stack terminal for tiles and have low pascal resistance figures. Multivents are suitable for roof pitches of 25º - 45º and come complete with flashing.
These units are suitable for roof pitches over 25° and for mechanical extraction.
The 160mm diameter provides 20,000mm² free vent area.
Downloads & Data Sheets:
