Ubbink Ventus Insulated Roof Terminal for Pitched Roofs 160 - 150mm
Couldn't load pickup availability
Delivery:
Current Delivery Time: 3 - 5 days

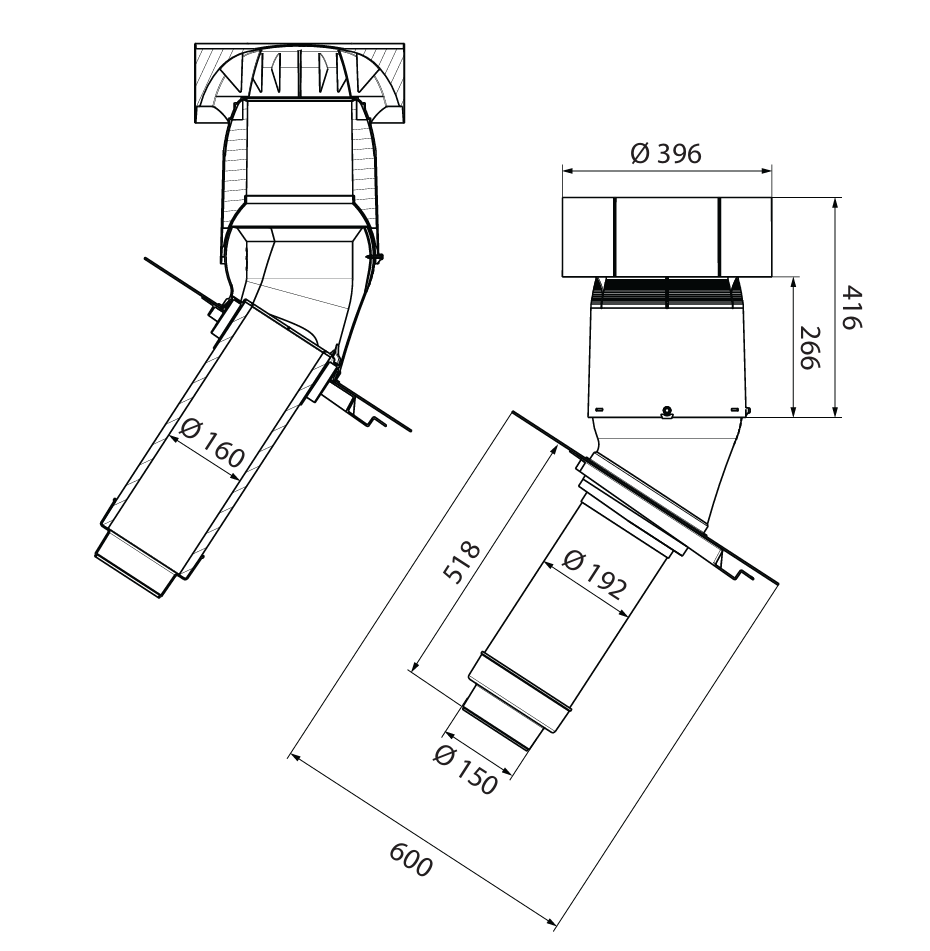

Key Features:
- Spigot Connection Size: 160mm / 150mm
- Overall Height: 1065mm
- Height Above Roof: 415mm
- Width: 600mm
- Length: 600mm
- Weight: Approx. 6.5kg
- Suitable Pitch: 15° – 55°
- Airflow: Supply / Extract
- Flashing Material: Ubiflex Standard
- Insulated: Insulated roof terminal for improved ventilation performance
- Application: For use on a pitched roof with Roof Tiles and Sheeting
- Extraction: Suitable for bathroom fans & cooker extractors
- Manufacturers code: 169885
Description:

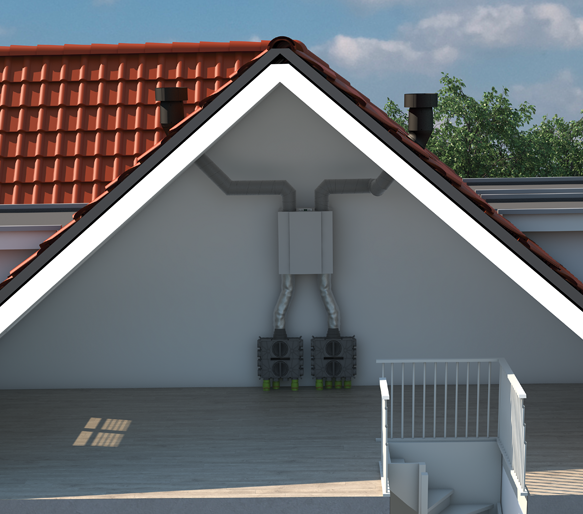

The Ubbink Ventus Insulated Roof Terminal 160-150mm is a high-performance roof terminal designed for use with heat recovery ventilation (MVHR) systems and other residential or small commercial ventilation applications.
Designed to provide efficient supply or extract airflow through pitched roofs, the Ventus features an insulated construction and optimised airflow design, helping to minimise pressure loss within the ventilation system. Reduced resistance helps improve overall ventilation efficiency while contributing towards lower energy consumption.

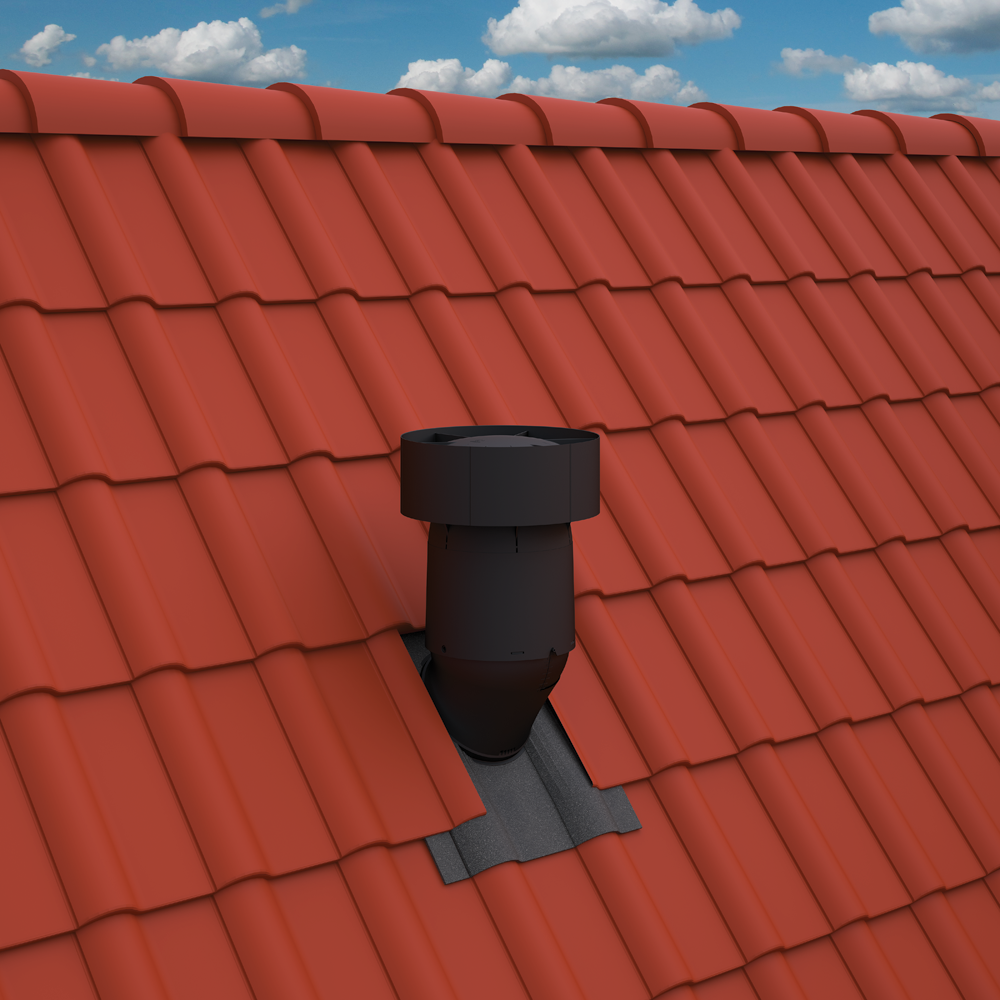

Installation is made straightforward by Ubbink's clever perpendicular roof penetration design, while the integrated Ubiflex flashing provides a flexible and reliable weatherproof connection to the roof covering.
The terminal has also been carefully designed to protect the ventilation system against the elements. Its raised outlet and integrated drainage system help prevent rain and snow ingress, making it a durable solution for exposed roof applications.
Designed primarily to connect with 160mm Aerfoam insulated ductwork, the supplied adaptor allows connection to 150mm ducting, making the terminal suitable for a wide range of ventilation installations.
- Suitable for MVHR, supply and extract ventilation systems
- Designed for 150mm and 160mm duct connections
- Insulated construction suitable for modern ventilation systems
- Optimised design provides low pressure loss and efficient airflow
- Perpendicular roof penetration allows quick and straightforward installation
- Raised outlet helps prevent rain and snow entering the ventilation system
- Integrated drainage design provides additional protection against moisture ingress
- Supplied with flexible Ubiflex roof flashing
- Suitable for residential and small commercial applications
- Finished in Black
Specifications:
- Manufacturer: Ubbink
- Range: Ventus
- Product Type: Insulated Pitched Roof Terminal
- Connection Size: 150mm / 160mm
- Airflow Direction: Supply / Extract
- Flashing Material: Ubiflex Standard
- Colour: Black
- Overall Height: 1065mm
- Height Above Roof: 415mm
- Flashing Size: 600mm x 600mm
- Net Weight: 6.5kg
- Ubbink Article Number: 169885
The Ubbink Ventus 160-150mm Pitched Roof Terminal provides a neat, weather-resistant and energy-efficient termination point for larger diameter ventilation systems, making it particularly well suited to modern MVHR and mechanical ventilation installations.
Downloads & Data Sheets:
Related Products
Ubbink Ventus Insulated Roof Terminal for Pitched Roofs 160 - 150mm

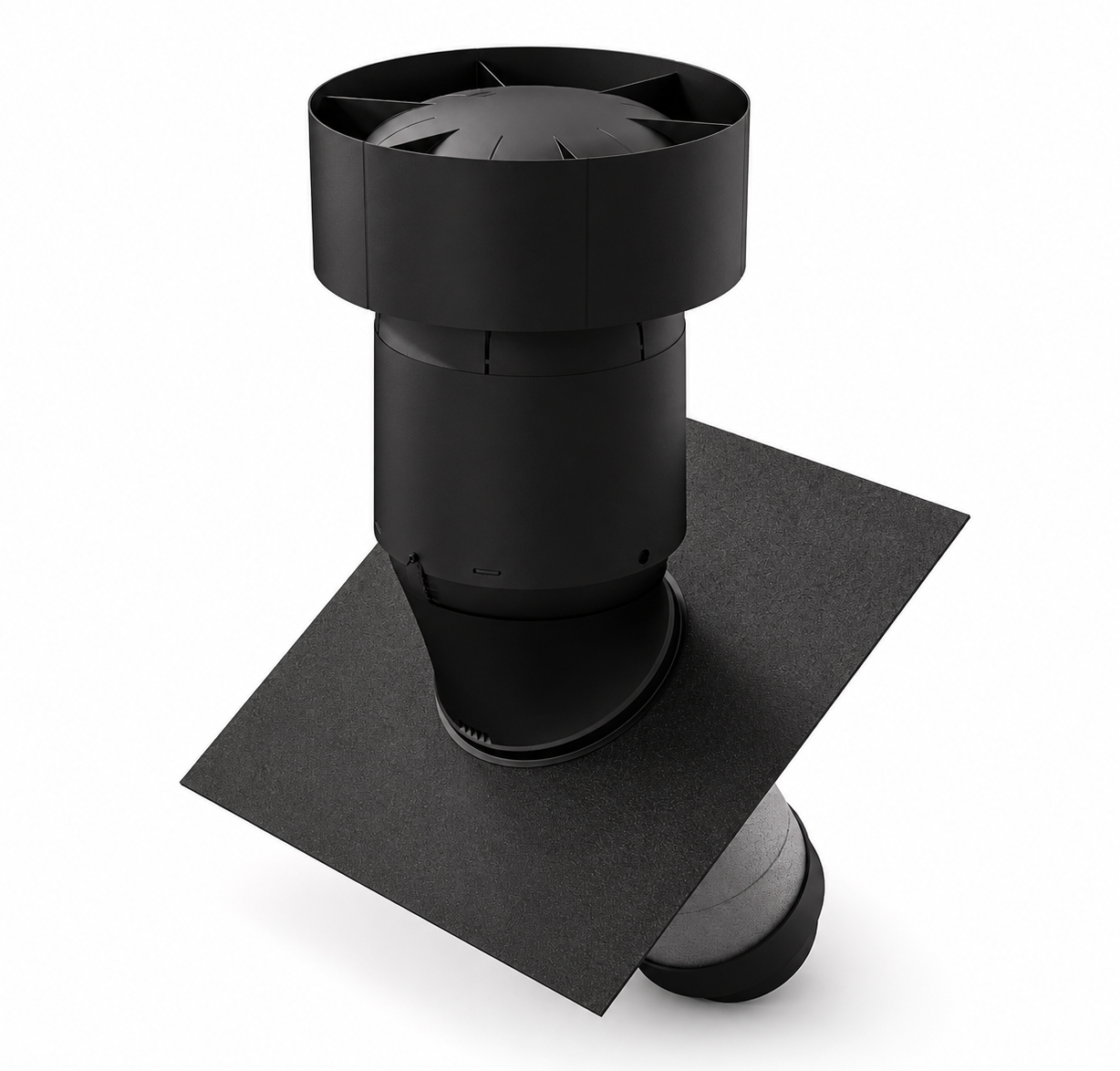

Ubbink Ventus Insulated Roof Terminal for Pitched Roofs 200-180mm
