Cladco 34/1000 Box Profile Sheeting with DRIPSTOP Anti-Condensation 0.7 PVC Plastisol Coated Roof Sheet
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days

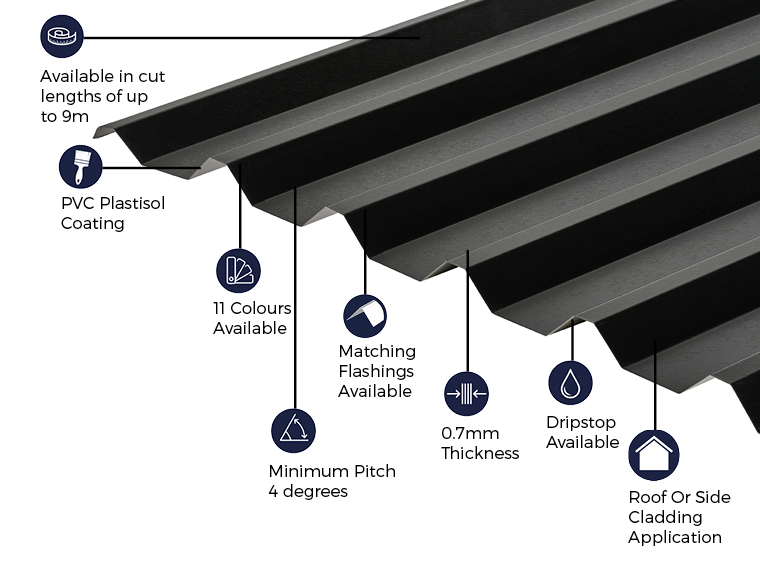

Key Features:
- External Finish: PVC Plastisol (please select colour from swatches above)
- Internal Finish: Off White DRIPSTOP Anti-condensation fabric
- Sheet Material: Galvanised Steel

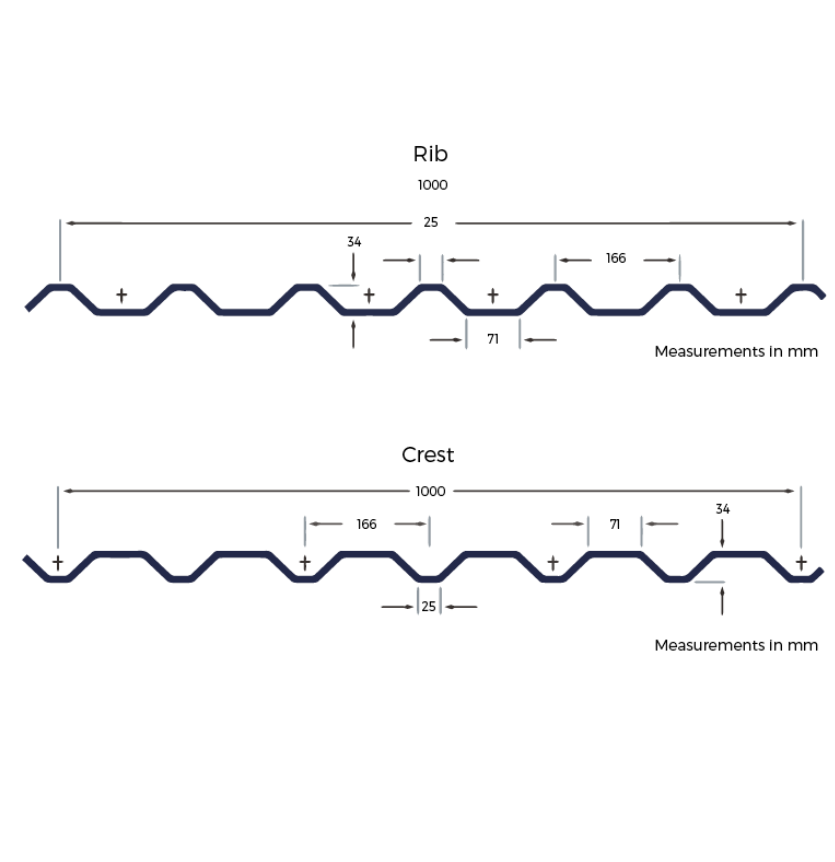

- External Face: Profiled 34/1000, 34mm profile height, 166mm pitch centres
- Width: 1000mm (when lapped)
- Length: Cut to size 1000mm - 9000mm
- Gauge thickness: 0.7mm
- Weight: 6.22kg/m2
- Application: Wall or Roof
Description:
Dripstop is a proven, economical way of stopping the underside of a metal roof dripping with condensation on uninsulated panels, by trapping and releasing water droplets back into the air. Dripstop membrane turns steel sheeting into anti-condensation roof sheets and is designed to reduce dripping, or running condensate, by creating a vapour barrier on metal roofing panels in buildings with moderate to high levels of humidity.
Do I need Dripstop Anti-condensation?
Dripstop creates a medium for trapping moisture in specially designed pockets formed in the felt membrane. As moisture condenses in high temperature and humidity conditions, Dripstop controls how cyclical condensate forms onto the underside of steel roofing. It does not prevent condensation from forming and, when working correctly, feels damp to the touch.
To help Dripstop work effectively, it is recommended to have a pitched roof of 10 degrees or more. Any lower than this and the shallow angle will cause the water droplets to drip down off the sheet without effectively evaporating back into the environment.

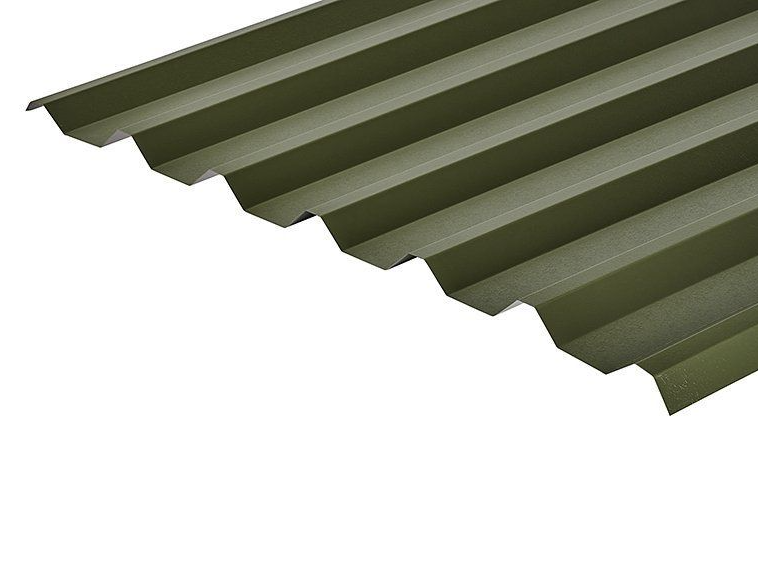

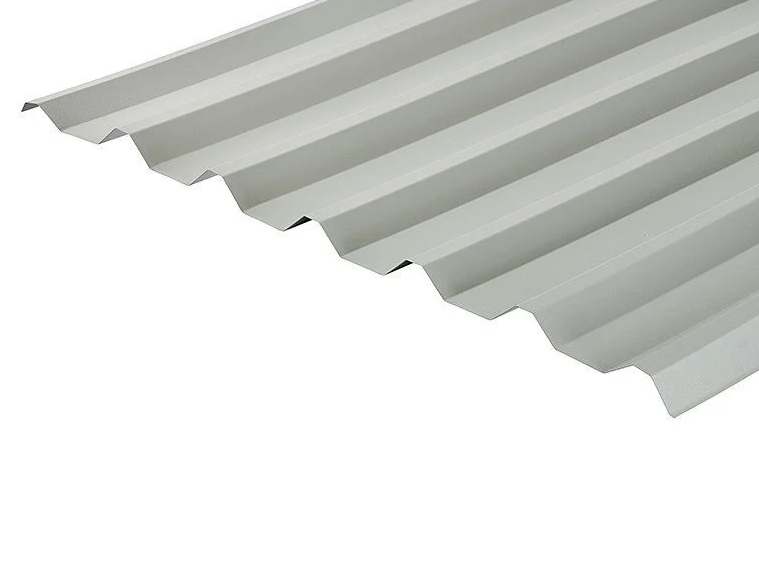

Cladco 34/1000 trapezoidal box profile sheets are the most popular and strongest profile roofing sheets on the UK market. Each single skin profile sheet features 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1,000mm when installed, these box roofing sheets give you a simple yet strong way to cover your roof.

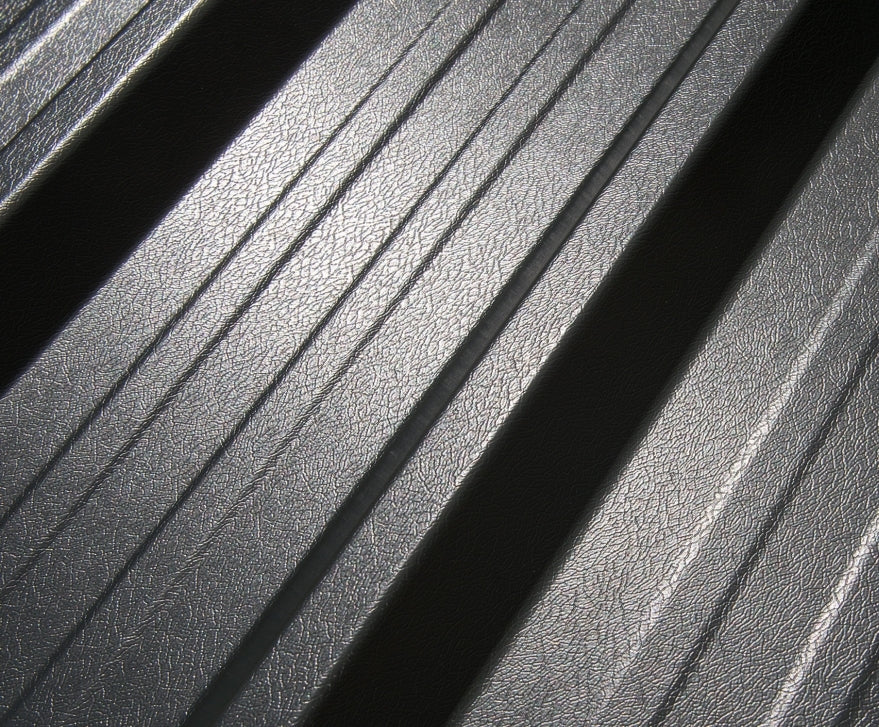

Box profile roofing sheets are formed from 1250mm wide galvanised steel strips which will give a secure weatherproof lap from profile sheet to profile sheet. Sheets are coated with PVC Plastisol and available in 0.5 or 0.7 mm thickness. Plastisol sheets provide a hard-wearing, low maintenance finish.
Most commonly seen on industrial, agricultural and commercial buildings, box profile sheets can be used for domestic buildings where required. Available as a single skin profile sheet, it can be used to build up an insulated system, to over clad an existing roof or on its own to provide a solid weatherproof covering on any building. Suitable for roof application of 4 degrees or higher.
Fast and easy to fit, these lightweight box profile steel roofing sheets are an economical way to cover your building. Available in a traditional range of colours and independently tested to current CE EN 14782 requirements, our box profile sheets will provide you with a long-lasting and low maintenance solution for years to come.
Free Sample Pack:
Order a Free of Charge Colour Swatch Sample Pack
Downloads & Data Sheets:
Product Installation Instructions
PVC Plastisol Performance Overview
