Cladco 41/1000 Tile Form with DRIPSTOP Anti-Condensation 0.6 Thick Mica Coated Tile Effect Roof Sheet
Couldn't load pickup availability
Delivery:
Current Delivery: 7 - 10 days

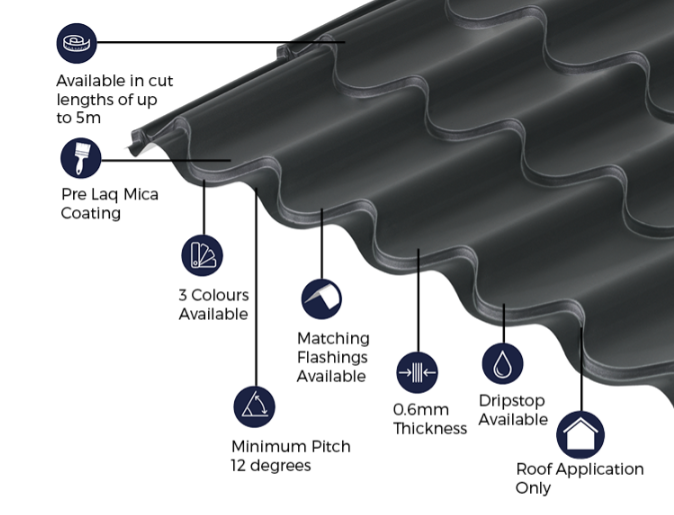

Key Features:
- External Finish: Pre Laq Mica Coating (please select colour)
- Internal Finish: Off White DRIPSTOP Anti-condensation fabric
- Sheet Material: Galvanised Steel

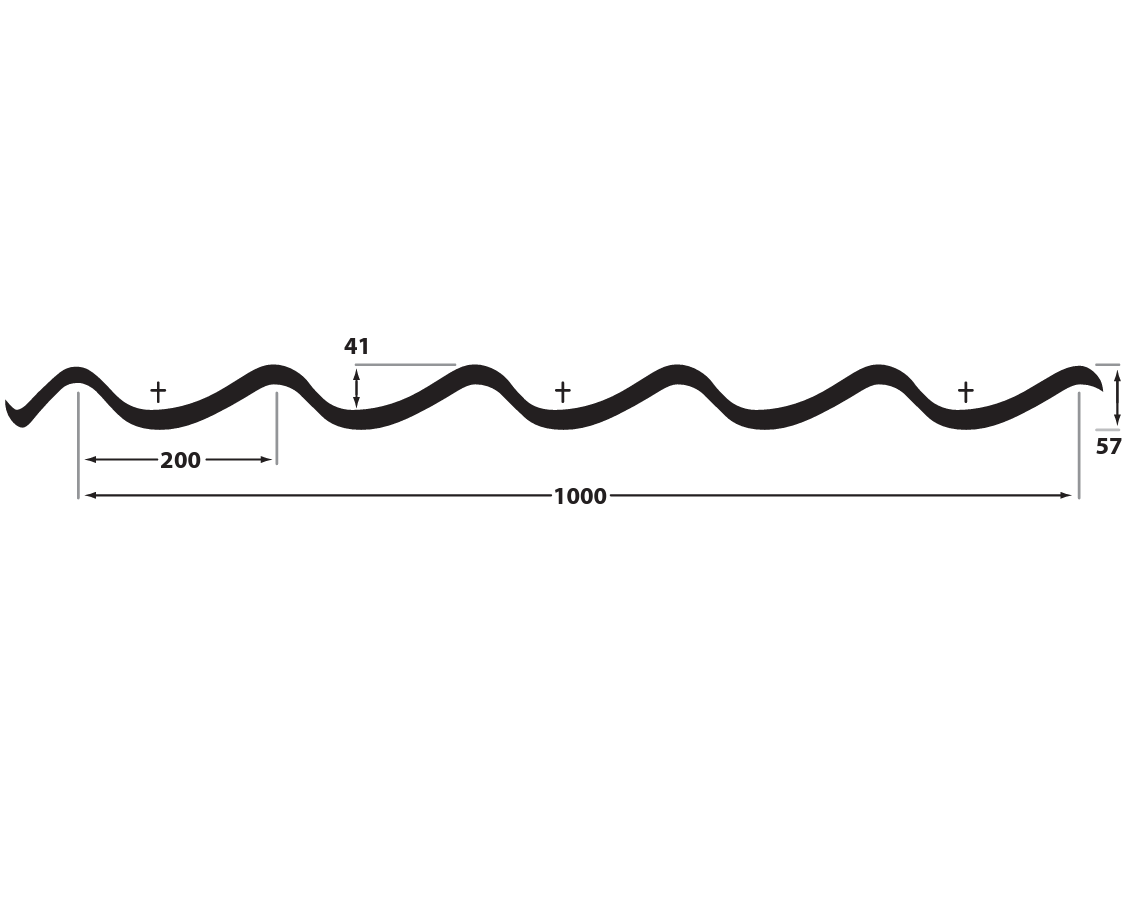

- External Face: 41/1000 tile sheet, 41mm profile height, 200mm pitch
- Width: 1000mm (when lapped)
- Length: Cut to size 1000mm - 6000mm
- Gauge thickness: 0.6mm
- Weight: 6.6kg/m2
- Minimum Pitch: 12 degrees
Description:
Dripstop is a proven, economical way of stopping the underside of a metal roof dripping with condensation on uninsulated panels, by trapping and releasing water droplets back into the air. Dripstop membrane turns steel sheeting into anti-condensation roof sheets and is designed to reduce dripping, or running condensate, by creating a vapour barrier on metal roofing panels in buildings with moderate to high levels of humidity.
Do I need Dripstop Anti-condensation?
Dripstop creates a medium for trapping moisture in specially designed pockets formed in the felt membrane. As moisture condenses in high temperature and humidity conditions, Dripstop controls how cyclical condensate forms onto the underside of steel roofing. It does not prevent condensation from forming and, when working correctly, feels damp to the touch.
To help Dripstop work effectively, it is recommended to have a pitched roof of 10 degrees or more. Any lower than this and the shallow angle will cause the water droplets to drip down off the sheet without effectively evaporating back into the environment.

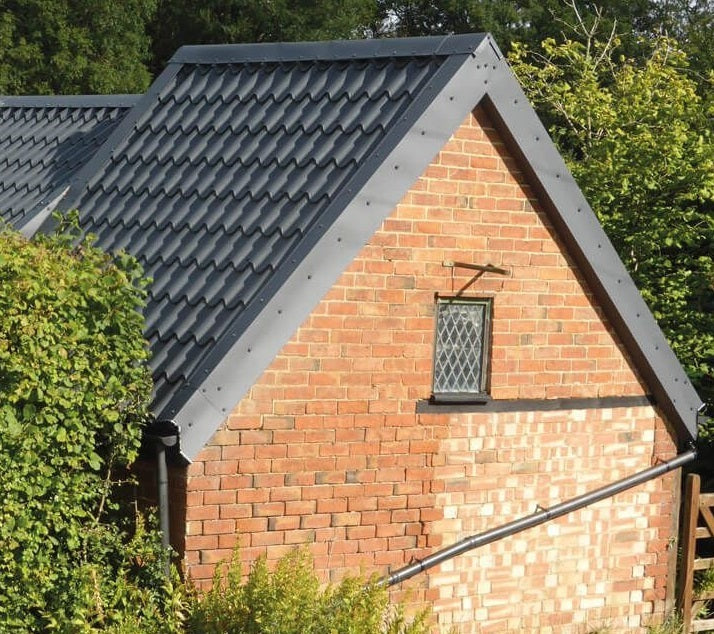

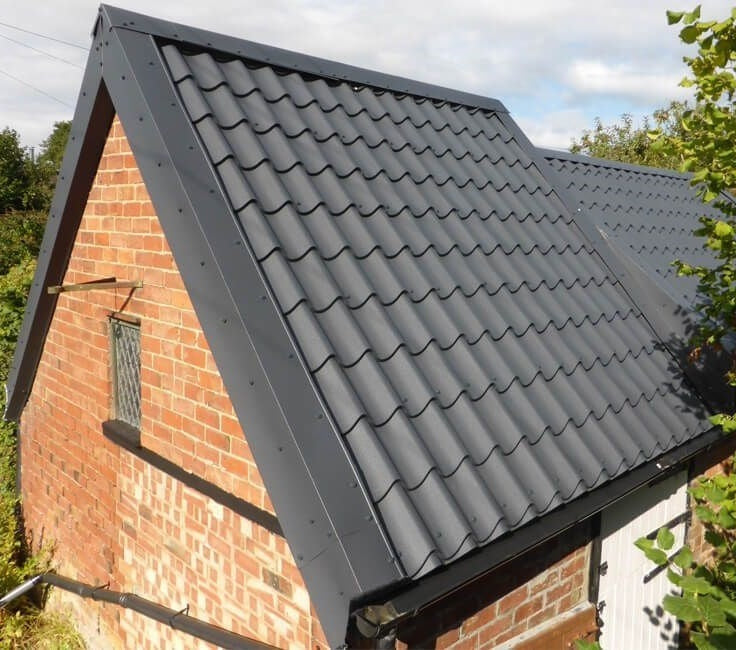

Cladco 41/1000 Tile Form are often referred to as tile effect roofing sheets, these Tile form roof tile sheets are designed to look like an authentic pan tile roof. Cladco's Tile Form metal sheets really do give the appearance of traditional clay tiles. Using 0.6mm galvanised Swedish Steel, they are formed and then given an extremely tough and hard-wearing Mica coat on the external face.

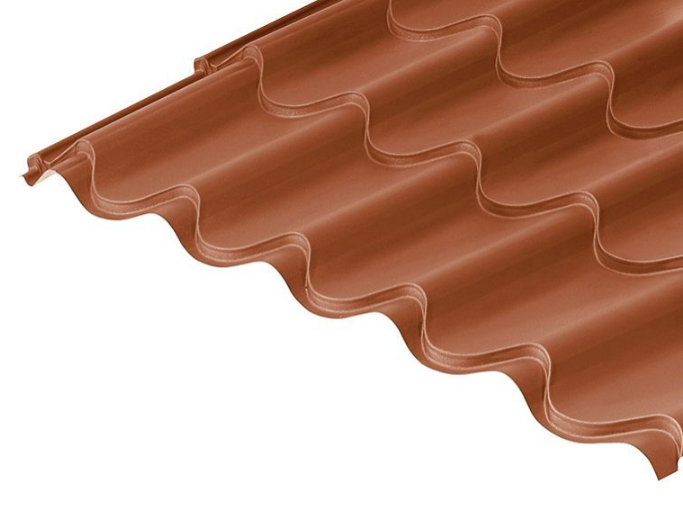

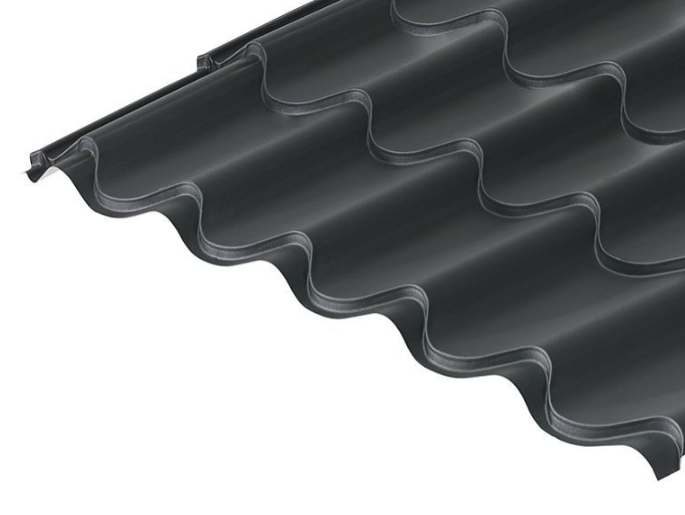

Cladco 41/1000 Tile Form feature a profile height of 41mm and each pantile roof sheet covers a width of 1000mm when installed and is available in either Copper Brown, Graphite Grey or Black.

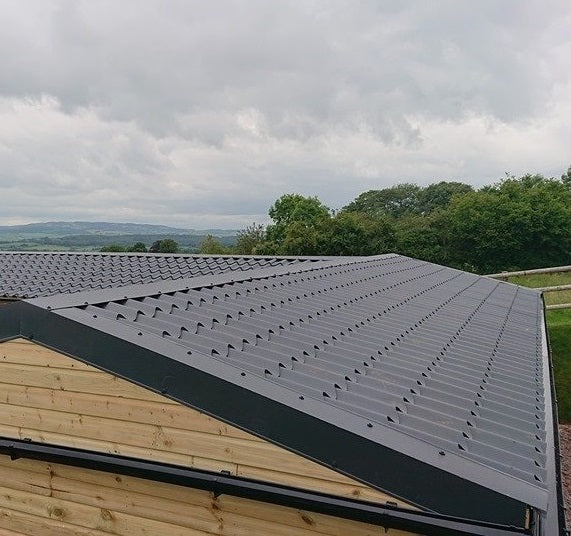

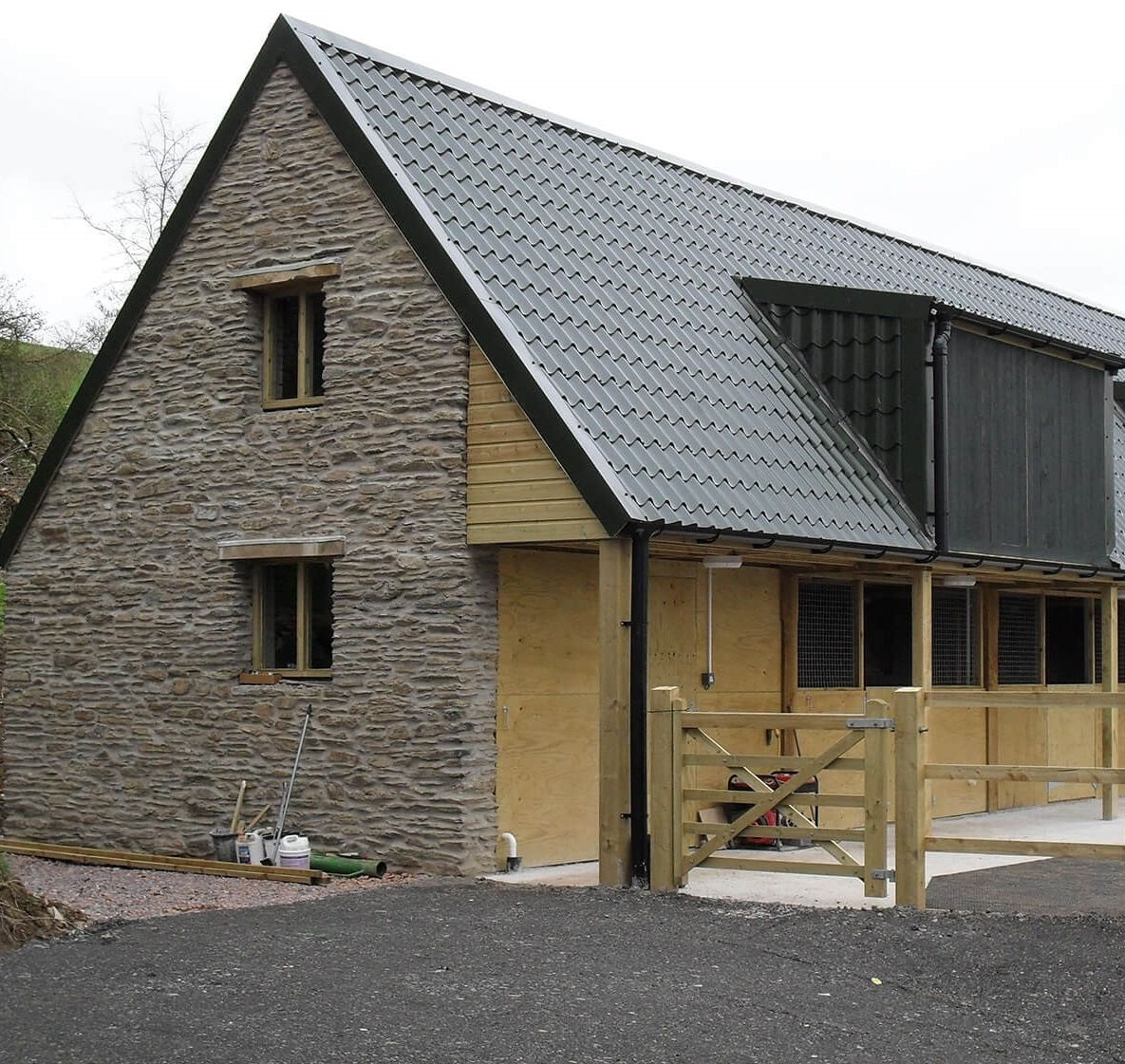

Available for use as single skin tile form on domestic, industrial, commercial and agricultural buildings. These tile effect roofing sheets can be used as single skin tile form sheeting, to over clad an existing roof or an external face of a built-up insulated system. Suitable for roof pitches of 12 degrees or higher.

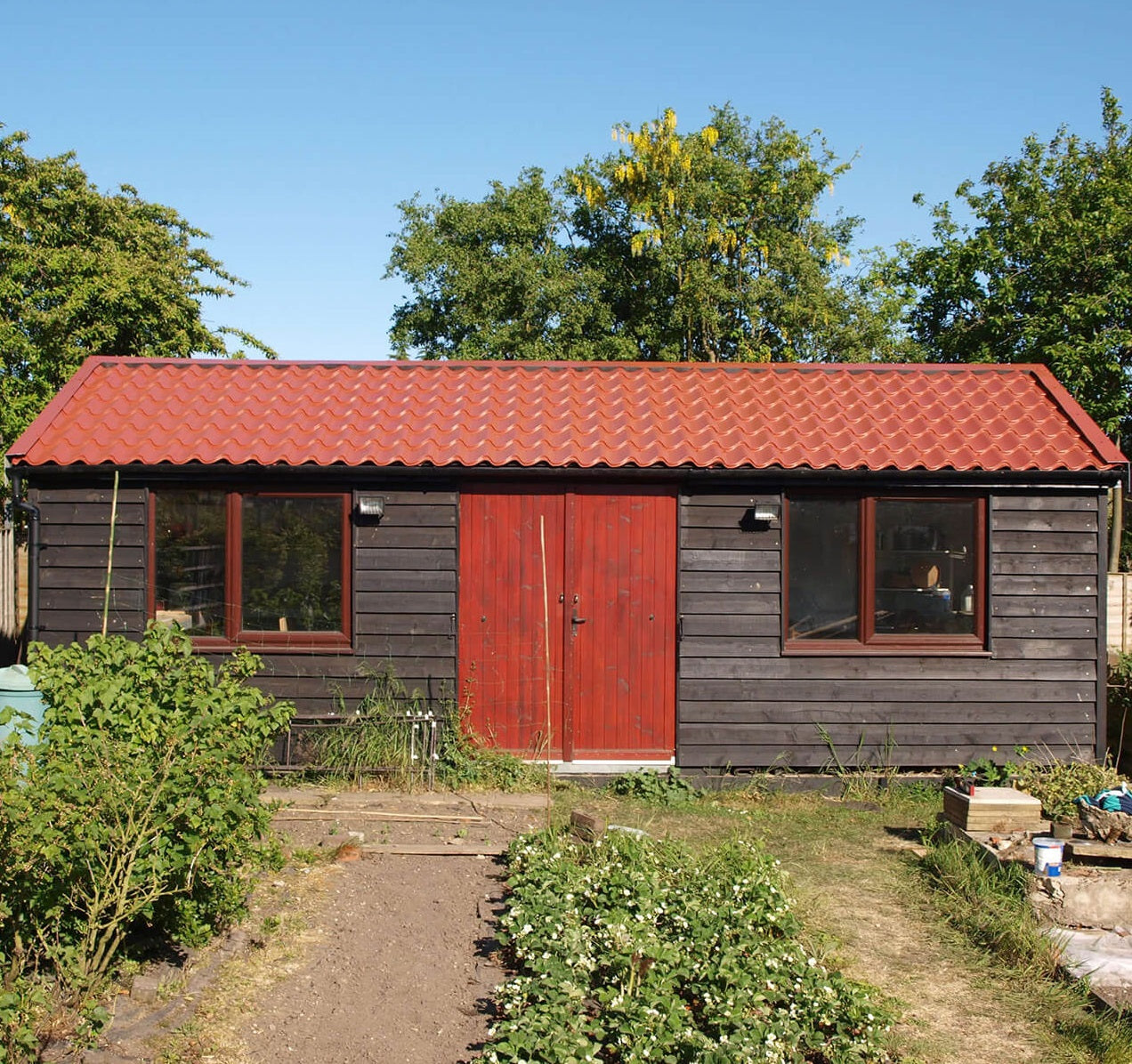

This desirable steel roof tile sheets blend well into older, culturally sensitive areas and can also give a fresh new look to new buildings. Cladco Profiles tile sheets use Greencoat colour coated steel, an eco-friendly long-lasting material which is far superior to other materials, meaning your new roof will last much longer.
Downloads & Data Sheets:
Product Installation Instructions
