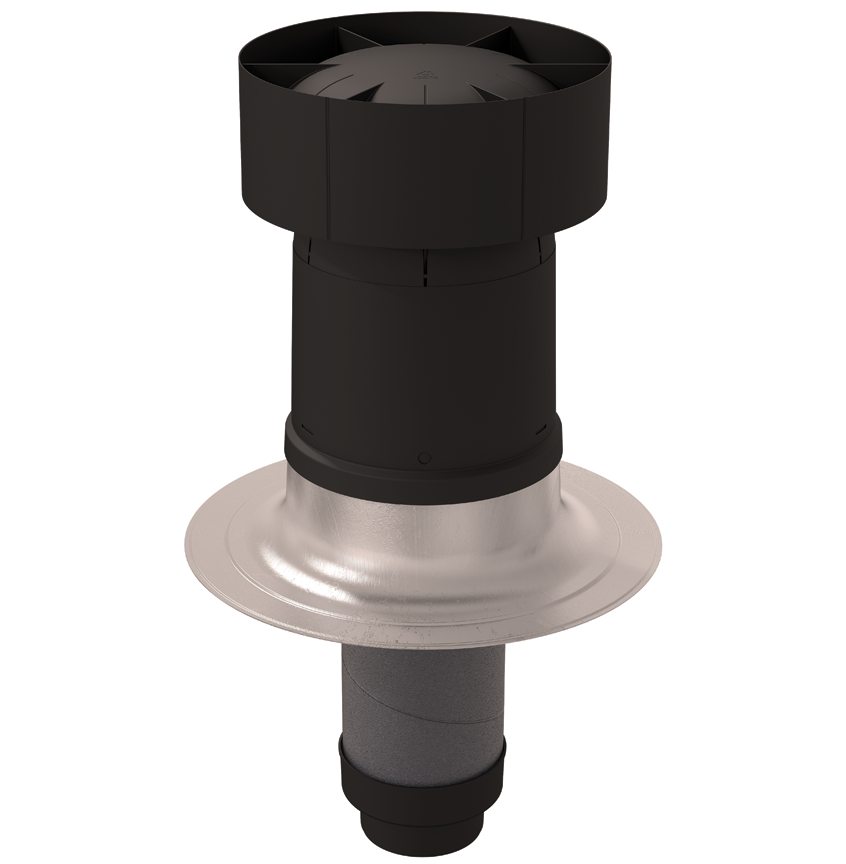

Ubbink Ventus Flat Roof Vent Terminal 160-150mm
Couldn't load pickup availability
Delivery:
Current Delivery Time: 3 - 5 Days
Key Features:
- Connection Size: 150mm / 160mm
- Airflow Direction: Supply / Extract
- Flashing Material: Aluminium

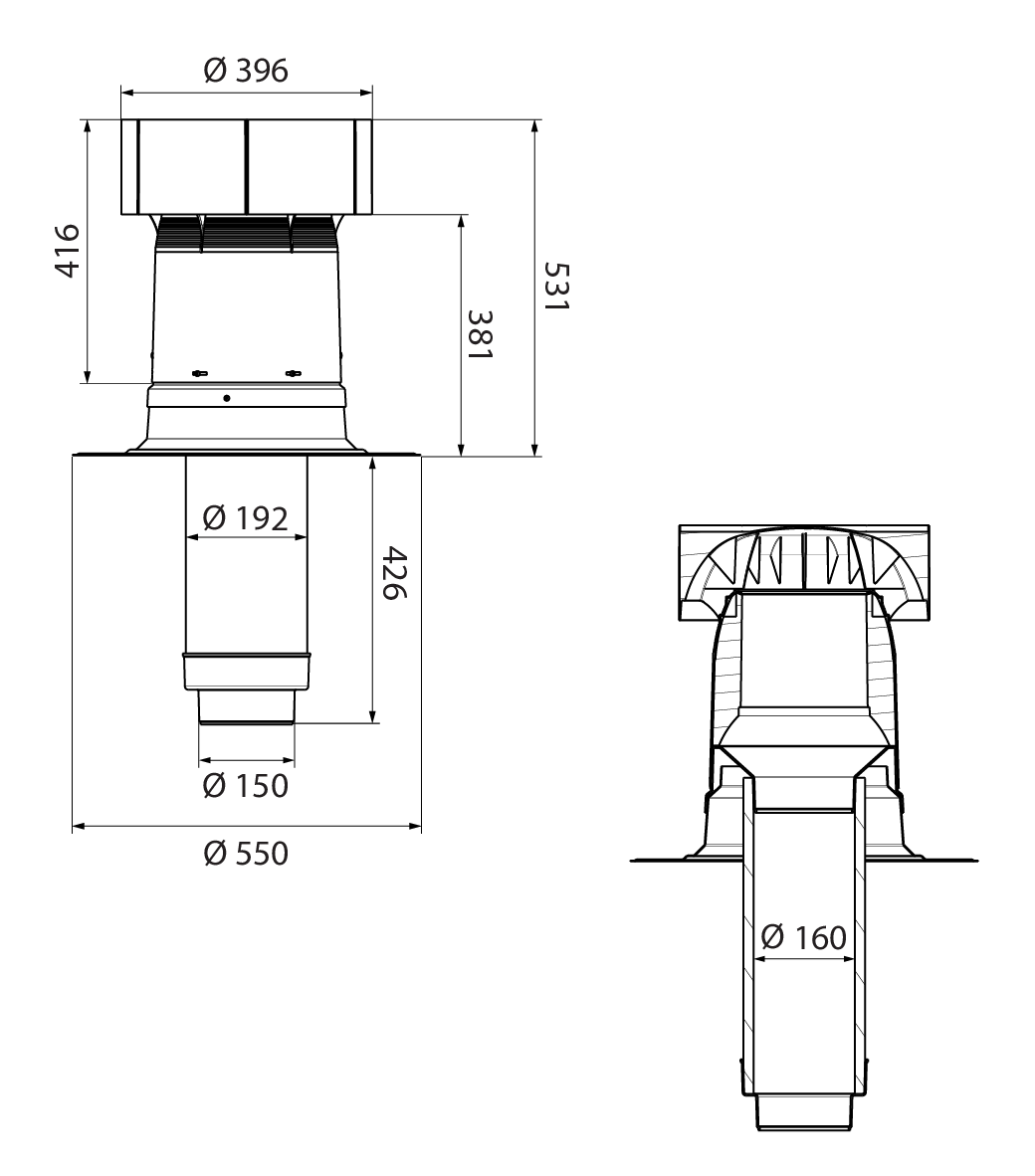

- Overall Height: Approx. 945mm
- Height Above Roof: Approx. 530mm
- Base Size: Approx. 550mm x 550mm
- Net Weight: Approx. 4.7kg
- Flashing Material: Aluminium
- Flue: Insulated construction helps minimise condensation
- Suitability: Suitable for both air supply and extraction applications, including MVHR systems, mechanical ventilation and kitchen extraction
- Extraction: Suitable for bathroom fans & cooker extractors
- Application: For use with Asphalt, Built-up felt, Bitumen roofing, EPDM rubber roofing, GRP / fibreglass roofs, PVC & Single Ply roofing membranes
- Ubbink Article Number: 169886
Description:
The Ubbink Ventus Flat Roof Terminal 160-150mm is a high-performance insulated roof terminal designed for use with mechanical ventilation and heat recovery systems, providing an efficient and reliable solution for both air supply and extract through flat roofs.
Part of Ubbink’s latest generation of Ventus roof terminals, it has been engineered to provide optimised airflow with minimal pressure loss, helping ventilation systems operate more efficiently while reducing unnecessary energy consumption.
The terminal is designed to connect directly to 160mm Aerfoam insulated ducting and can also be used with 150mm ductwork via the appropriate adaptor, making it suitable for a wide variety of residential and small commercial ventilation installations.
Its intelligent design incorporates a raised outlet and integrated drainage features to help prevent rain and snow ingress, while the insulated construction reduces the risk of condensation forming within the ventilation system.
Supplied with a durable black aluminium flat roof flashing, the Ventus provides a neat, professional roof penetration while offering quick and straightforward installation.

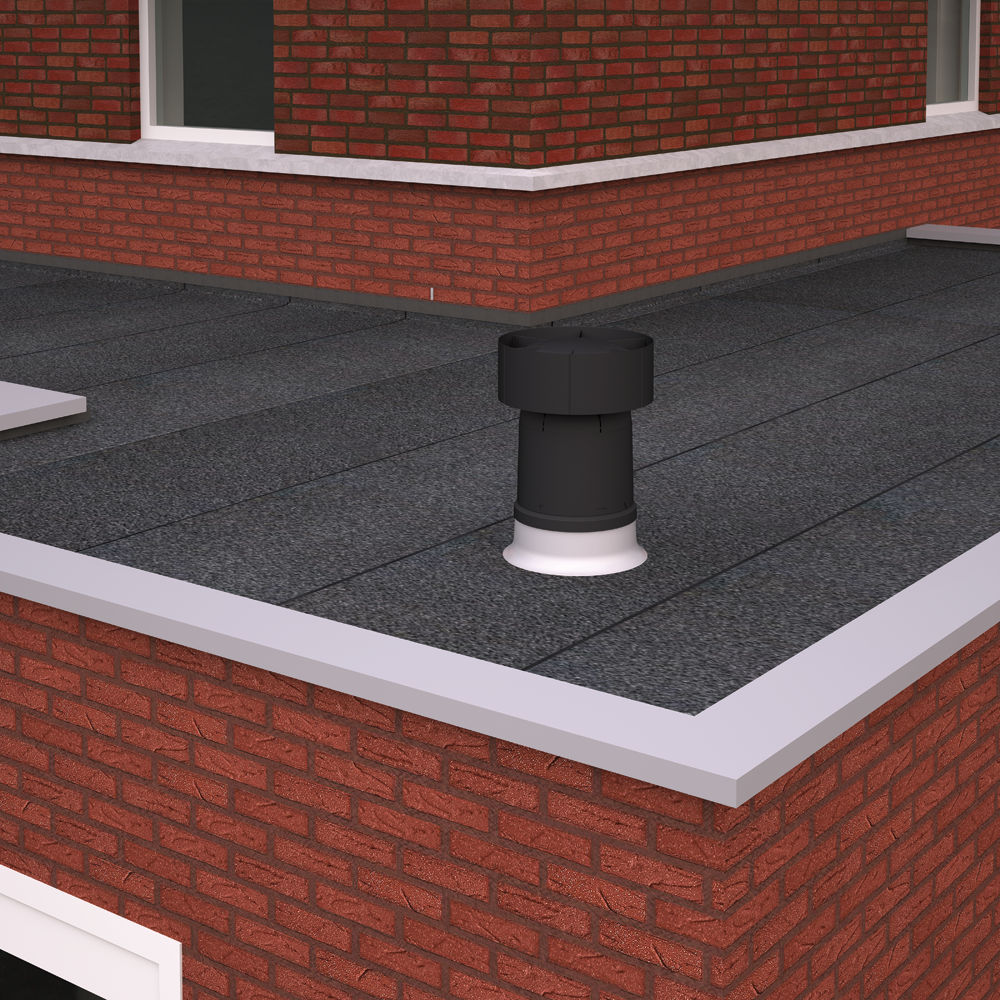

- Suitable for flat roof applications
- Designed for air supply and extract ventilation
- Ideal for MVHR and mechanical ventilation systems
- Suitable for 160mm ductwork
- Compatible with 150mm ductwork using an adaptor
- Optimised design provides low pressure loss
- Helps improve overall ventilation system efficiency
- Insulated construction helps minimise condensation
- Raised outlet helps prevent rain and snow entering the system
- Integrated drainage design
- Durable aluminium flashing
- Colour: Black
- Quick and straightforward installation
- Suitable for residential and small commercial applications
Downloads & Data Sheets:
