Ubbink Ventus Flat Roof Vent Terminal 200-180mm
Couldn't load pickup availability
Delivery:
Current Delivery Time: 3 - 5 Days
Key Features:
- Connection Size: 200mm / 180mm
- Airflow Direction: Supply / Extract
- Flashing Material: Aluminium

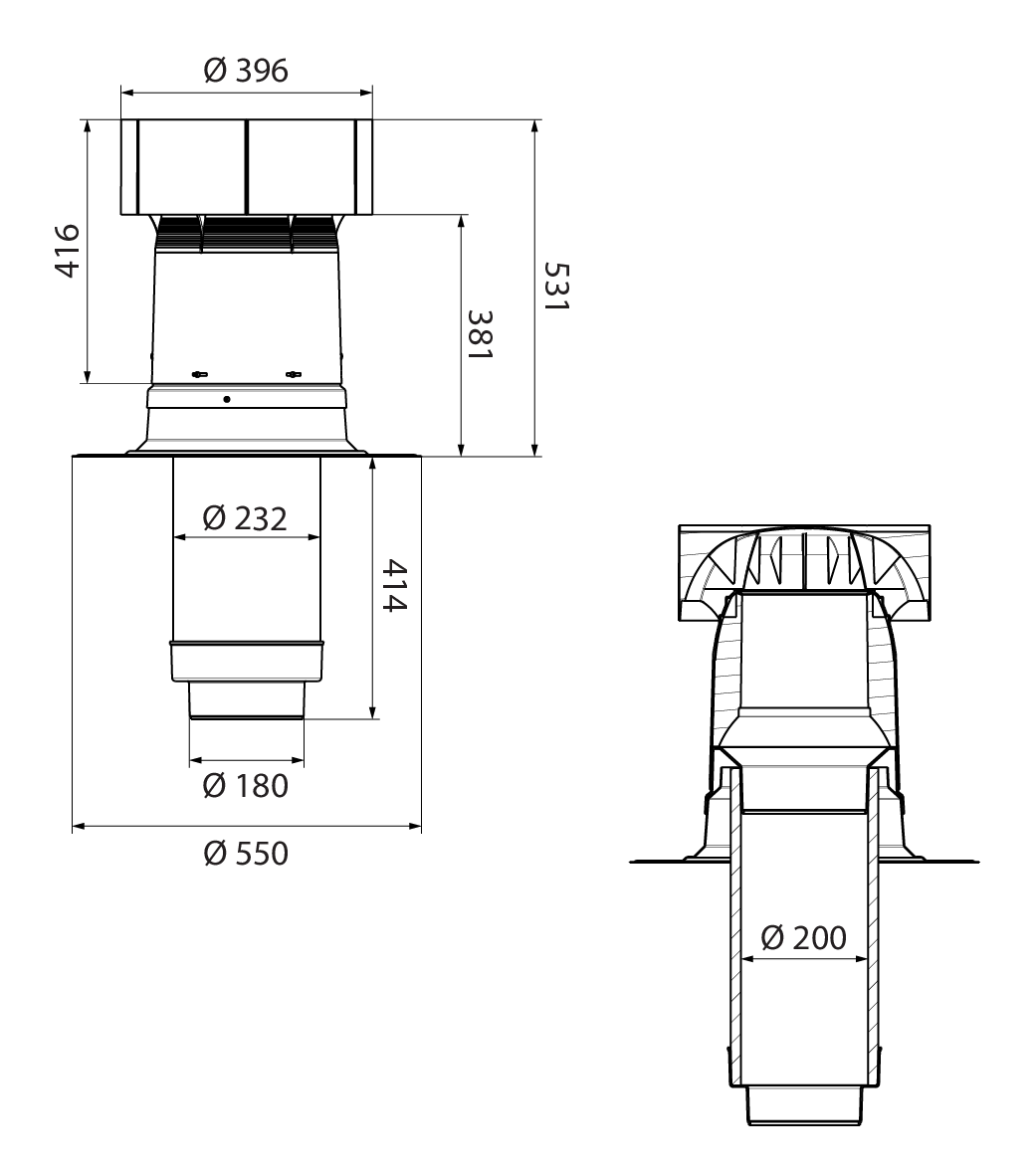

- Overall Height: Approx. 945mm
- Height Above Roof: Approx. 530mm
- Base Size: Approx. 550mm x 550mm
- Net Weight: Approx. 4.7kg
- Flashing Material: Aluminium
- Flue: Insulated construction helps minimise condensation
- Suitability: Suitable for both air supply and extraction applications, including MVHR systems, mechanical ventilation and kitchen extraction
- Extraction: Suitable for bathroom fans & cooker extractors
- Application: For use with Asphalt, Built-up felt, Bitumen roofing, EPDM rubber roofing, GRP / fibreglass roofs, PVC & Single Ply roofing membranes
- Ubbink Article Number: 169881
Description:
The Ubbink Ventus Flat Roof Terminal 200-180mm is a high-performance insulated roof terminal designed for heat recovery ventilation systems (MVHR) and other mechanical ventilation applications on flat roofs.
Developed for residential and small commercial properties, the Ventus terminal has been engineered to provide excellent airflow performance while helping to minimise pressure loss within the ventilation system. Reduced resistance allows the ventilation system to operate more efficiently, helping to lower energy consumption and improve overall system performance.
The terminal features Ubbink's clever perpendicular roof penetration design, making installation straightforward while providing a neat and secure connection through the flat roof construction.
Its raised outlet and integrated drainage design help prevent the ingress of rain and snow, providing reliable protection in exposed roof locations.
The Ventus 200-180mm terminal is designed to connect directly to Ubbink Aerfoam 160mm and 200mm insulated ductwork, with adaptors available for connection to 150mm and 180mm ducting.
The Ubbink Ventus Flat Roof Terminal 200-180mm provides a reliable, energy-efficient and professional solution for terminating larger diameter ventilation ductwork through a flat roof, making it particularly suitable for modern MVHR and whole-house ventilation installations.
- Suitable for flat roof ventilation installations
- Designed for MVHR heat recovery systems
- Suitable for both air supply and air extract
- Compatible with 180mm and 200mm ventilation systems
- Designed to fit Aerfoam 160mm and 200mm ductwork
- Adaptors available for 150mm and 180mm ducting
- Insulated construction helps reduce heat loss and condensation risk
- Optimised design provides low pressure loss and efficient airflow
- Raised outlet helps prevent rain and snow ingress
- Integrated drainage system for improved weather protection
- Quick and straightforward installation
- Durable aluminium flashing
- Black finish for a discreet appearance on the roof
Downloads & Data Sheets:
