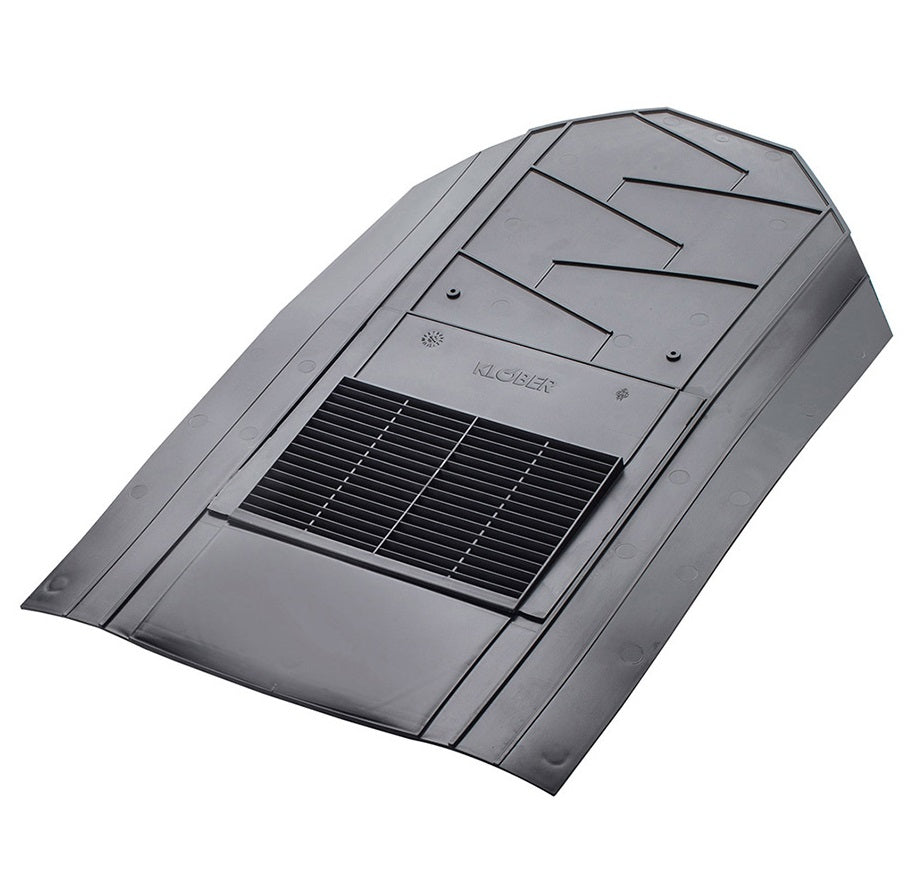

Klober Uni-Line® Slate Vent with 100mm pipe adaptor

Delivery:

NEXT DAY DELIVERY if ordered before 13:00.

Description:

Klober Uni-Line Slate Vent, provided with 100m pipe adaptor. Can be used for roof space ventilation, soil ventilation or mechanical extraction.

Designed as a sleek and discreet, ultra low profile solution. The in-line design makes the vent virtually invisible in the roofline and reduces the build-up of mould growth in the roof space.

The Uni-Line Slate Vent is designed as a sleek and discreet, ultra low profile solution as the in-line design makes the vent virtually invisible in the roofline. Not only is the vent aesthetically pleasing, but also reduces the build-up of mould growth and structural damage in the roof space, caused by damp, poorly ventilated roofs.

Additionally, it can also be used as a terminal for soil and ventilation pipes and mechanical extraction systems. The Uni-Line Slate Vent suits most man-made fibre cement and natural slate roofs with a minimum pitch of 22.5° and provides 6,500mm2 ventilation coverage. Uni-Line Slate Vents are available in slate grey or dark slate colours to blend in with the roof tiles.

Uni-Line Slate Vent is a cleverly designed, fully wind tunnel tested in-line vent, suitable for roof pitches of 22.5° and above.

Suitable for:

Manmade or natural slates
Sizes 600 x 300 or 500 x 250
Pitches between 20°- 70°

Key Features:

• Minimum free ventilation area 6,500mm2
• Designed for roofspace ventilation at low or high level
• Suitable for roof pitches of 22.5 degrees and above
• No soil/mechanical adaptor required
• Unique 'chevron-shield' weather bar system deflects wind-driven rain
• Unique 'drainage bar' discharges water and debris from within the vent
• Integral grille bars provide 4mm insect screen

Downloads & Data Sheets:

  Klober Uni-Line Slate Vent Data Sheet
