By Cladco

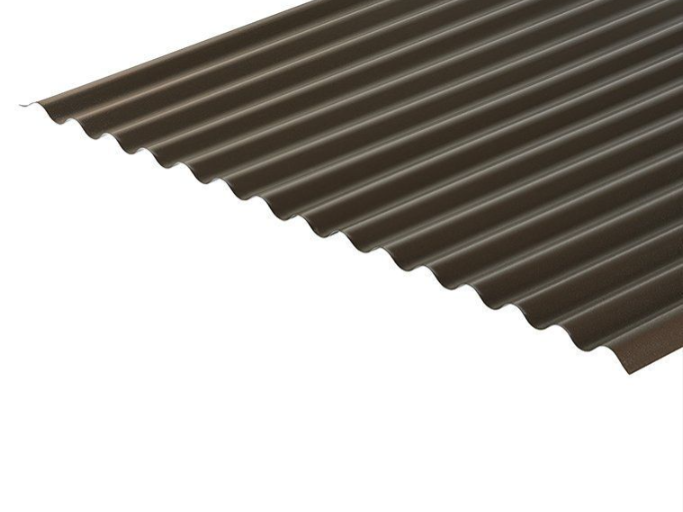

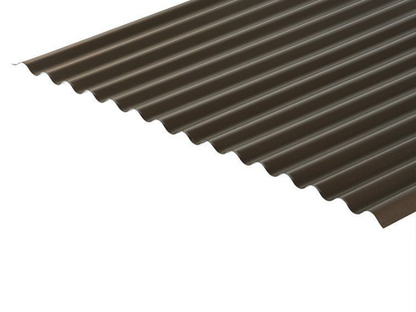

Cladco 13/3 Corrugated 0.7 PVC Plastisol Coated Roof Sheet - Vandyke Brown

Regular price
£23.32 (inc VAT)
£19.43
(ex VAT)
Regular price Sale price
£23.32
Delivery:

Current Delivery: 7 - 10 days

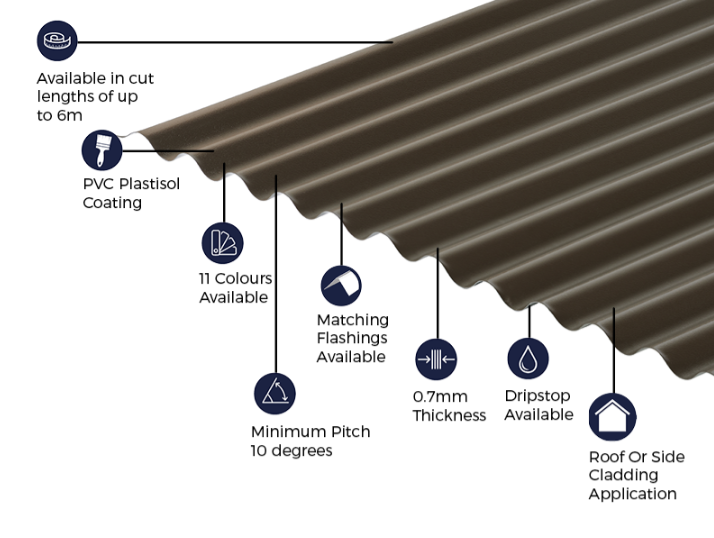

Key Features:
  • Colour: Vandyke Brown
  • External Finish: PVC Plastisol
  • Internal Finish: Light Grey Polyester
  • Material: Galvanised Steel

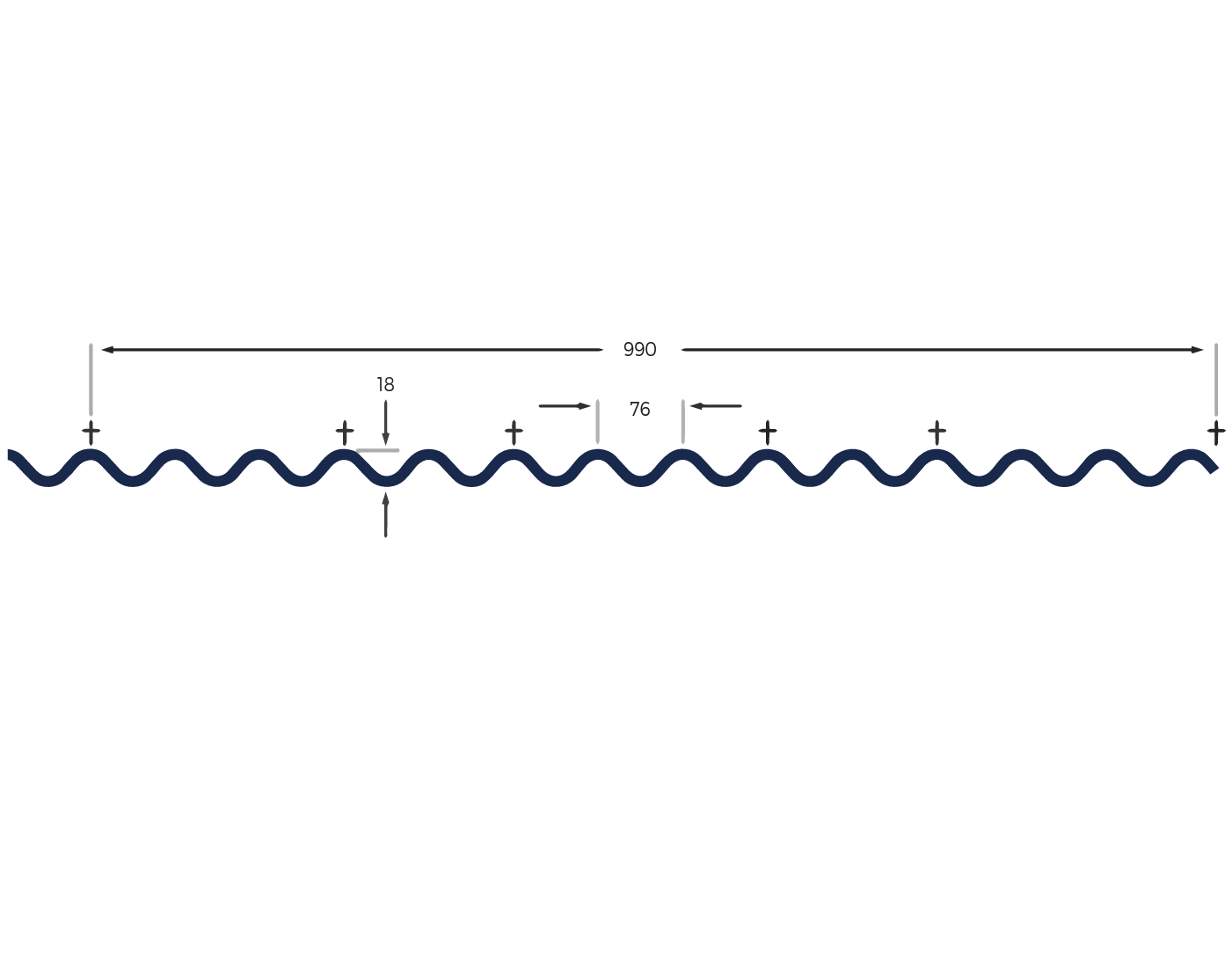

  • External Face: Corrugated 13/3 profile (13 profiles of 3 inches when lapped), 18mm profile height, 76mm pitch
  • Width: 990mm (when lapped)
  • Length: Cut to size 1000mm - 7000mm
  • Gauge thickness: 0.7mm
  • Weight: 6.9kg/m2
  • Application: Wall or Roof
Description:

Cladco 13/3 Corrugated Roofing Sheets with a PVC Plastisol Coat feature 13 corrugations, each 3 inch/76mm. Corrugated Roof Sheets give a total width coverage of 990mm when installed. Galvanised Corrugated Roof Sheets are available in a range of colours and in 0.7mm thickness. Please note, it is recommended to use the 65mm Screws with Baz Washers with these sheets.

Mainly used as roofing on industrial, domestic, commercial and agricultural buildings, these single-skin steel Corrugated Roof Sheets can be used over clad an existing roof, part of an insulated build-up system, or purely as single-skin roofing.

Construction using this type of Corrugated Sheet can be safely undertaken down to a 10-degree pitch using Self-Drilling 65mm Screws with BAZ Washers on the top part of the 13/3 profile. Please refer to our Installation Guide for more information.

PVC Plastisol Coating provides a life typically 15 to 25 year to first maintenance or repaint, with a life in excess of 40 years. This coating also provides a high resistance to scratching and damage.

The lightweight corrugated sheets are easy to fit, making your installation fast and easy. Cladco Corrugated Sheeting is available in a range of colours, thicknesses and finishes and are independently-tested to current CE EN 14782 requirements.


Downloads & Data Sheets:

 Product Data Sheet

 Product Installation Instructions

 Download Choice of Colour

 PVC Plastisol Performance Overview

Product Video:


Read more....
